1/16 din – Watlow EZ-ZONE PM User Manual
Page 13
Watlow EZ-ZONE
®
PM Limit Controller
•
10
•

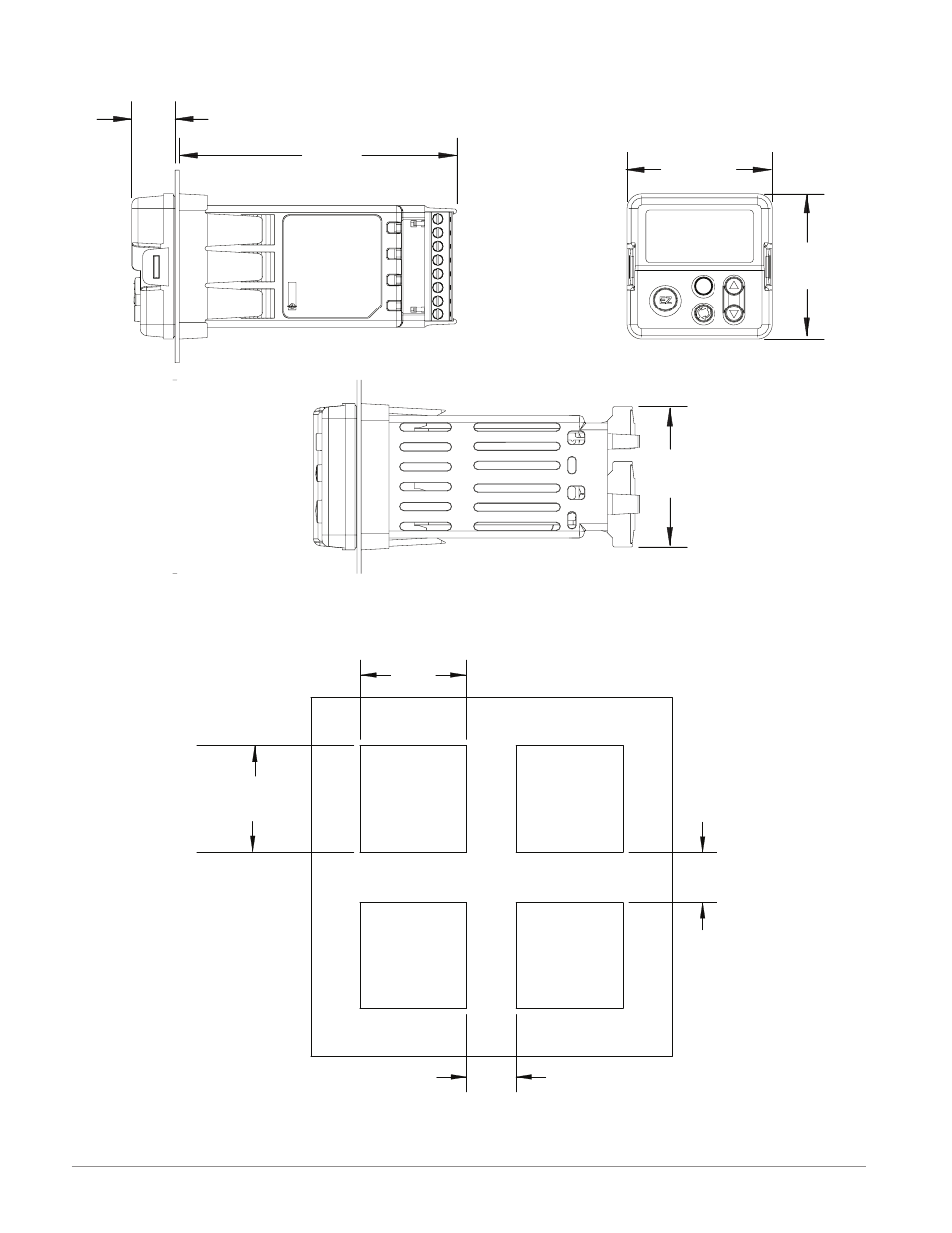

Chapter 2 Install and Wire
15.8 mm
(0.62 in)
101.6 mm
(4.00 in)
53.3 mm
(2.10 in)
53.3 mm
(2.10 in)
51.2 mm
(2.02 in)
Side
Front
Top
RESET
1/16 DIN
Recommended panel spacing
panel thickness 1.53 to 9.52 mm
(0.060 to 0.375)
44.96 to 45.47 mm
(1.77 to 1.79 inches)
44.96 to 45.47 mm
(1.77 to 1.79 inches)
21.6 mm
(0.85 in)
minimum
21.6 mm
(0.85 in)
minimum
