Watlow EZ-ZONE
®
PM Limit Controller
•
11
•
Chapter 2 Install and Wire

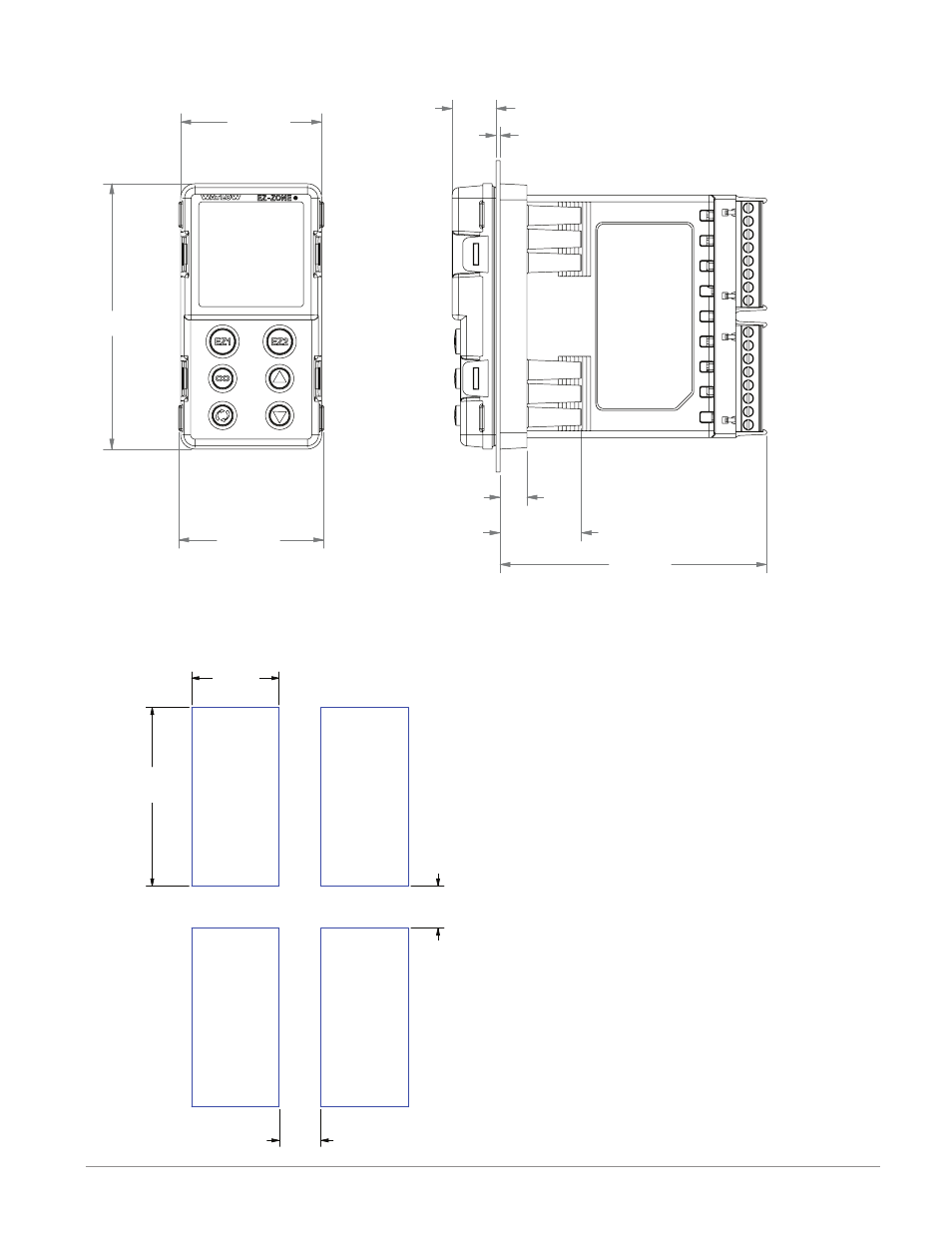

1/8 DIN (PM8) Vertical
(3.95 in)
100.33 mm
(2.16 in)
54.8 mm
(2.10 in)
53.34 mm
(4.00 in)
101.60 mm
(0.62 in)
15.75 mm
(0.06 in)
1.52 mm
(0.40 in)
10.16 mm
(1.21 in)
30.73 mm
1/8 DIN (PM8) Vertical Recommended Panel Spacing
Panel thickness (0.060 in) 1.53 mm
to (0.375 in) 9.52 mm
21.6 mm
(0.85 in)
Minimum
21.6 mm
44.96 to 45.60 mm
(1.77 to 1.79 inches)
92.00 to 92.80 mm
(3.62 to 3.65 inches)
(0.85 in)
Minimum
