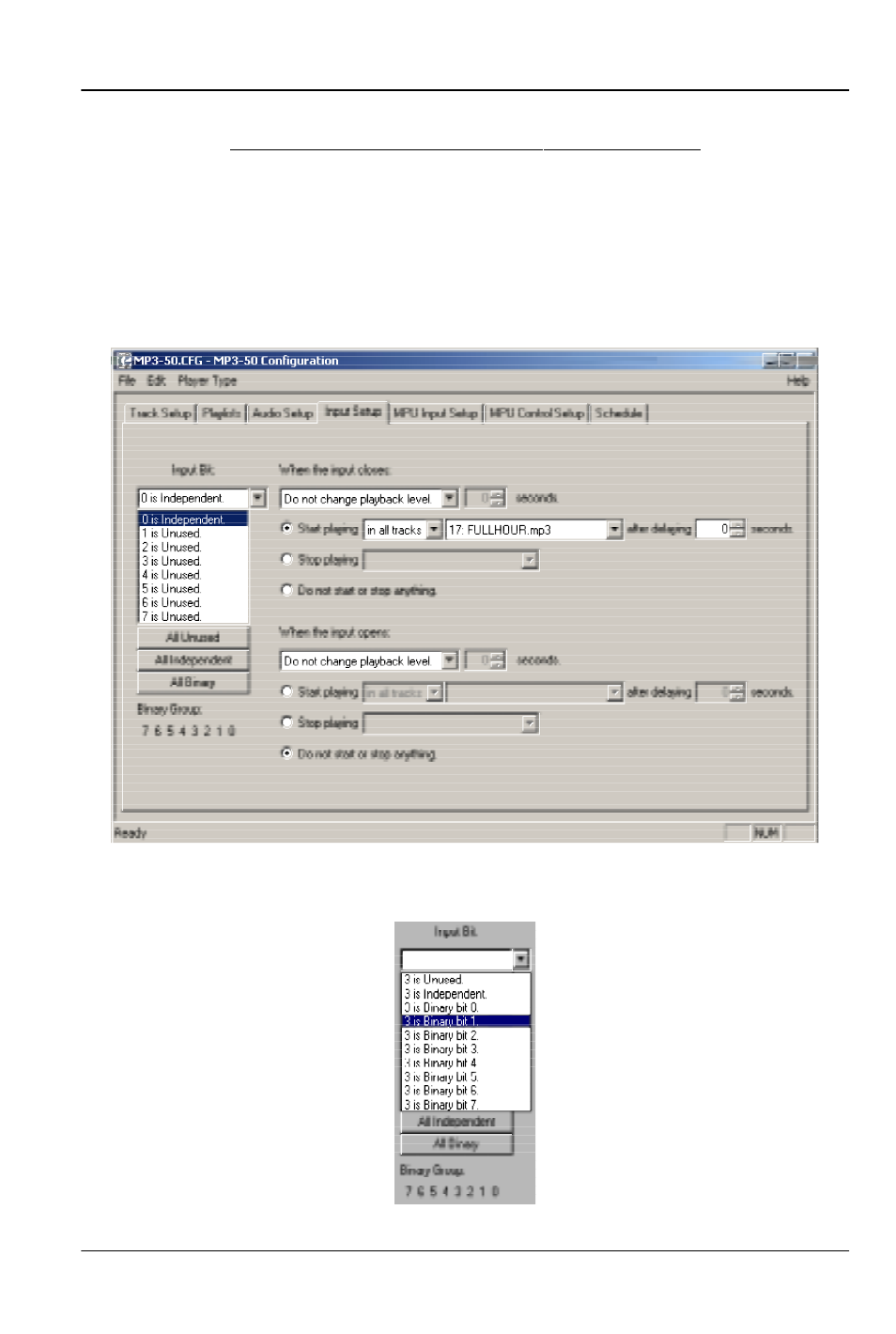

Mp3-50 Configurator: Input Setup
(Mp3-50/8, and Mp3-50/40)
The Mp3-50, Mp3-50/8 or Mp3-50/40 has eight optically isolated trig-
ger inputs that feed directly into the Mp3 Player. If you are using a Mp3-
50/8 or Mp3-50/40, These inputs are shared with eight of the Show Control
outputs. You will probably want to set all of these inputs for ‘Unused’, and
use the trigger inputs from the MPU instead.
You can set any of the eight inputs as unused, an independent control,
or part of a binary address:
