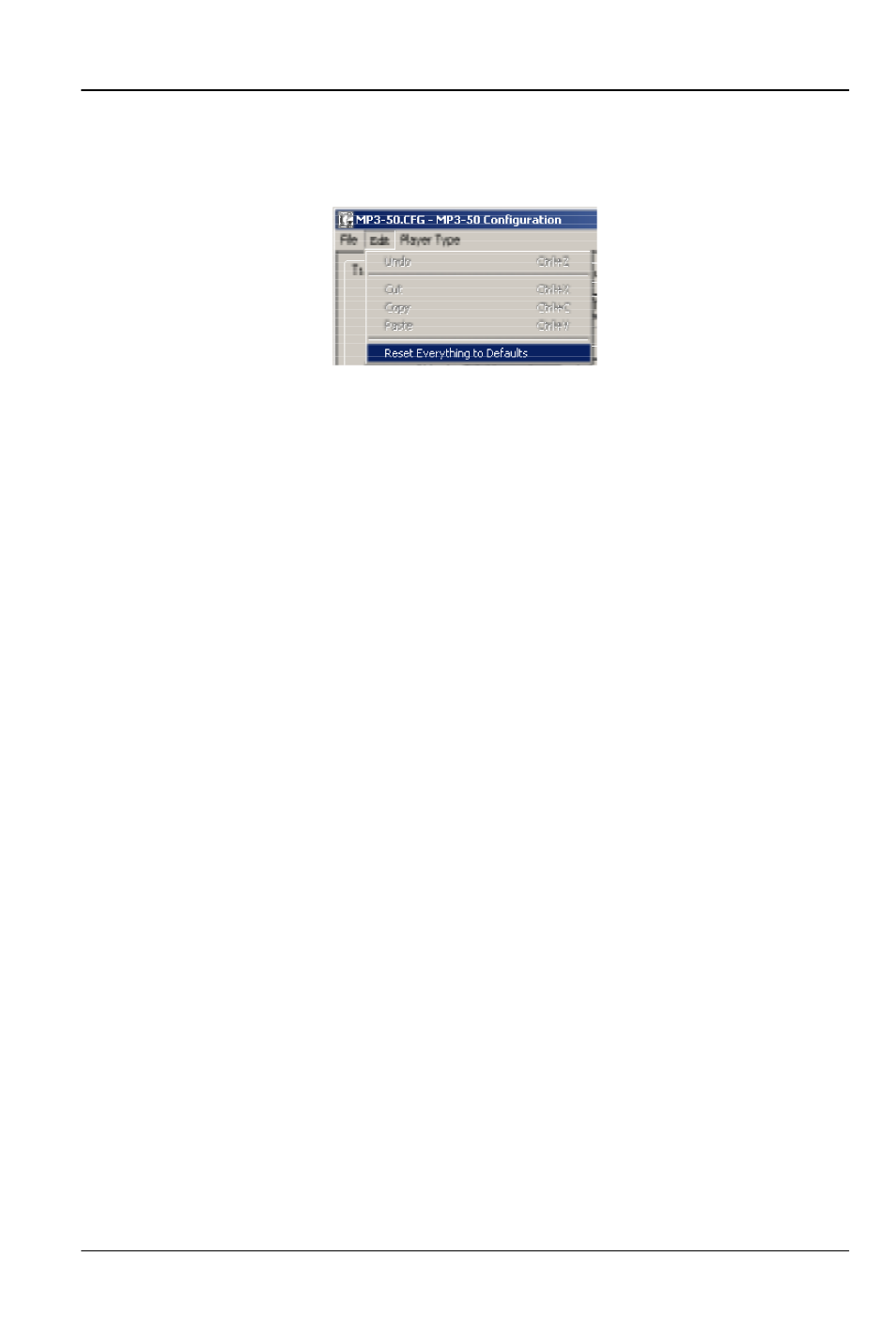

need and more. Once you have selected the player type, reset the config-
uration to defaults using the ‘Reset Everything’ command under the ‘Edit’
pulldown:
The default settings are as follows:
Mp3-50 (audio only): Volume to defaults. All sounds do nothing at end.
Play lists unused. Amplifier Enabled. STMP Opto Inputs set as following:
a) 1-8 audio tracks in the Mp3 folder: Bit 0=SoundFile 1, Bit
1=SoundFile 2, Bit 2=SoundFile 3, Bit 3=SoundFile 4, Bit
4=SoundFile 5, Bit 5=SoundFile 6, Bit 6=SoundFile 7, Bit
7=SoundFile 8. If seven or less SoundFiles are found, then bit 7
becomes Stop. If six or less SoundFiles are found, then bit 6 be-
comes full mute in 1 sec. on closing. If five or less SoundFiles are
found, then bit 5 becomes half mute in 1 sec. on closing. If four
or less SoundFiles are found, then bit 4 becomes unmute in 1
sec. on closing.
b) 9+ audio tracks in the folder: Bits 0-? are used to binary address
the available SoundFiles. If 127 or less SoundFiles are found, then
bit 7 becomes Stop. If 63 or less SoundFiles are found, then bit 6
becomes full mute in 1 sec. on closing. If 31 or less SoundFiles
are found, then bit 5 becomes half mute in 1 sec. on closing. If
15 or less SoundFiles are found, then bit 4 becomes unmute in 1
sec. on closing.
Mp3-50/8: Serial address to 00h, First animation output at 00h, MPU trig-
gers at 01h, Volume left @ 02h (but disabled), Volume right @ 03h (but dis-
abled), DMX Rx Enabled, AutoDownload next time, auto Download on every
boot, Flash enabled, DMX Checksum Enabled, All STMP opto inputs DIS-
ABLED, all MCU inputs set as following:
a) 1-8 audio tracks in the Mp3 folder: Bit 0=SoundFile 1, Bit
1=SoundFile 2, Bit 2=SoundFile 3, Bit 3=SoundFile 4, Bit
4=SoundFile 5, Bit 5=SoundFile 6, Bit 6=SoundFile 7, Bit
7=SoundFile 8. If seven or less SoundFiles are found, then bit 7
becomes Stop. If six or less SoundFiles are found, then bit 6 be-
comes full mute in 1 sec. on closing. If five or less SoundFiles are
found, then bit 5 becomes half mute in 1 sec. on closing. If four
