Logic Functions - Book 2
TIMER BLOCK
8-60
8.7.3 Time Values
All millisecond time values are entered as hours, minutes, seconds, and milliseconds. A time
of 1 hour, 17 minutes and 23 seconds would be entered as 01:17:23.000. The maximum time
value that can be entered is 1193 hours, 2 minutes and 47.295 seconds.

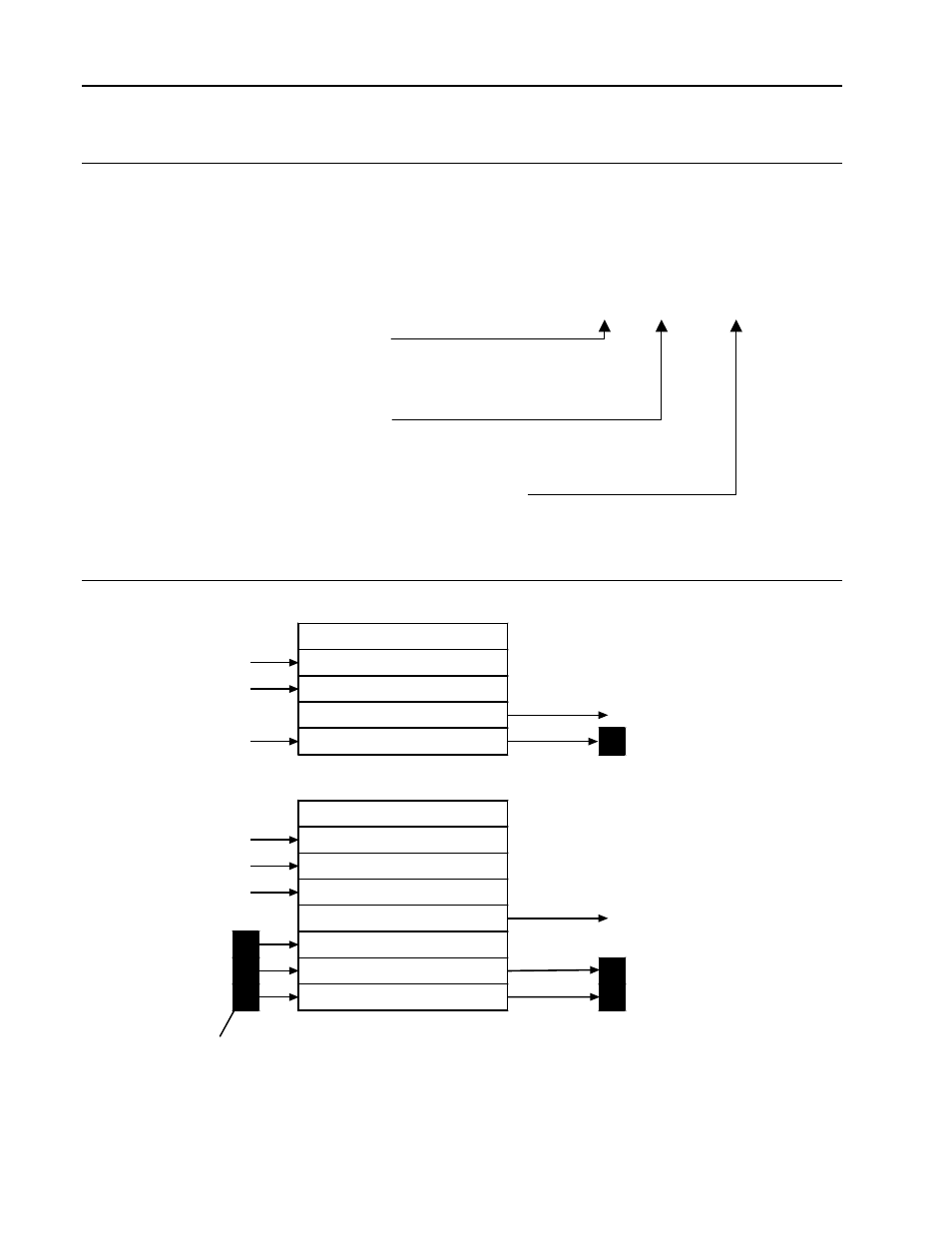

Typical Entry of Time Value
Time value 01: 17: 23.000
Hours
Value can be set between
0 and 1193 hours
Minutes
Value can be set between
0 and 59 minutes
Seconds.milliseconds
Value can be set between 0 and 59 seconds
and in 1 millisecond intervals
8.7.4 Typical Softwiring Block Structures for Timer Block
Typical softwiring block structures used on softwiring diagrams are shown in Figure 8-31.
TIME
HILIM
TIME
HLSTAT
TM1
Reset
Disable
High Limit Status
Time
Discrete Output to
Another Function Block
Operator Indication of time
HLSTAT
Disable
Reset Value
Reset
High Limit Status
Reset Command
Operator Access to Reset Command, Time, and High Limit
Discrete Output to
Another Function Block
Operator Indication of
Time, and High Limit Time
High Limit
TM2
Figure 8-31. Typical Softwiring Block Structures for Timer Block
