Logic Functions - Book 2
Totalizer Block
8-95

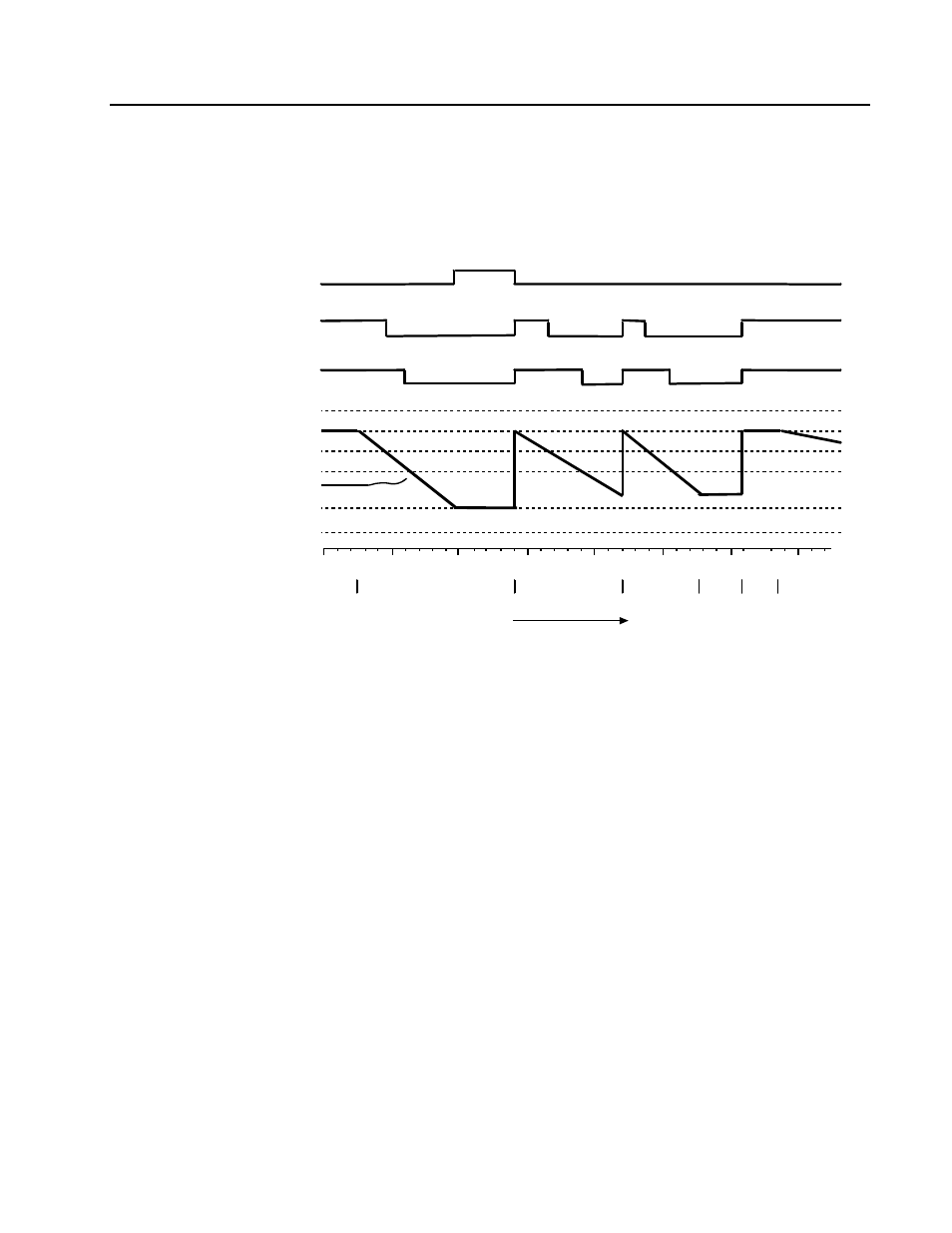

Totalizer Block Timing Diagram, Figure 8-54, DIRECTION = DOWN, AUTO WRAP = NO
The totalizer will count down until it reaches the low limit. The low limit status will be set
TRUE. The count will remain at the low limit until a reset occurs at which time the count will be
reset to the high limit. The low limit status will be set to FALSE.
Figure 8-54. Totalizer Block Timing Diagram, DIRECTION = DOWN, AUTO WRAP = NO
Time
0 30 25 20 15 10 5 35
TRUE
FALSE
Low Limit Status
Direction = DOWN, Auto Wrap = NO
Predetermined
Count 1 Status
Predetermined
Count 2 Status
Maximum Count = 9999999.0
Minimum Count = 0.0
Low Limit
High Limit
Predetermined Count 1
Predetermined Count 2
Totalized Count
Run Reset Reset Hold Stop Run
TRUE
FALSE
TRUE
FALSE
