Logic Functions - Book 2
CONFIGURING THE SEQUENCE BLOCK
11-1
SECTION 11
CONFIGURING THE SEQUENCE BLOCK
11.1 GENERAL
Configuring a batch application is easier than ever with the Visual Application Designer
(Vi
Zapp) Software. Comprehensive ViZapp user information is available in the ViZapp help
files (vizapp.hlp) and the ViZapp Tutorial (IB-VIZAPP-TUT). A simple batch process
application has been chosen as an example because of the virtually limitless numbers of
different configurations possible. The application example includes a description of the
required sequence, and a series of detailed step-by-step procedures covering each phase of
the configuration process.
11.2 APPLICATION EXAMPLE
This process application example requires that batches of product be cooked for a specified
time at a controlled temperature. The piping and instrument diagram for this process is shown
in Figure 11-1. The kettle is periodically filled with raw product, brought to the required cook
temperature, held for the specified time, then drained of the finished product.
Drain Valve
TE
LSH
LSL
Fill Valve

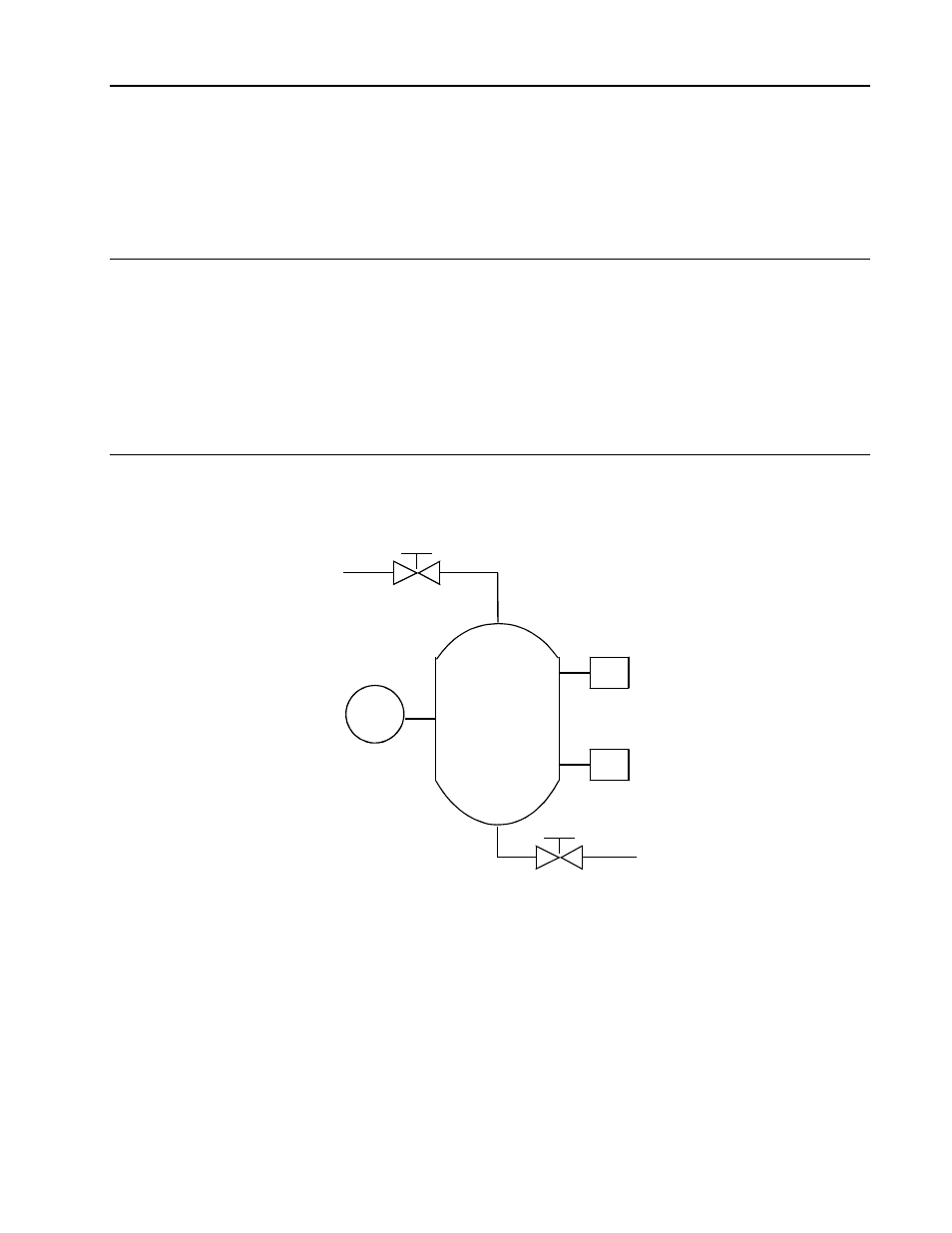

Figure 11-1. Piping and Instrument Diagram for the Application Example
