Logic Functions - Book 2
OUTPUT COMMUNICATION BLOCK
8-25
8.4 OUTPUT COMMUNICATION BLOCK (OC)
The output communication block is used to transmit data to an input communication block, or
input communication block channel for MOD 30 controllers and recorders, of other
instruments on the ICN via communication messages. The block specifies the data
destination, data type, and whether quality is to be sent with the data. It also has the
capability of sending MOD30 data types by converting the data from a MODCELL data type;
for example, floating point may be input and continuous sent.
Block outputs are result and result quality. A functional block diagram of an output
communication block is shown in Figure 8-12. The displays used to configure the Output
Communication block is shown in Figures 8-13 and 8-14.
ASCII or HEX
MANUAL
Local Value
LSP NONE
Input Data Quality
AUTO
Bad Inputs
Accepted
(YES)
BAD
GOOD
Quality Check
State (RUN,
HOLD, OFF,
DEBUG)
Send
Quality
Data
Destination
Port
Number
Occurrence
Number
Instrument
Number
Floating Pt
Top Bottom
Maximum
Field Size
(1-126)
Range
OR
All Others
Data
Type
MANUAL
GOOD
AUTO
Input
Result
Quality
Lock
Unlock
Mode
NO
YES
Lock
Unlock
Result
Comm Lock
(IF Block)

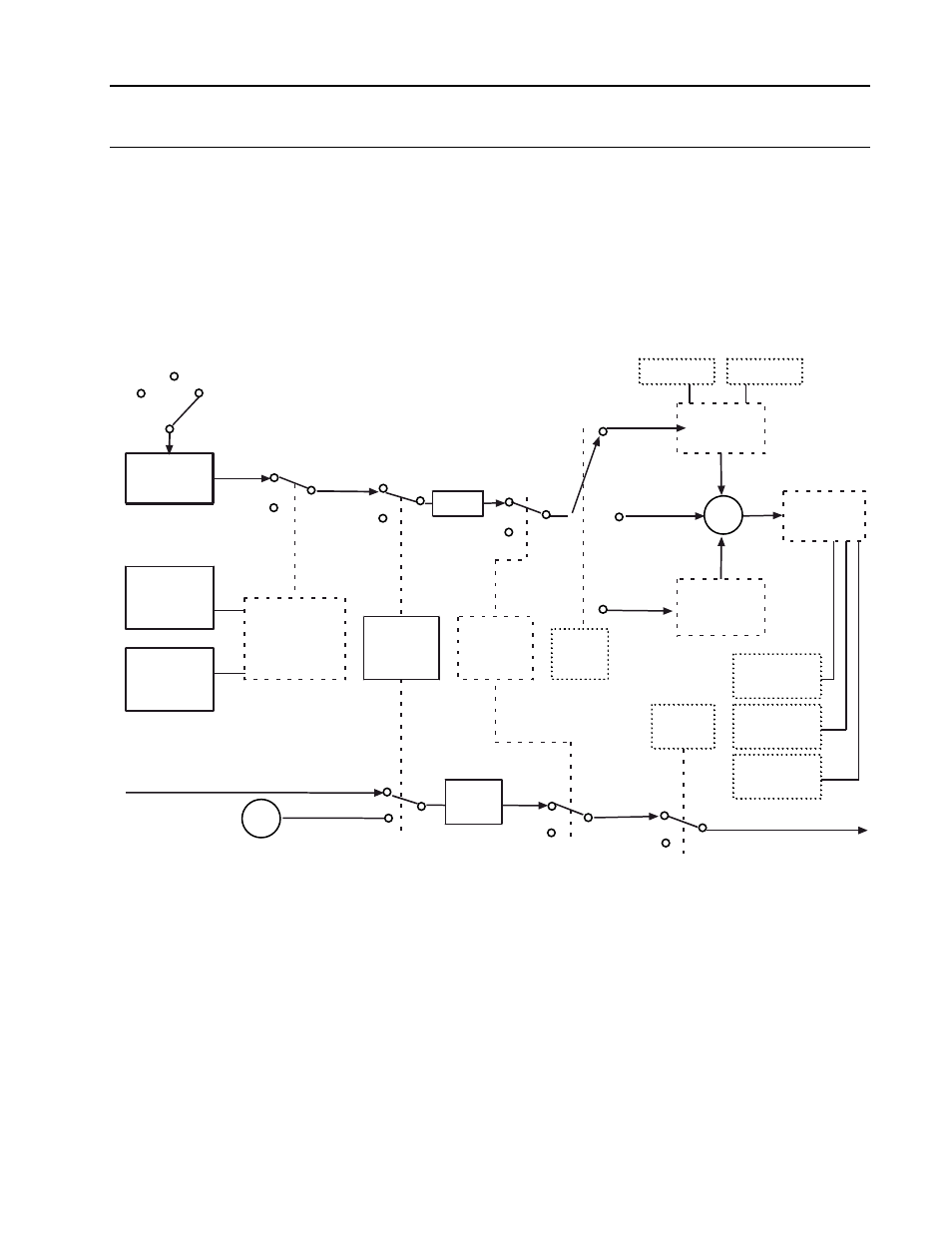

Figure 8-12. Functional Block Diagram, Output Communication Block
