Logic Functions - Book 2

LINEARIZATION BLOCK

8-41

Output Range Desired? ....................................................................................................C – –
If the linearization type is linear, square, mod square, square root, or mod sqrt, output ranges
may be configured. The ranges must be configured in pairs. If a range pair is not present, the
default values are 1.0 for high and 0.0 for low.

NO

0

Configured output ranges are not desired. Default values are set.
The output range attributes are not loaded into the database.

YES

1

Configured output ranges is desired. The output range attributes are
loaded into the database and are readable and writeable.

19

Output Range, Bottom (OUTLO) ......................................................................................CWR
value

Fixed Floating-Point low value of output range for normalization of the
output value.

20

Output Range, Top (OUTHI) .............................................................................................CWR
value

Fixed Floating-Point high value of output range for normalization of
the output value.

8.5.3

Typical Softwiring Block Structures for Linearization Block

Typical softwiring block structures used on softwiring diagrams are shown in Figure 8-20.

TABLE

INPUT

INPUT

STATE

R

Input

LN1

Result

Floating Point Output to
Another Function Block

R

LN1

Piecewise Table

Input

Result

State

Operator Access to Change State

Floating Point Output to
Another Function Block

Operator indication of state change.

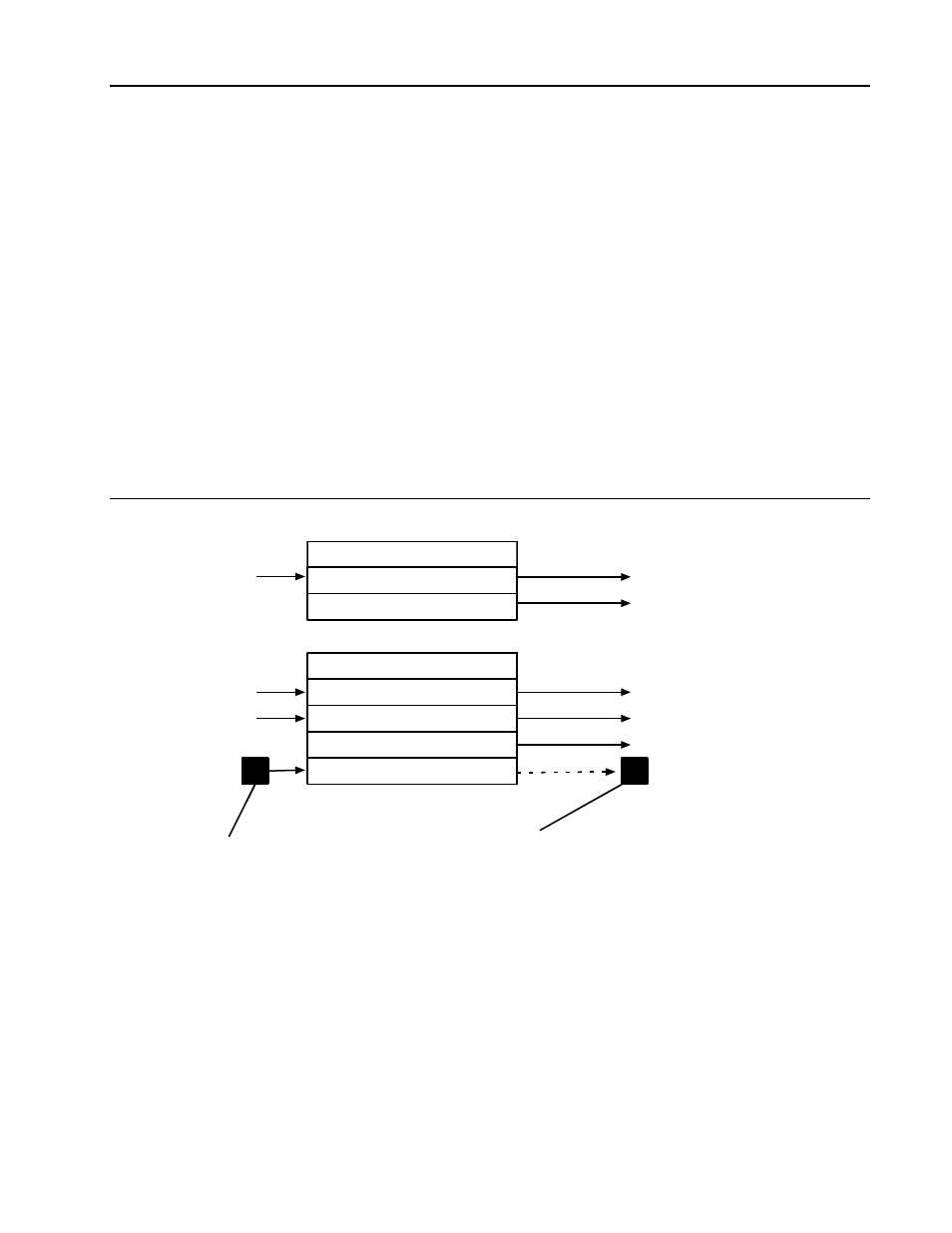

Figure 8-20. Typical Softwiring Block Structures for Linearization Block
