Logic Functions - Book 2
LINEARIZATION BLOCK
8-42
8.5.4 Using the Linearization Block
The example in Figure 8-21 shows a typical use of a Linearization Block. The analog input
signal is from a differential pressure transmitter measuring flow. The type field of the
linearization block is set at MOD SQRT. The block extracts the modified square root of the
continuous signal from the transmitter.
R
R
MODE
TCTYPE
RQ
ACTION
INTYPE
R
LN1
Input
Linearized Output to
Another Function Block
VCIM1
Input Type
TC Type
Mode VCI1
Result
Filter Time
Action
Result
Input Value
Result Quality
1-1
1-2

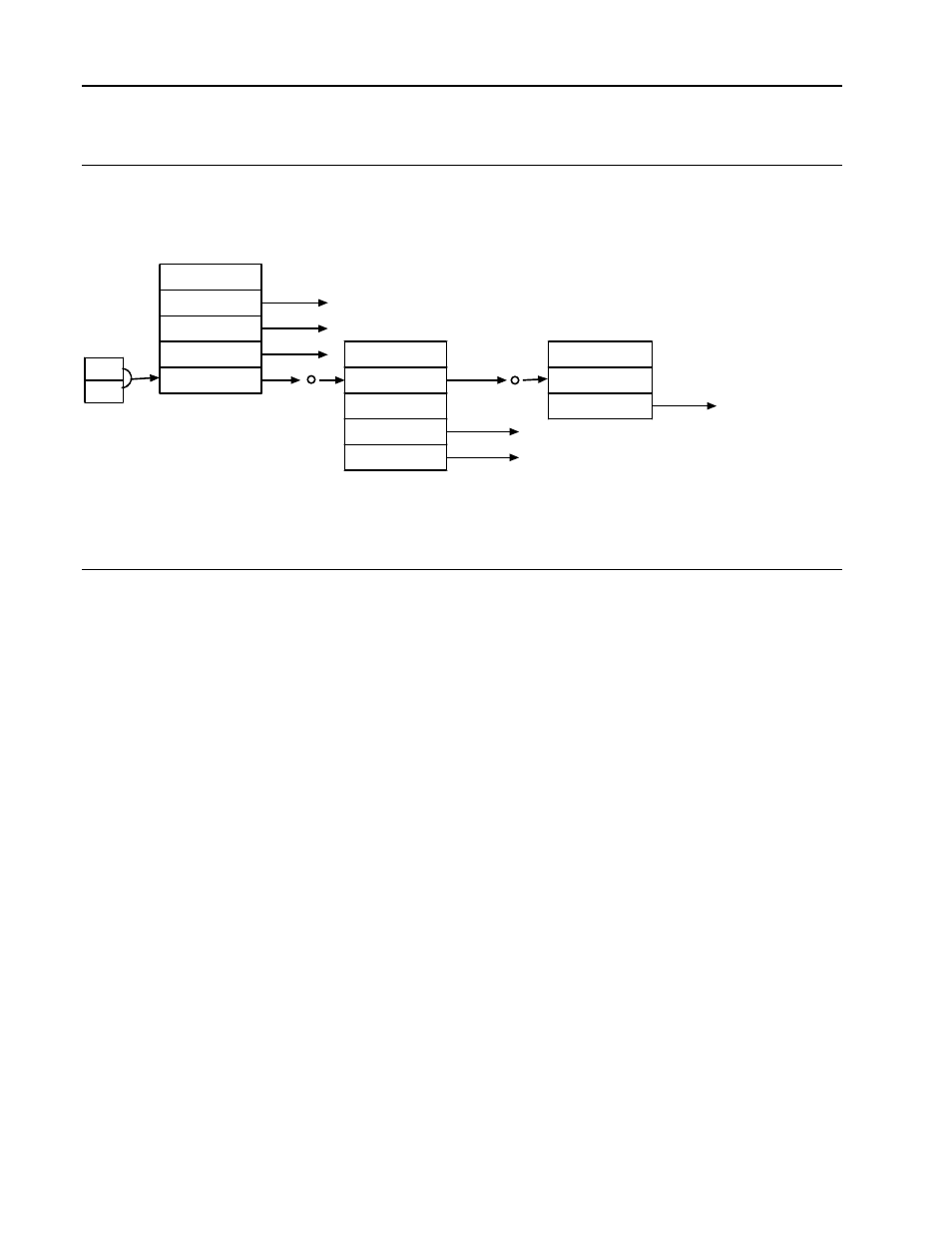

Figure 8-21. Softwiring Drawing for Linearization Block, Example
8.5.5 Linearization Block Events
The event codes (and their suggested text messages) for the linearization block are given
below. See the referenced data base attributes (in brackets) for additional information. See
System Event Block, Logic - Functions - Book 1, IB-23G600 for a description of event
transitions.
0 BLOCK STATE SET TO RUN
1 BLOCK STATE SET TO HOLD
2 BLOCK STATE SET TO OFF
3 BLOCK STATE SET TO DEBUG
4 CALCULATION ERROR (5)
