Logic Functions - Book 2
Totalizer Block
8-96

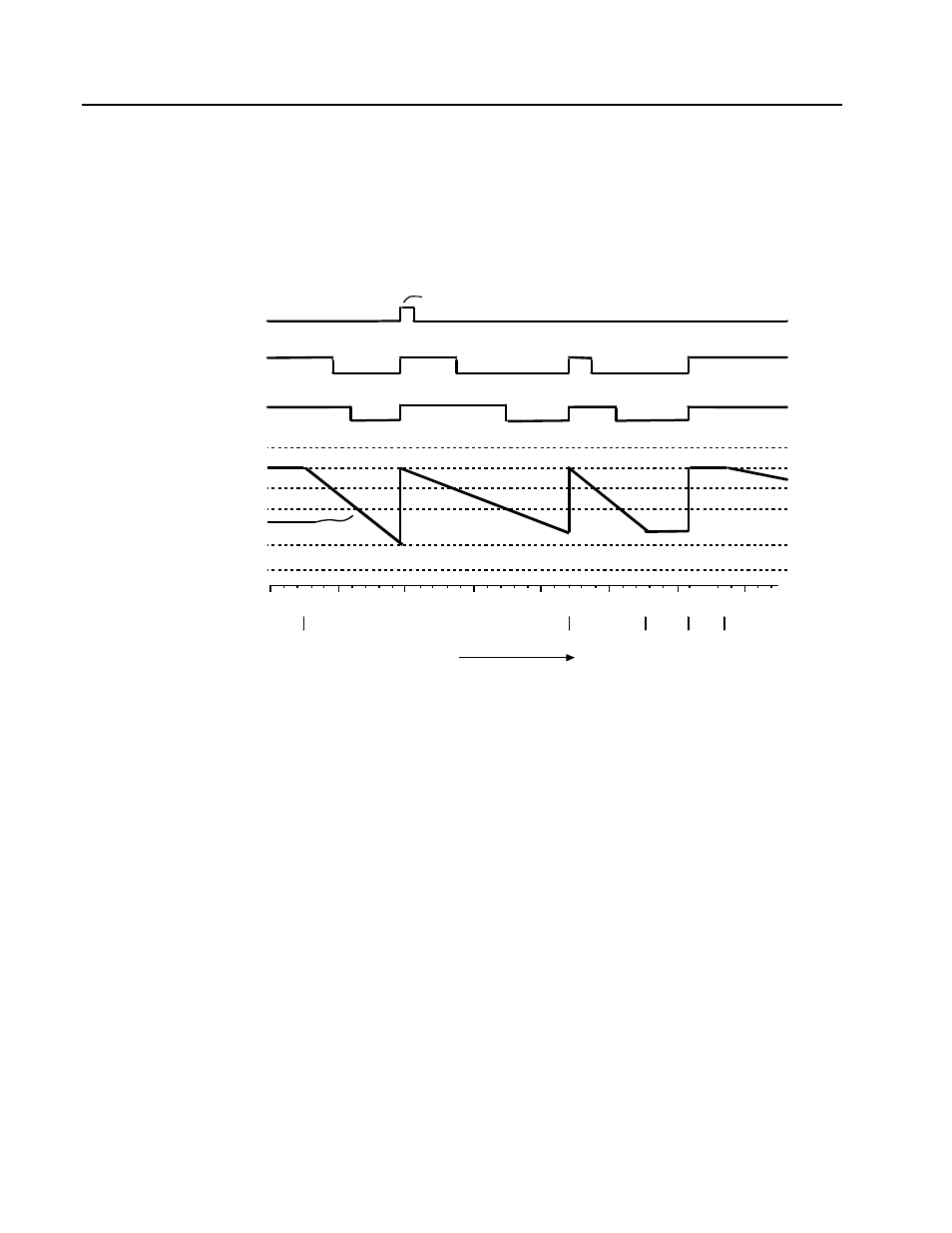

Totalizer Block Timing Diagram, Figure 8-55, DIRECTION = DOWN, AUTO WRAP = YES
The totalizer will count down until the count value is equal to or less than the low limit. The low
limit status will be set TRUE. When the count is enough to exceed the low limit it will wrap to
the high limit value minus any carry over less than the low limit. The low limit status will remain
TRUE while the count is at the low limit. When the count wraps to the high limit the low limit
status will remain TRUE until the next time this block executes.
Time
0 30 25 20 15 10 5 35
Low Limit Status
Direction = DOWN, Auto Wrap = YES
Predetermined
Count 1 Status
Predetermined
Count 2 Status
Maximum Count = 9999999.0
Minimum Count = 0.0
Low Limit
High Limit
Predetermined Count 1
Predetermined Count 2
Totalized Count
Run Reset Hold Stop Run
One Cycle
TRUE
FALSE
TRUE
FALSE
TRUE
FALSE
Figure 8-55. Totalizer Block Timing Diagram, DIRECTION = DOWN, AUTO WRAP = YES
