Luminex 100 IS Version 2.2 - Manual (Page 66)

Luminex 100 IS Developer Guide to x MAP Technology Version 2.2 x MAP Technology
60 PN 89-00002-00-032 Rev. A
Template
Maintenance
The Luminex 100 IS system allows you to edit and delete existing
templates.
Note: If a batch is associated with a template, then the template ID is
shown in light blue. You can only edit these templates if they are
given a new template name. We also recommend assigning a new
version number to the template. You can only delete these templates
if the associated batches are deleted first.
You can also print directly from this screen if desired. Just select the
template and click the Print button. Follow the on screen dialogs.
Edit an Unused Template
(No Associated Batches) ‹ To edit existing templates that do not have batches associated:
1. Click Edit Template from the toolbar. An Open Template
dialog box appears. See Figure 45.

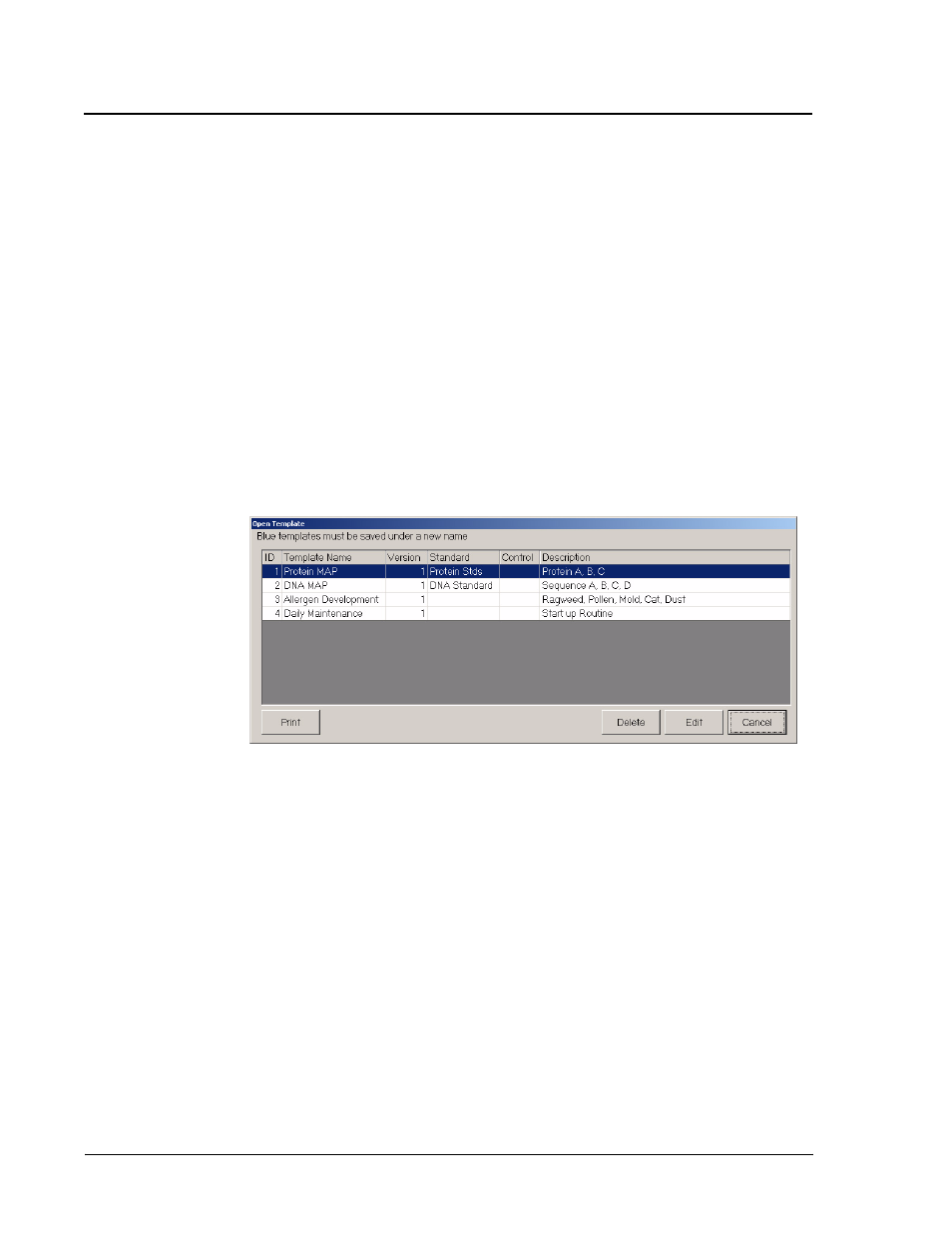

Figure 45. Open Template Dialog Box—Select an Unused
Template to Edit
2. Select the template to edit (the template ID cell is white) and
click Edit. The Template Setup Wizard dialog box appears
showing the template that you selected. See Figure 46.
Note: If the template has a blue field, you should assign a new
name and version number.
