Use formula as is: The Lum Qual Ki (Quali) values should be
entered in lot information as “1”, while the “Ki” (Quali) value
for the Adv Lum Qual should be entered as “20” to correspond
to the example’s default value and ranges. See Table 10 on
page 52.
Edit Formula: To edit, select/highlight Adv Qual Formula
under Qualitative Analysis Method of the Template Setup
Wizard. See Figure 36. Select the Edit Formula button. The
Range Editor dialog box appears displaying the current values
for the selected formula. See Figure 33. You can add a new
range, edit an existing range, or delete a range. When you add a
new range set it clears the existing ranges.

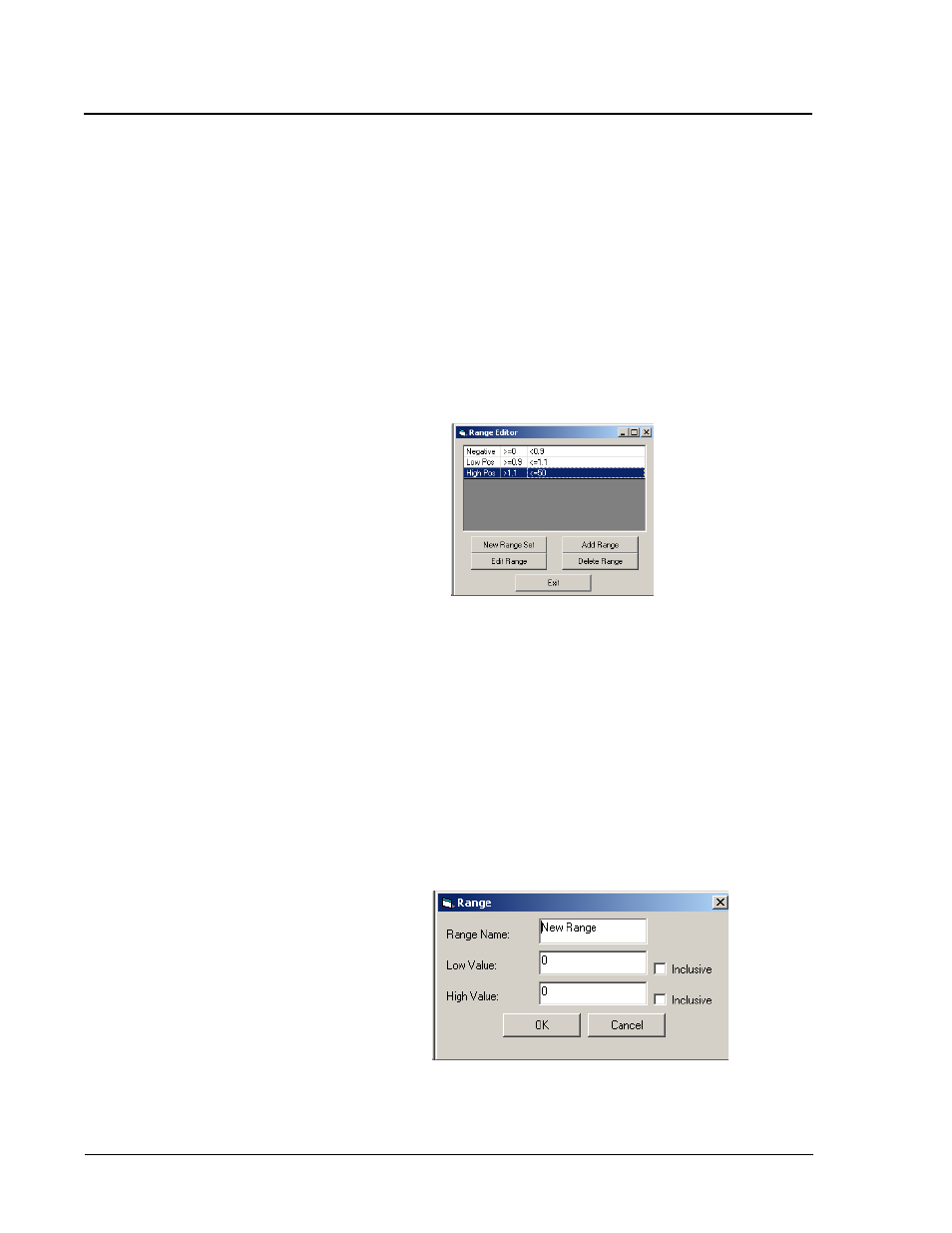

Figure 33. Range Edit Dialog Box
Example: To set up a qualitative formula using ranges 0 to 25
for non-reactive and 25 to 75 as reactive.
a. Select Adv Qual Formula, then select Edit Formula. The
Range Edit dialog box appears. See Figure 33.
b. Select New Range Set from the Range Editor dialog box. You
are prompted to name this formula.
c. Type in the formula name and select OK. The Range Edit
dialog box clears of the default range sets.
d. Select Add Range. The Range dialog box appears. See
Figure 34.
Figure 34. Range Dialog Box
