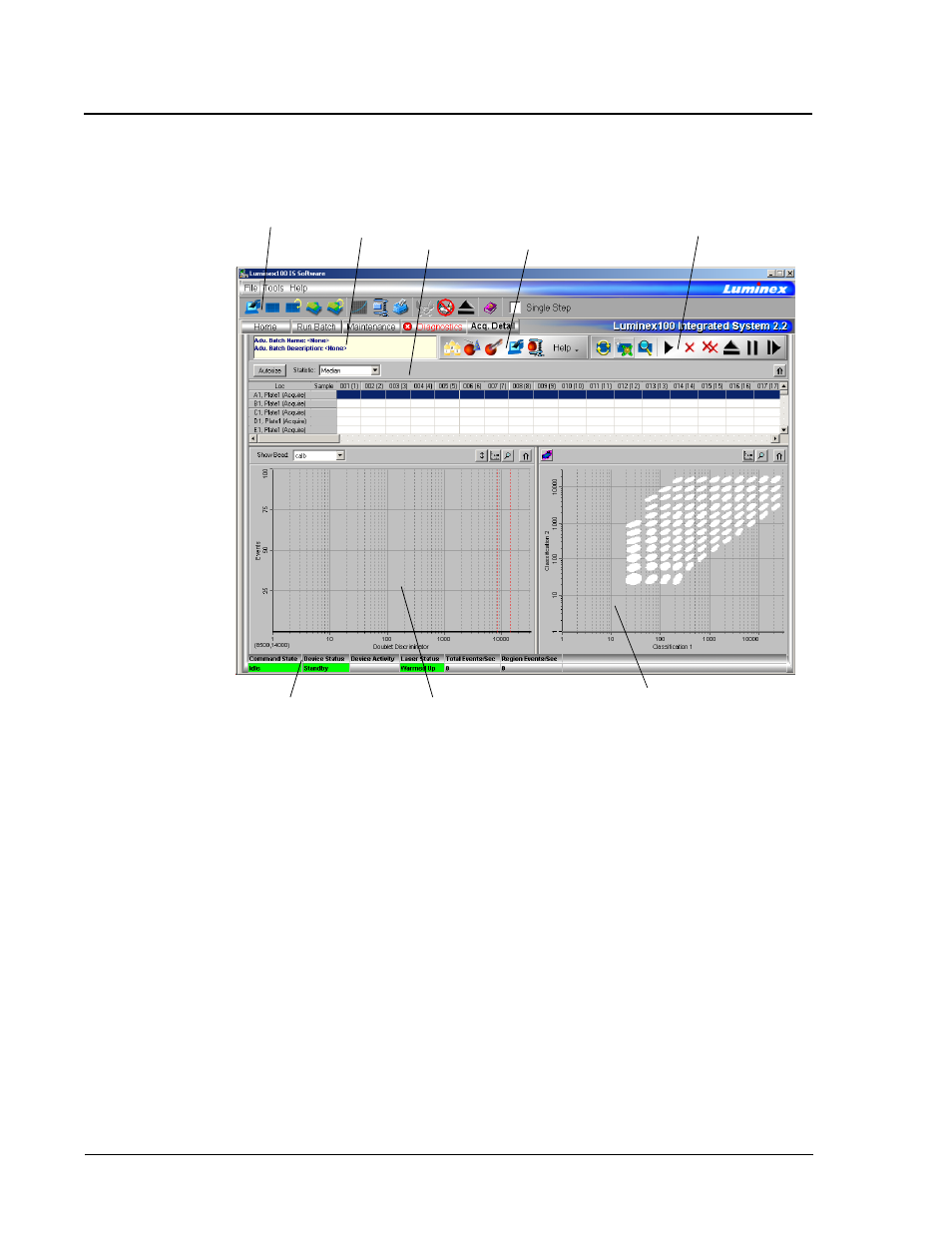

Figure 1. Acquisition Detail Tab
Acquisition Detail Toolbar
Acquisition Detail Tab displays the progress of sample acquisition
and analysis as the system collects data from the sample. The detail
presents the information in different formats, including a batch data
table, histogram, and dot plot display. You perform different
activities, such as New Advanced Batch and View Batch Data,
through commands you select on the Acquisition Detail Toolbar. See
Figure 2 and the following command descriptions.
DWB Toolbar. DWB
Software must be installed
to display toolbar.
Dot Plot
Histogram Status Bar
Batch Data
Table and
Buttons Acquisition Detail
Toolbar.
IS Toolbar Batch Name and
Description
field
