Assay Standards
‹ To create a product that consists of only standards:
1. Click Create New Product on the Developer Workbench
toolbar. The Create New Products dialog box appears with a list
of current products. See Figure 20.
Note: When the system is started for the first time, the New
button is grayed out. At this point, the system is ready for entry
of a new product.

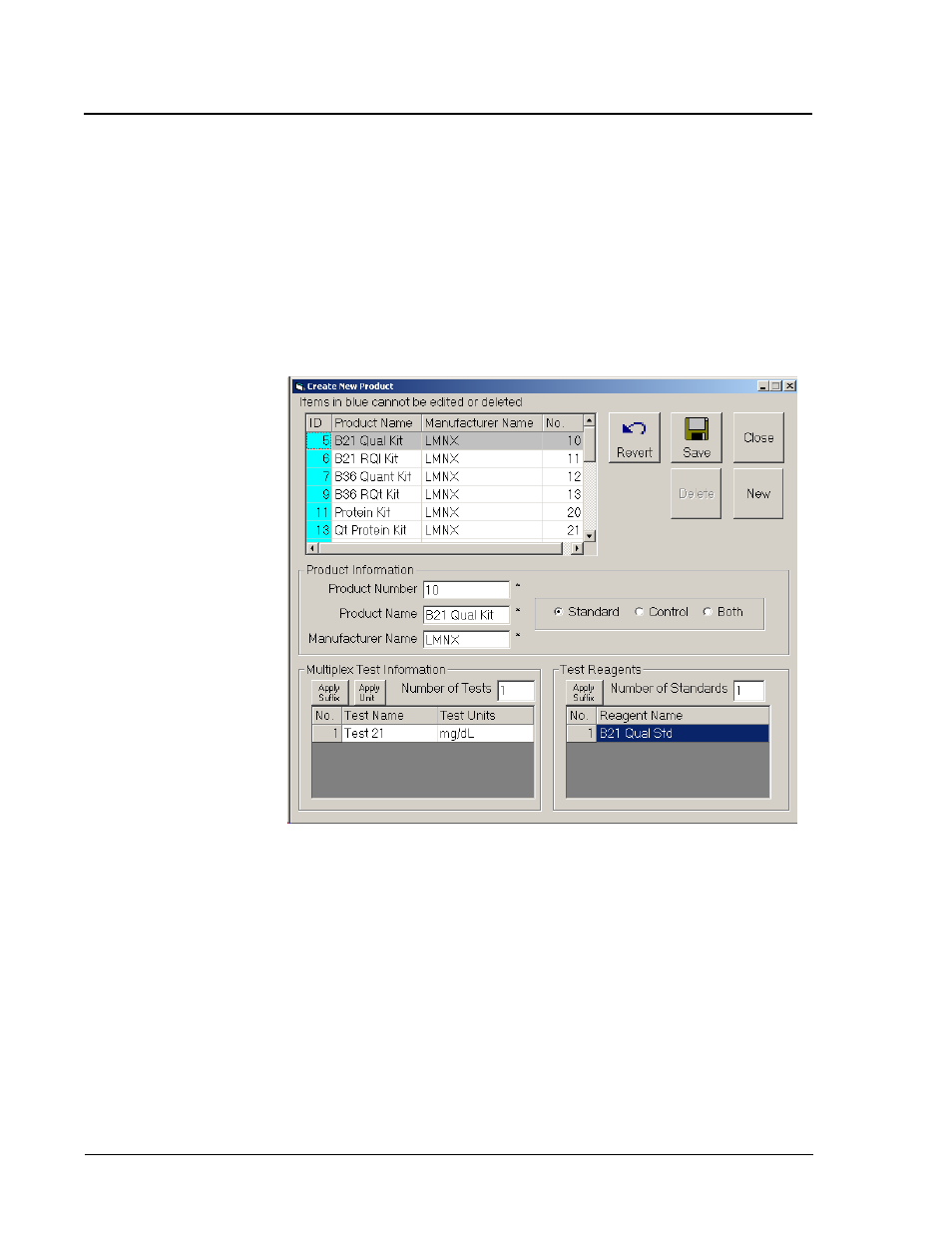

Figure 20. Create New Product Dialog Box
2. Click New to enter a new product into the system. You do not
need to press the New button for the first use. See Figure 20.
3. Select Standard.
4. Enter the Product Number, Product Name, and Manufacturer
Name for the product you are creating.
5. Enter the Number of Tests for this product and press Enter key.
Each test represents an analyte (the bead ID for each test is
selected when you create the template using this product).
