MD 5.1
88 System 6000 MKII Algorithms
Attack
Range: 0.3 to 100 ms
Sets the time it takes for the Expander to reach
the attenuation specified by the Ratio param-
eter when the signal drops below the Threshold
point.
Meter Zoom
Press Zoom to decrease meter range and have a
more accurate metering.
Bypass Exp.
Press to bypass the Expander section of the
MD 5.1 algorithm.
MD 5.1 algorithm –
expander – All LFE page

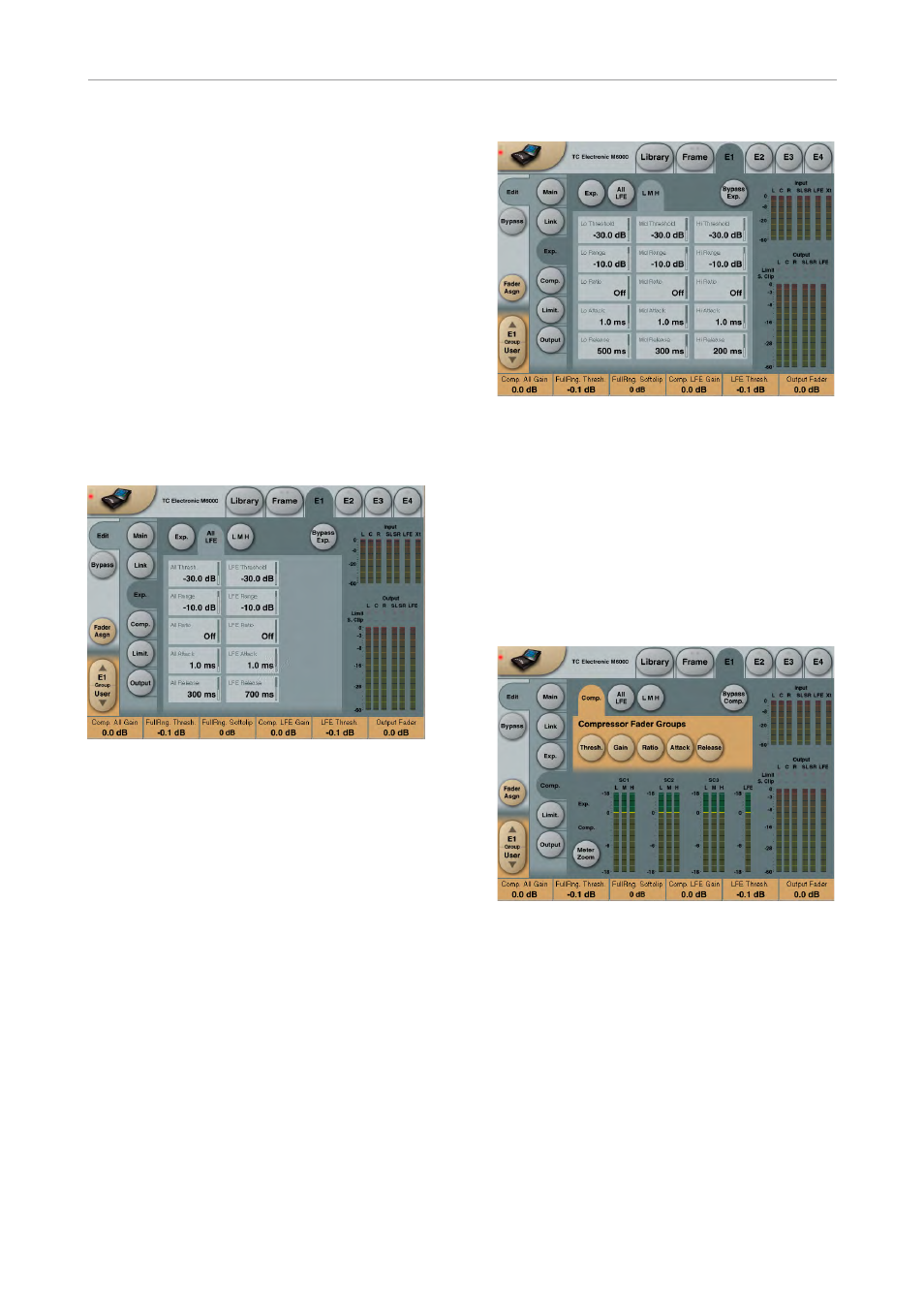

MD 5.1 algorithm – expander – All LFE page
Pressing any parameter will assign this to Fader
6.
All parameters
These parameters are equivalent to the “All” –
Threshold, Range, Ratio, Attack and Release
parameters.
LFE parameters
These parameters are equivalent to the “LFE”
– Threshold, Range, Ratio, Attack and Release
parameters.
MD 5.1 algorithm – expander
– All LMH page
MD 5.1 algorithm – expander – All LMH page
Pressing any parameter will assign this to Fader
6.
This page holds all Expander Threshold, Range,
Ratio, Attack and Release parameters for the Lo,
Mid and Hi bands.
MD 5.1 algorithm –
compressor – comp page
MD 5.1 algorithm – compressor – comp page
Pressing Threshold, Range, Ratio, Attack and
Release keys will immediately assign Lo, Mid,
Hi, All and LFE values for these parameters to
Faders 1 to 4. Be aware that the range of the All
parameter is relative to the settings of the same
parameters in the Expander section.
Threshold
Range: -25 dB to 20 dB (in 0.5 dB steps)
Sets the Threshold level at which the Compres-
sor starts to operate. The Threshold parameter
relates to the Reference Level setting.
