MD-3
English Manual 97
Range – Hi band: 20 Hz to 40 kHz
Gain
Press Gain and use Faders 1 to 4 to adjust gain
for each of the four EQ bands.
Range for the Parametric, Shelve and Cut type:
– Lo Gain: -12 dB to +12 dB
– Mid1 Gain: -12 dB to +12 dB
– Mid2 Gain: -12 dB to +12 dB
– Hi Gain: -12 dB to +12 dB
Range for the Notch filter:
– Lo Gain: -100 dB to 0 dB
– Mid1 Gain: -100 dB to 0 dB
– Mid2 Gain: -100 dB to 0 dB
– Hi Gain: -100 dB to 0 dB
Type
Press and use Faders 1 to 4 to set BW value for
each of the 4 EQ bands.
Range for the Notch filter:
– Lo BW: 0.02 to 1 oct
– Mid1 BW: 0.02 to 1 oct
– Mid2 BW: 0.02 to 1 oct
– Hi BW: 0.02 to 1 oct
Range for the Parametric filter:
– Lo BW: 0.1 to 4 oct
– Mid1 BW: 0.1 to 4 oct
– Mid2 BW: 0.1 to 4 oct
– Hi BW: 0.1 to 4 oct
Range for the Shelve filter:
– Lo BW: 3 to 12 dB/oct
– Hi BW: 3 to 12 dB/oct
– Range for the Cut filter:
– Lo BW: Bessel or Butterworth
– Hi BW: Bessel or Butterworth
Bandwidth/Q – Key-Values:
BW Q
0.5 2.87
0.7 2.04
1.0 1.41

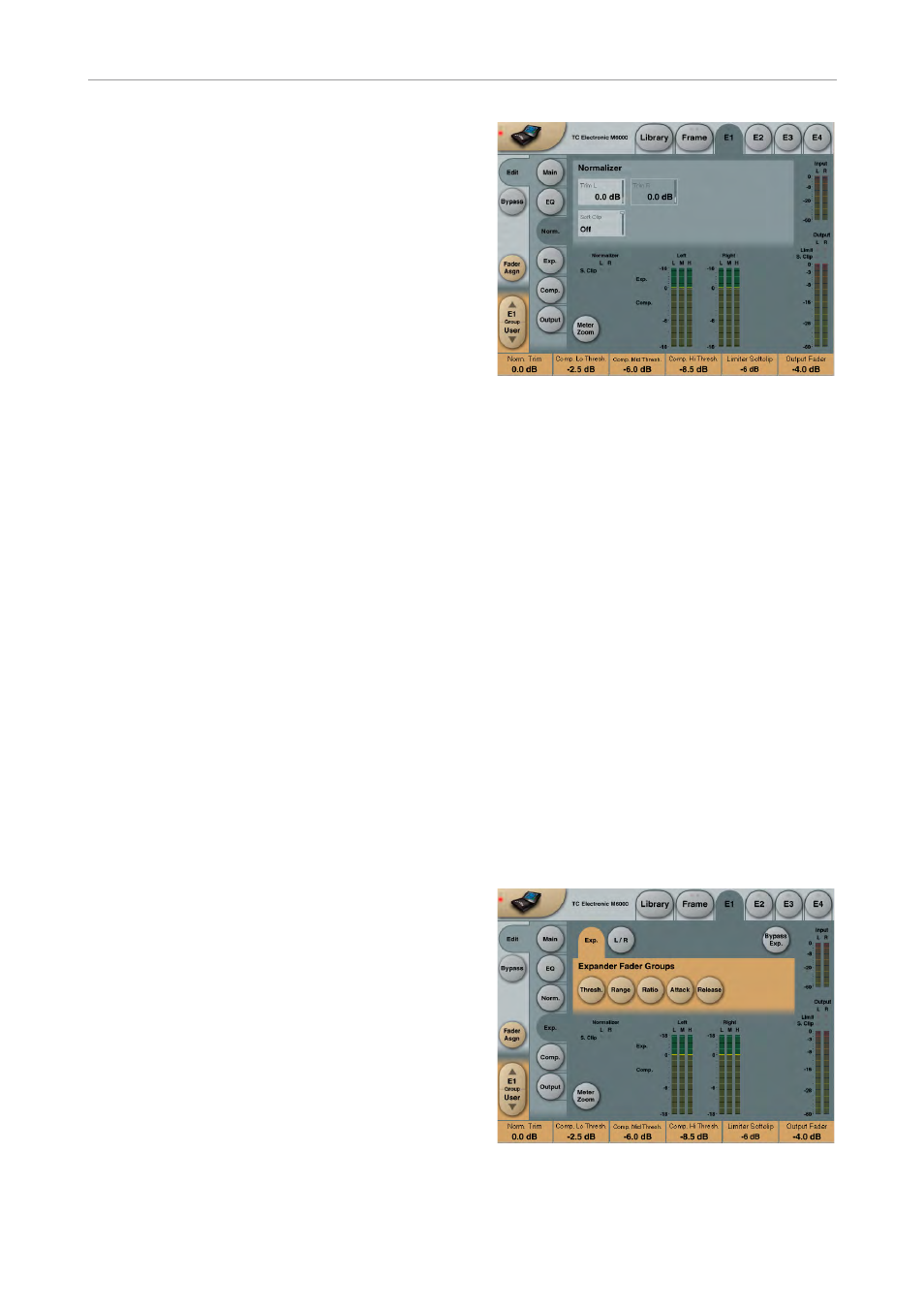

MD-3 algorithm – normalizer page
MD-3 algorithm – normalizer page
When using the EQ section (located just before
the Normalizer) the gain might have been in-
creased or decreased. The Normalizer is used
to optimize the gain before hitting the Expander/
Compressor section.
Trim Left and Trim Right
Range: -6 to +18 dB in 0.1 dB steps
Level parameter between the EQ and Exp/Comp
section. When Input Mode is set to Stereo the
parameters will be linked.
Softclip
Range: Off to -6 dB
The Softclipper is placed between the Normal-
izer and Exp/Comp section. By enabling the
Softclipper you are able to reduce potential over-
shoots.
MD-3 algorithm – expander page
MD-3 algorithm – expander page
