VSS™ 6.1 Reverb
48 System 6000 MKII Algorithms
Hi Cut
Range: 20 Hz to 20 kHz
Determines the Hi Cut frequency.
Hi Soften
Range: -50 to +50
Hi Soften is a special filter used to soften the Re-
verb response. This is not a Hi Cut, but a com-
plex and dynamic set of filters for a particular
purpose. Hi Soften is automatically scaled with
Hi Cut and Hi Decay.
Decay Crossover
Lo Decay
Range: 0.01 to 2.5
Decay multiplier in relation to the Master Decay,
for frequencies below the Lo Xover setting.
Example: When a Decay multiplier is set to 1.25
and the Master Decay is 2.0 seconds the result-
ing decay time will be 2.5 seconds.
LoMid Decay
Decay multiplier in relation to the Master Decay,
for frequencies above the LoXover and below the
Mid Xover settings.
HiMid Decay
Decay multiplier in relation to the Master Decay,
for frequencies above the Mid Xover and below
the Hi Xover settings.
Hi Decay
Decay multiplier in relation to the Master Decay,
for frequencies above the Hi Xover setting.
Lo Xover
Sets the Cross-over frequency between the Lo
and LoMid Decay.
Mid Xover
Sets the Cross-over frequency between the Lo-
Mid and HiMid Decay.
Hi Xover
Sets the Cross-over frequency between the Hi-
Mid and Hi Decay.

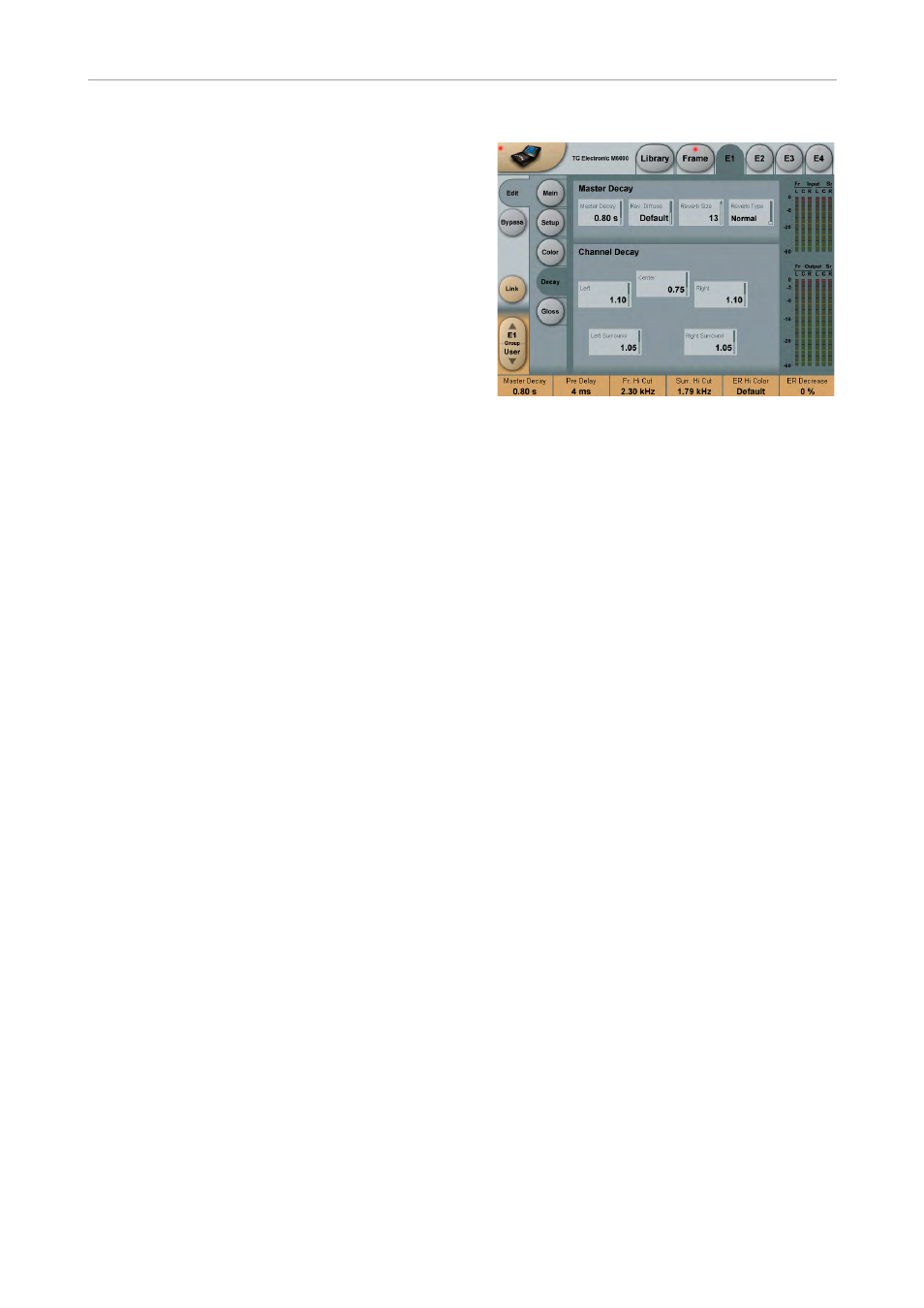

VSS™ 6.1 Reverb algorithm
– decay page
VSS™ 6.1 Reverb algorithm – decay page
Master Decay
Master Decay
Range: 0.1 sec to 20 sec.
Sets the Master Decay time for all channels. Indi-
vidual channel Decay time is set using the Chan-
nels Decay multipliers. Please note that some
Location Types offer less than 20 sec. Decay
time.
Reverb Diffuse
Range: -50 to +50
Offsets the diffusion away from the default of a
given Decay time. For optimum performance, the
diffusion is automatically adjusted when Decay
is changed.
Reverb Size
Range: 0 to 15
Adjusts the overall perceived size of the Diffuse
Field part of the response. It affects the spread
and correlation of the diffused response, not the
decay time. The default value depends on the
Location Type chosen.
Reverb Type
Range: Normal/ Colored
When a Location Type is selected, a Reverb type
is automatically set. With the Reverb Type pa-
rameter it’s possible to select between the most
natural sounding Diffuse field (Normal) and a
more colored, glossy Diffuse field setting.
