VSS™ SR
English Manual 57

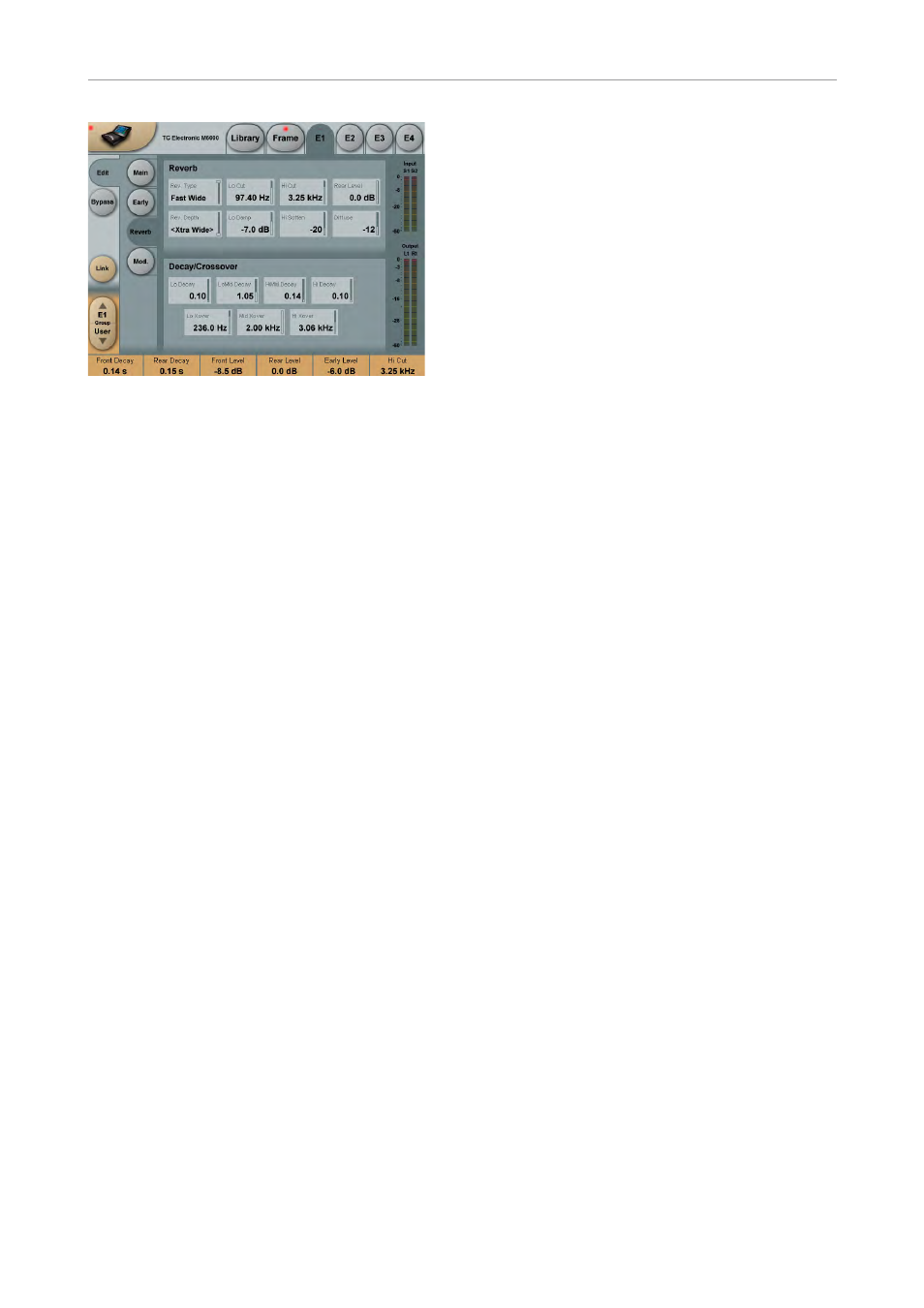

VSS™ SR algorithm – reverb page
VSS™ SR algorithm – reverb page
Rev Type
Range: Smooth, Natural, Metal, Fast, Fast WD
Adjust this parameter with the Early Lev turned
all the way off and the Rev Lev all the way up.
Change the type to get a feel of what each one
sounds like.
Rev Width
Range: Center, Stereo or Wide
Three modes of perceived width of the Diffused
field.
Lo Cut
Range: 20 Hz to 200 Hz
Sets the Lo Cut frequency of the Reverb Tail.
The Lo Damp parameter controls the amount of
Cut in dB.
Lo Damp
Range: -18 dB to 0 dB
Sets the amount of cut in dBs. Used with the Lo
Cut parameter as described above.
Hi Cut
Range: 20 to 20 kHz
Rolls off the top end as it enters the Reverb.
Used in conjunction with Hi Soften and Hi Decay
to “darken” a room.
Hi Soften
Range: -50 to +50
Hi Soften is a special filter used to “soften” the
high frequencies of the Reverb. This is not a
simple Hi Cut filter but a complex set of filters
working together to remove those frequencies
that make a Reverb sound “brittle” or harsh. Hi
Soften is scaled/linked to the Hi Cut and Hi De-
cay parameters.
Rear Level
Range: -10 to 0 dB
Changes the level of the Rear/Surround informa-
tion in the signal.
Diffuse
Range: -50 to +50
This parameter gives you more or less diffusion
than the algorithm designer intended for the giv-
en Decay time. For optimum performance the
diffusion is automatically adjusted behind the
scenes whenever you change Decay times. This
parameter gives you the added control to vary
the diffusion around this automatic setting.
Decay/Crossover
Lo Decay
Range: 0.01 to 2.5
Multiplier for the frequencies below the Lo Xover
frequency.
Example:
If the Main Decay parameter is set to 2.0 sec and
the Lo Decay parameter is set to 1.5, frequencies
below the Lo Xover will decay for 3.0 sec.
Conversely, if this parameter is set to 0.5 the De-
cay time below the Lo Xover point will be only 1
sec.
Lo Xover
Range: 20 Hz to 500 Hz
Sets the frequency at which the transition from
the low to the low-mid frequencies takes place.
Lo Mid Decay
Range: 0.01 to 2.5
The Ratio control multiplier for the low-mid fre-
quencies.
