VSS™ 4
English Manual 37

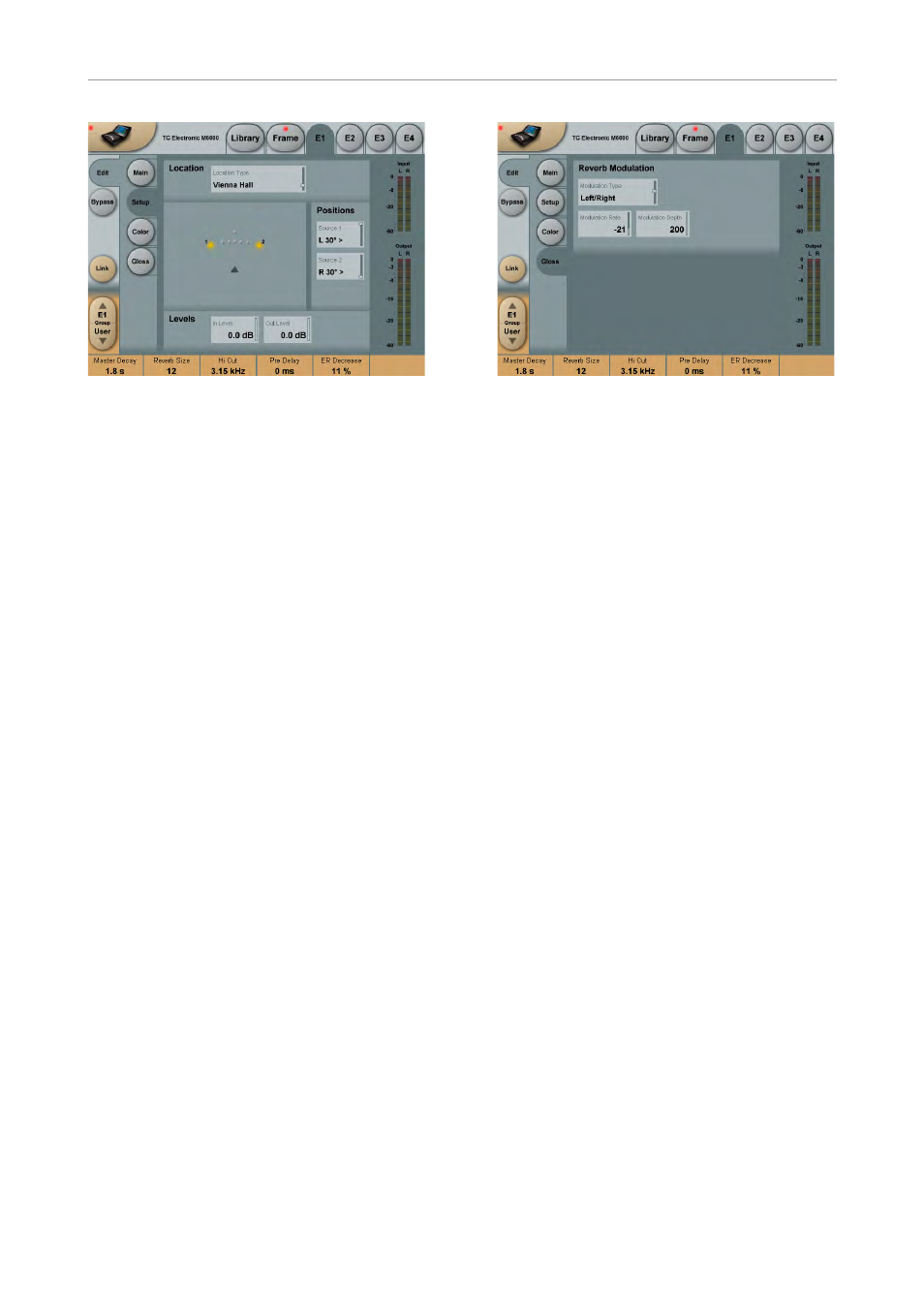

VSS™ 4 algorithm – setup page
VSS™ 4 algorithm – setup page
Location Type
Location Type
Select between different Locations. Both the
Early Reflection- and Diffuse Field-types are
changed when switching Location to give the
optimal starting point for further adjustments.
Positions
Source 1 – Source 2
Range: R 30º, R 15º, R 7º, C 0º, L 7º, L 15º, L 30º
Sets the location of the two Input sources. De-
pending on the Location Type the number of lo-
cations can vary. Typically a small room has less
positions than a large location. Source 1 is Left
Input and Source 2 is Right Input.
Levels
In Level
Range: Off to 0 dB
Controls the entire algorithm Input level.
Out Level
Range: Off to 0 dB
Controls the entire algorithm Output level
VSS™ 4 algorithm – color page
VSS™ 4 algorithm – color page
Reverb
Lo Cut
Range: 20 Hz to 200 Hz
Determines the Lo Cut frequency.
Attenuation amount is controlled via the Lo
Damp parameter.
Lo Damp
Range: 0 to -18 dB
Attenuation of the frequencies below the select-
ed frequency via the Lo Cut parameter.
Hi Cut
Range: 20 Hz to 20 kHz
Determines the Hi Cut frequency for the Diffuse
Field part of the Reverb.
Hi Soften
Range: -50 to +50
Hi Soften is a special filter used to “soften” the
high frequencies of Reverb diffuse field. This is
not a simple Hi Cut filter but a complex set of fil-
ters working together to remove the frequencies
that gives a “brittle” or “harsh” sounding Reverb.
Hi Soften is scaled/linked to the Hi Cut and Hi
Decay parameters.
Lo Decay
Range: 0.01 to 2.5
Decay multiplier in relation to the Master Decay,
for the frequencies below the Lo Xover setting.
