EQ-5.1
English Manual 119
EQ-5.1
The EQ 5.1 algorithm occupies:
– @ Normal Sample Rate: 1/4 DSP Resource
– @ Double Sample Rate: 1/4 DSP Resource
The inputs and outputs of this algorithm are dis-
tributed as follows:
Input Output
L
E1
E2
E3
E4
L
R R
C C
LFE LFE
SL SL
SR SR
The EQ 5.1 algorithm is a 6 channel, 4 band
equalizer with various filter types available.

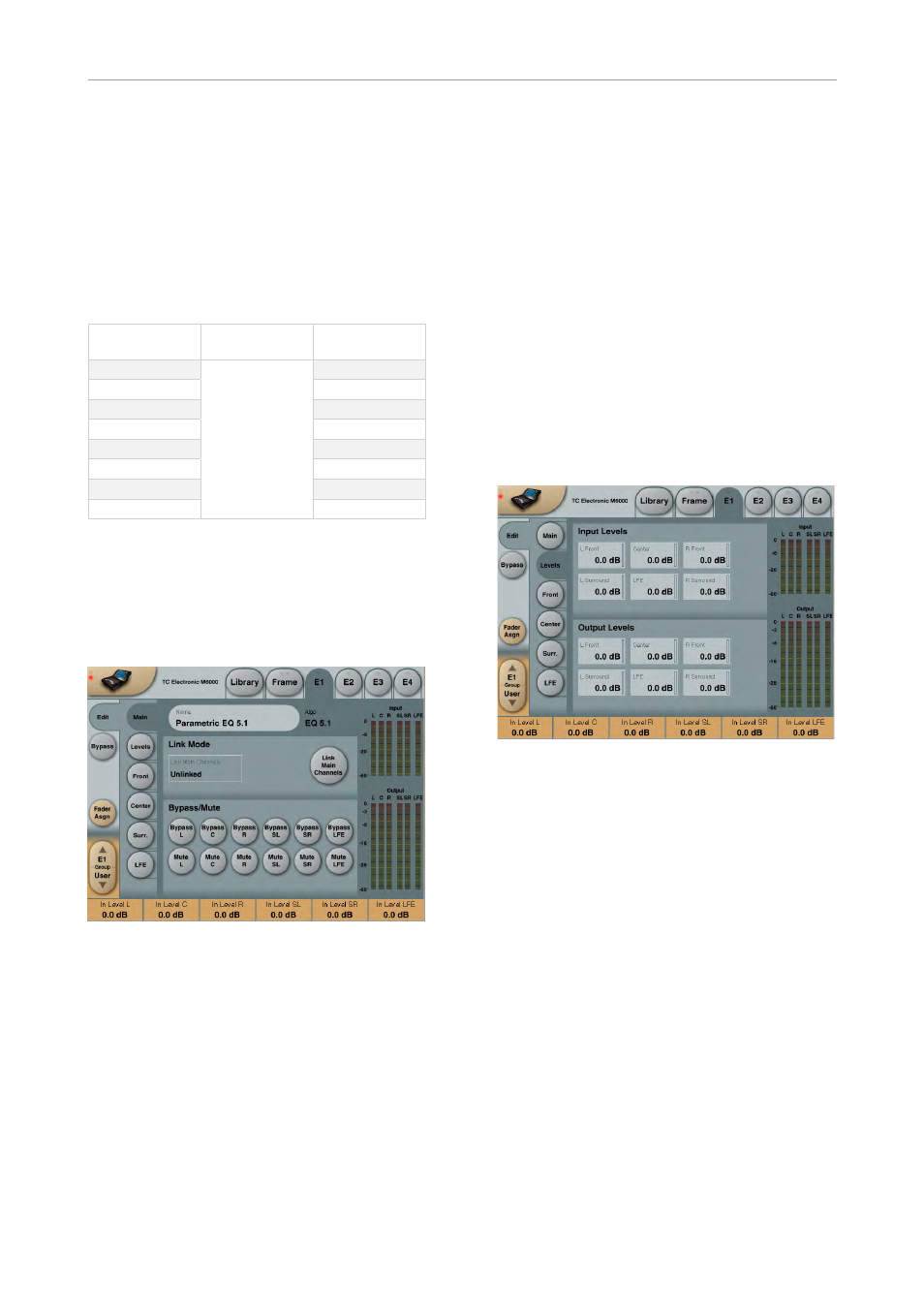

EQ-5.1 algorithm – main page
EQ-5.1 algorithm – main page
Link Mode
Two link modes can be used in the EQ 5.1 algo-
rithm: Linked or Unlinked.
Unlinked mode:
Enables separate handling of Lo, Mid1, Mid2 and
Hi frequency areas for the 4 channel groups:
– L/R Front channels
– L/R channels
– Center channel
– LFE channel
Linked mode:
Press Link Main Channels to link the 5 main
channels. A “pop-up” display will ask whether
you wish to copy settings for the Center channel
to the Front and Surround channels.
When linked, the Lo, Mid1, Mid2, and Hi fre-
quency areas are controlled with only one set of
handles. The LFE channel however, is still treated
separately.
Bypass/Mute
Bypass and Mute function for each of the 6
channels.
EQ-5.1 algorithm – levels page
EQ-5.1 algorithm – levels page
Input Levels
Range: -100 to 0 dB
Input level control for each of the 6 channels.
Output
Range: -100 to 0 dB
Output level control for each of the 6 channels.
