MD-3
96 System 6000 MKII Algorithms
Basic operation
– Press keys Lo, Mid1, Mid2 and Hi to activate/
deactivate the EQ bands.
– Select Freq, Gain, Type or Lo/Hi to access all
four parameters on individual bands.
– Press Bypass EQ to bypass all four bands.
Type Selector
– Press Type and use faders 1 to 4 to select filter
types.
For Lo and Hi filters select between filter types:
Parametric, Notch, Shelve and Cut.
For Mid 1 and Mid 2 filters select between filter
types: Parametric and Notch.

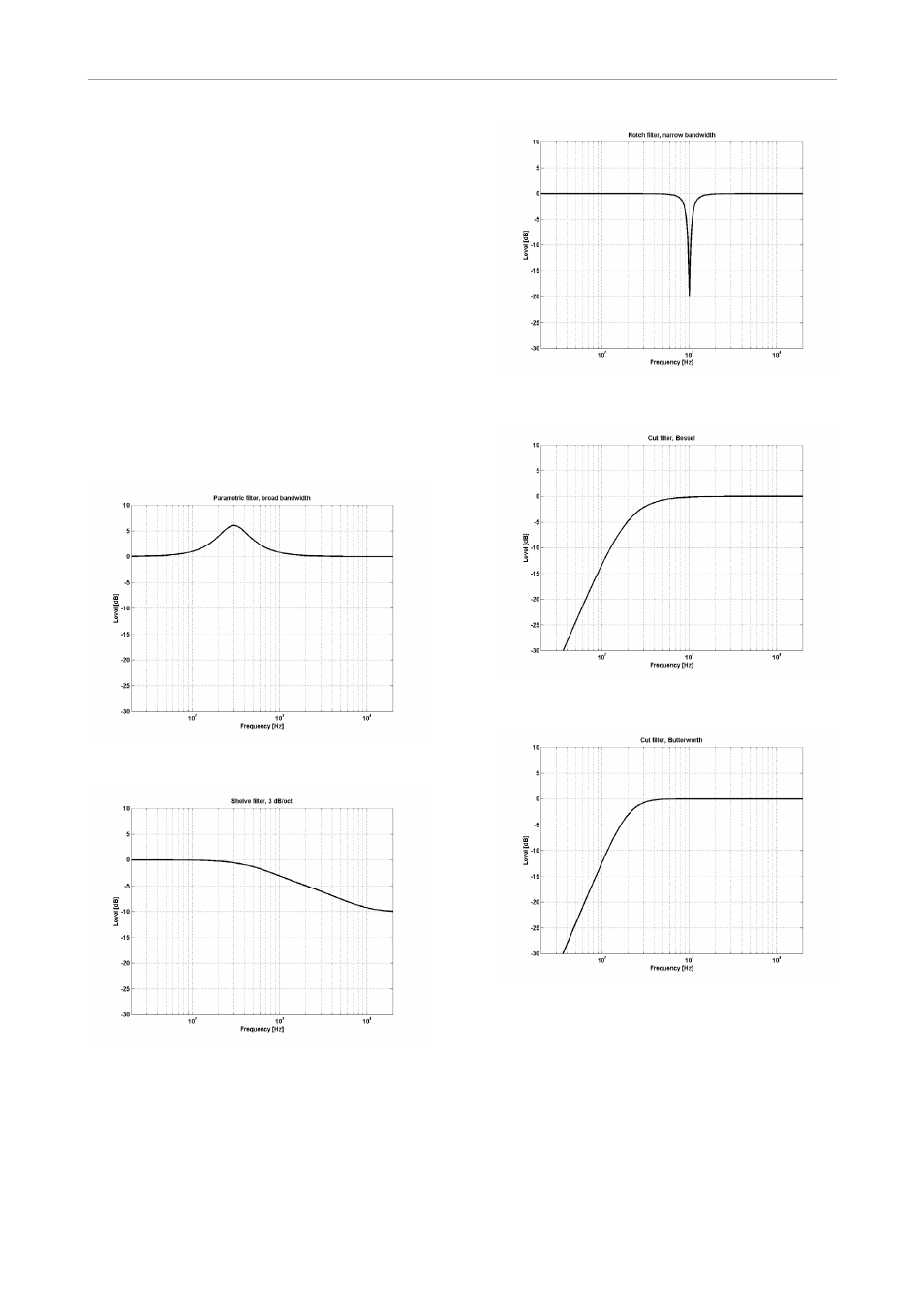

Parametric Filter – Broad type
Shelving Filter
Notch Filter – Narrow Type
Cut Filter – Bessel type
Cut Filter – Butterworth type
Freq
Press Freq and use Faders 1 to 4 to adjust fre-
quence for each of the four bands.
Range – Lo band: 20 Hz to 20 kHz
Range – Mid1 band: 20 Hz to 20 kHz
Range – Mid2 band: 20 Hz to 20 kHz
