Massenburg (MDW) EQ
English Manual 125
6-ch. version
In the 6-ch. version a Channel select parameter
is placed below the Output meters. This param-
eter is always present. Depending on assigned
channels in the three Link groups (made on the
Main page), the Channel select parameter indi-
cates one or more of the six channel numbers
when changing the parameter. E.g. if all six chan-
nels are assigned to Link group A, this parameter
will not have any further steps to select between.
Note: It is only possible to select between chan-
nels/channel-groups on the EQ-page.
Reset
Resets the Gain-values for all bands (Flat).
Note: Because the cut-filters do not have a
gain value, they are not reset with this func-
tion. Switch off the bands with the detail boxes
if needed.
A/B
Comparing two different EQ settings can be use-
ful. When a preset initially is loaded the A/B but-
ton will be Grey indicating that the A and B set-
tings are equal. When a change is made the A/B
button turns green, indicating that a difference
between the A and B settings is present. Toggle
the A/B button to monitor the difference.
Note: It is only the current view that will be saved
with the preset, NOT both the A and B settings.
Mem. (Memory)
The Memory button is working in conjunction
with the A/B function. The Mem. function is lo-
cally storing current EQ-view (A) into the other
setting (B). This way the A and B settings be-
comes equal and the A/B button becomes grey
until a change is made in the settings.
Scale
Selects the range of the ± gain range on the EQ-
curve display. This way it’s possible to zoom the
EQ display in the vertical angle. The function is
only for convenience and does not affect the EQ
sound and performance.
Zoom
Press the Zoom button to access a larger view of
the EQ display. The band-select buttons remains
available making it possible to perform most EQ-
adjustments in this mode. The function is only for
convenience and does not affect the EQ sound
and performance.
Filter ranges for all channels:
Filter #1:
Curve: Lo/Hi Shelf, Q 0,18 to Q 32, Lo/Hi Pass
12/24 dB
Frequency: 15 Hz to 29.500 Hz
Gain range: -25.4 dB to +25.6 dB
Filter #2, 3, 4 and 5
Curve: Lo/Hi Shelf, Q 0,18 to Q 32, Lo/Hi Pass
12 dB
Frequency: 15 Hz to 29.500 Hz
Gain range: -25.4 dB to +25.6 dB

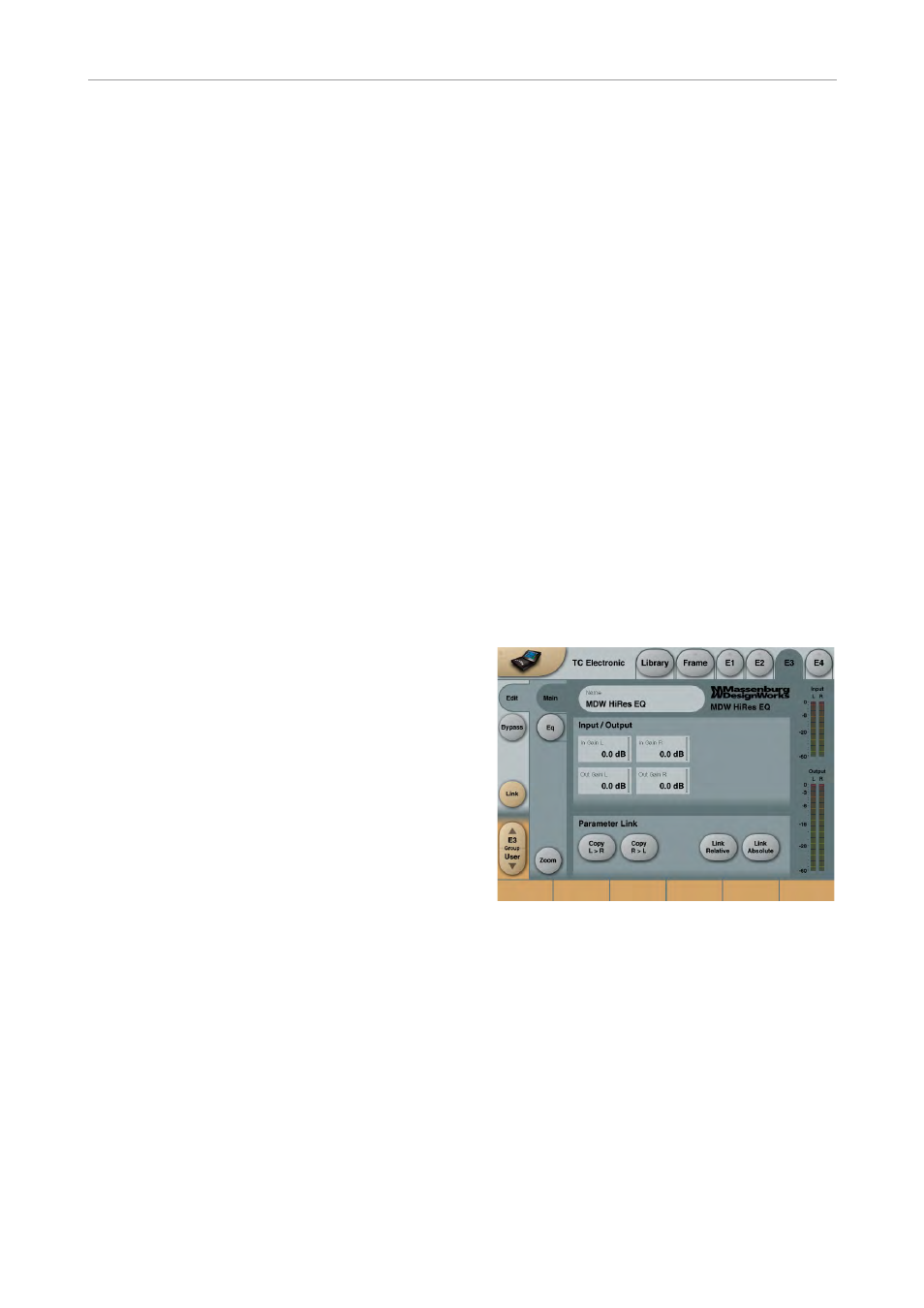

MDW HiRes EQ – main page
MDW HiRes EQ – main page
Input/Output Gains
Range: 0 dB to -120 dB (Off)
For all channels, Input gain and Output gain pa-
rameters are available.
2 channel version
The Gain parameters are located at the Main
page.
When Link Absolute the Gain settings are includ-
ed in the linking.
