Delay-1
English Manual 73
Delay-1
The Delay-1 algorithm occupies:
– @ Normal Sample Rate: 1/4 DSP Resource
– @ Double Sample Rate: 1/4 DSP Resource
The inputs and outputs of this algorithm are dis-
tributed as follows:
Input Output
L
E1
E2
E3
E4
L
R R
Delay-1 algorithm – introduction
This algorithm deriving from the M5000 is a
straight, 24 bit true stereo delay offering up to
2.5 seconds in each channel with basic feed-
back control.
The System 6000 implementation of Delay-1 can
be used with sample rates of up to 96 kHz.

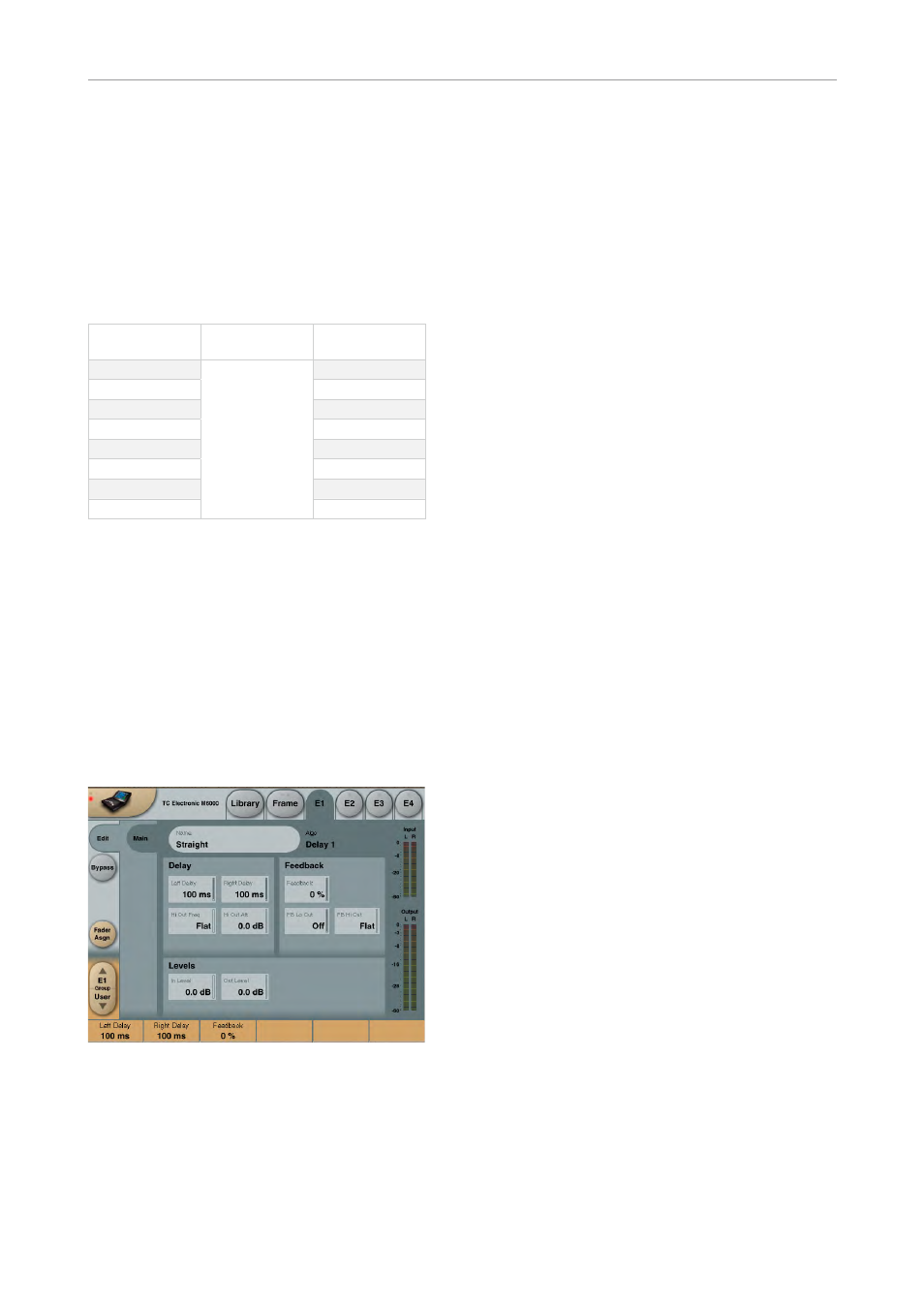

Delay-1 algorithm – main page
Delay-1 algorithm – main page
Delay
Left Delay
Range: 0 to 2500 ms
Sets the Delay time for the left side.
Right Delay
Range: 0 to 2500 ms
Sets the Delay time for the right side.
Hi Cut
Range: 500 Hz to flat
Hi Cut filter, shelving type. Provides an over-
all high frequency roll-off (6 dB per octave) that
is well suited to make the Delay effect sound
warmer.
Hi Cut Att
Range: -40 to 0.0 dB
The attenuation control sets the high frequency
roll determined by Hi Cut in 0.5 dB steps.
Feedback
Feedback
Range: 0 to 99 %
Sets common feedback level for left and right
Delay Output in percent. It feeds the Delay Out-
put for left and right separately to its own Input
in order to make repeatable stereo echo effects.
The control is common for left and right – but the
signals are processed individually.
FB Lo Cut
Range: Off to 800 Hz
Common Lo Cut filter control for left and right
feedback.
FB Hi Cut
Range: 1 kHz to off
Common Hi Cut filter control for left and right
feedback.
Levels
In Level
Range: -100 to 0 dB
Controls the Input level of the algorithm.
Out Level
Range: -100 to 0 dB
Controls the Output level of the algorithm.
