SpacePan 5.1
English Manual 195
SpacePan 5.1
The SpacePan 5.1 algorithm occupies:
– @ Normal Sample Rate: 1/4 DSP Resource
– @ Double Sample Rate: 1/4 DSP Resource
The inputs and outputs of this algorithm are dis-
tributed as follows:
Input Output
S1
E1
E2
E3
E4
L
S2 R
S3 C
S4
S5
SL
S6 SR
S7
S8

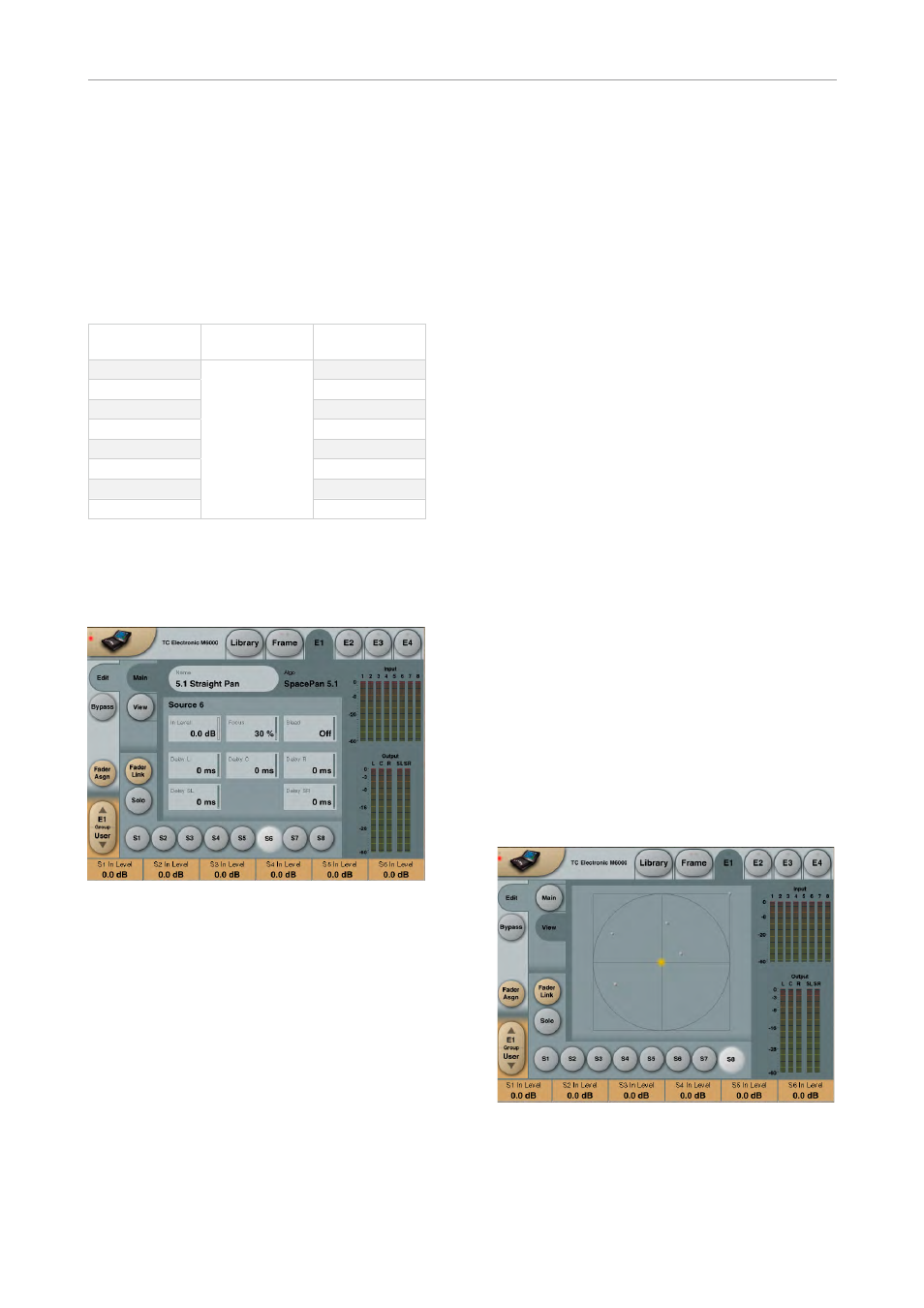

SpacePan 5.1 algorithm
– main page
SpacePan 5.1 algorithm – main page
S1 to S8
Select buttons for each of the 8 sources. Press
to access the parameters for each of the 8
sources.
Source 1 to 8
In level
Range: -100 to 0 dB
Adjusts the Input level of the selected source.
Focus and Bleed parameters
As these parameters highly affect each other,
you should understand the functionality of both.
Please read the following few lines.
Focus
Range: 0 to 100 %
Adjust the amount of focus on the selected
channel.
A 100 % setting will result in muting of all other
Output channels than the channel in which the
source is positioned. A 0 % setting will evenly
distribute signal to all Output channels. This
however is dependent on the setting of the Bleed
parameter.
Bleed
Range: Off to 0 dB
Sets the minimum difference of level to channels
enhanced via the Focus parameter. If set to “100
%” the Focus parameter will have no effect on
the signal. If set to “Off “ the Focus parameter
will have full effect.
Delay L, C, R, SL, SR
Range: 0 to 250 ms
Sets Delay time for each of the 5 Output chan-
nels. This means for Each of the 8 Sources you
actually have 5 individual Delay parameters. One
for each source.
SpacePan 5.1 algorithm
– view page
SpacePan 5.1 algorithm – view page
On the View page, the positions of the 8 sourc-
es are indicated. Input level indication of each
source is delicately illustrated via color strength.
