Reflector 6 & Reflector LCR
English Manual 77
Reflector 6 &
Reflector LCR
The Reflector-LCR algorithm occupies:
– @ Normal Sample Rate: 1/4 DSP Resource
– @ Double Sample Rate: 2/4 DSP Resource
The inputs and outputs of this algorithm are dis-
tributed as follows:
Input Output
Mono
E1
E2
E3
E4
L
R
C
The Reflector-6 algorithm occupies:
– @ Normal Sample Rate: 1/4 DSP Resource
– @ Double Sample Rate: 2/4 DSP Resource
The inputs and outputs of this algorithm are dis-
tributed as follows:
Input Output
Mono
E1
E2
E3
E4
L
R
C
LS
RS
CS
Reflector 6 & Reflector LCR
algorithms – introduction
Reflector is a versatile Delay and Boundary ef-
fect for multichannel applications. Output con-
figurations are optimized for LCR, Stereo or
Mono production.
Advanced features such as individual EQ and
multiple layers of Diffusion, makes Reflector ca-
pable of crossing the border between Ambience,
Early Reflections, Reverb and Delay-effects.
Reflector is able to generate plain delays, real-
istic ambient locations, and with the long delay-
times and diffusion available, it can also simu-
late the large outdoor locations sought after in
film- and post production. Environments such as
Streets, Canyons, Forests etc.
On top of this, Reflector enables the creation
of wild surround effects, making complex delay
patterns for music and film production etc.
Effects can easily be edited, mirrored and audi-
tioned on the fly to allow the user to be part of an
inspirational effect design process.
Please note that this manual section covers both
Reflector 6 and Reflector LCR algorithms. Devi-
ating parameters are marked.
Graphic illustration in this manual section are
taken from Reflector LCR. Only meters and the
Hyper page are different in Reflector 6.

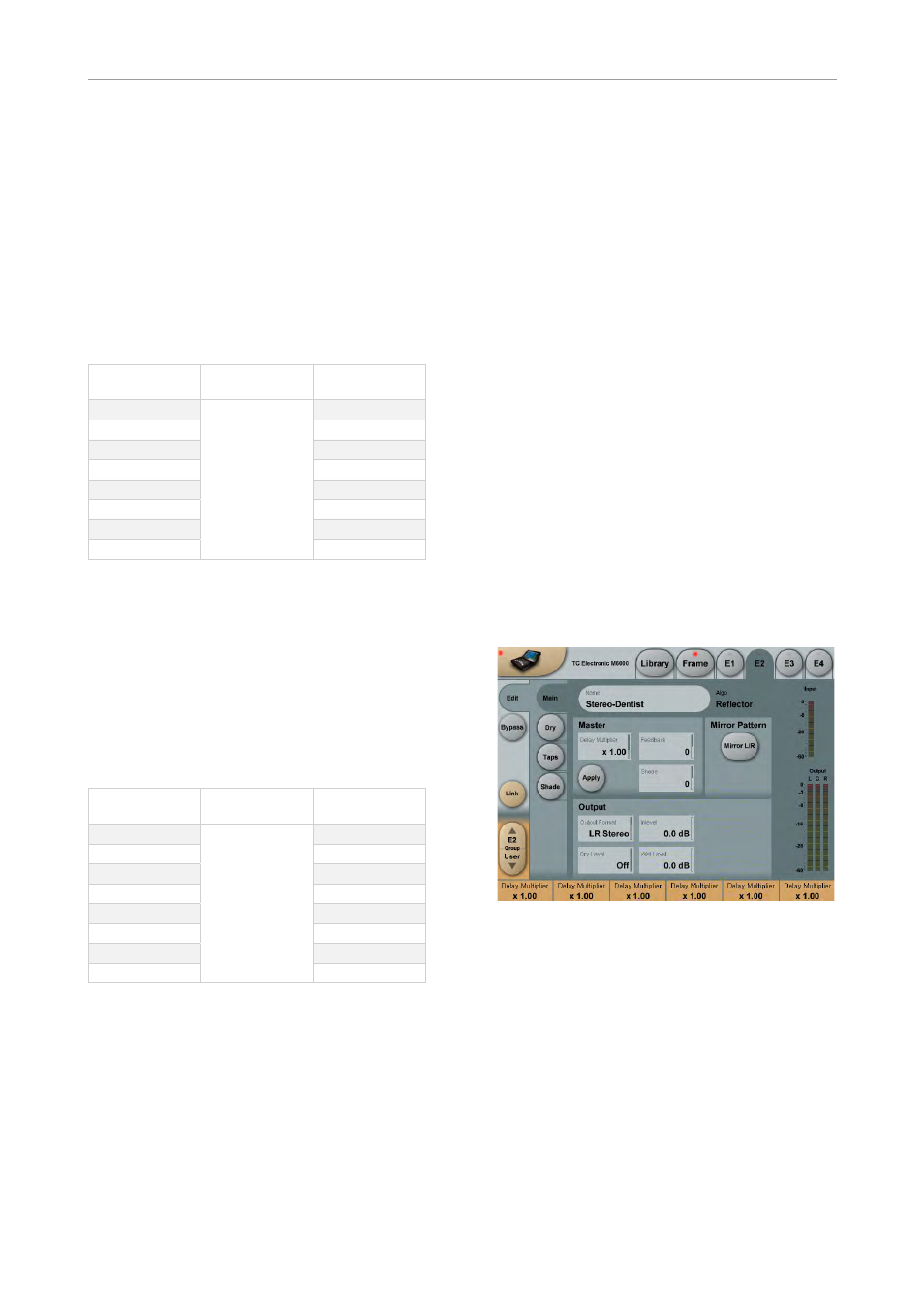

Reflector algorithm – main page
Reflector algorithm – main page
The Main page contains Master parameters that
offers an easy way to alter a complex setup of all
the reflections along with the basic Output for-
mat and level adjustments. Normally, it is pos-
sible to alter the effect in the wanted direction
using only the parameters on the Main page.
If more detailed tweaking is required, go to the
Taps and Shade pages or use another preset as
a starting point.
