Reflector 6 & Reflector LCR
English Manual 81
Reflector algorithms –
Taps – shade page

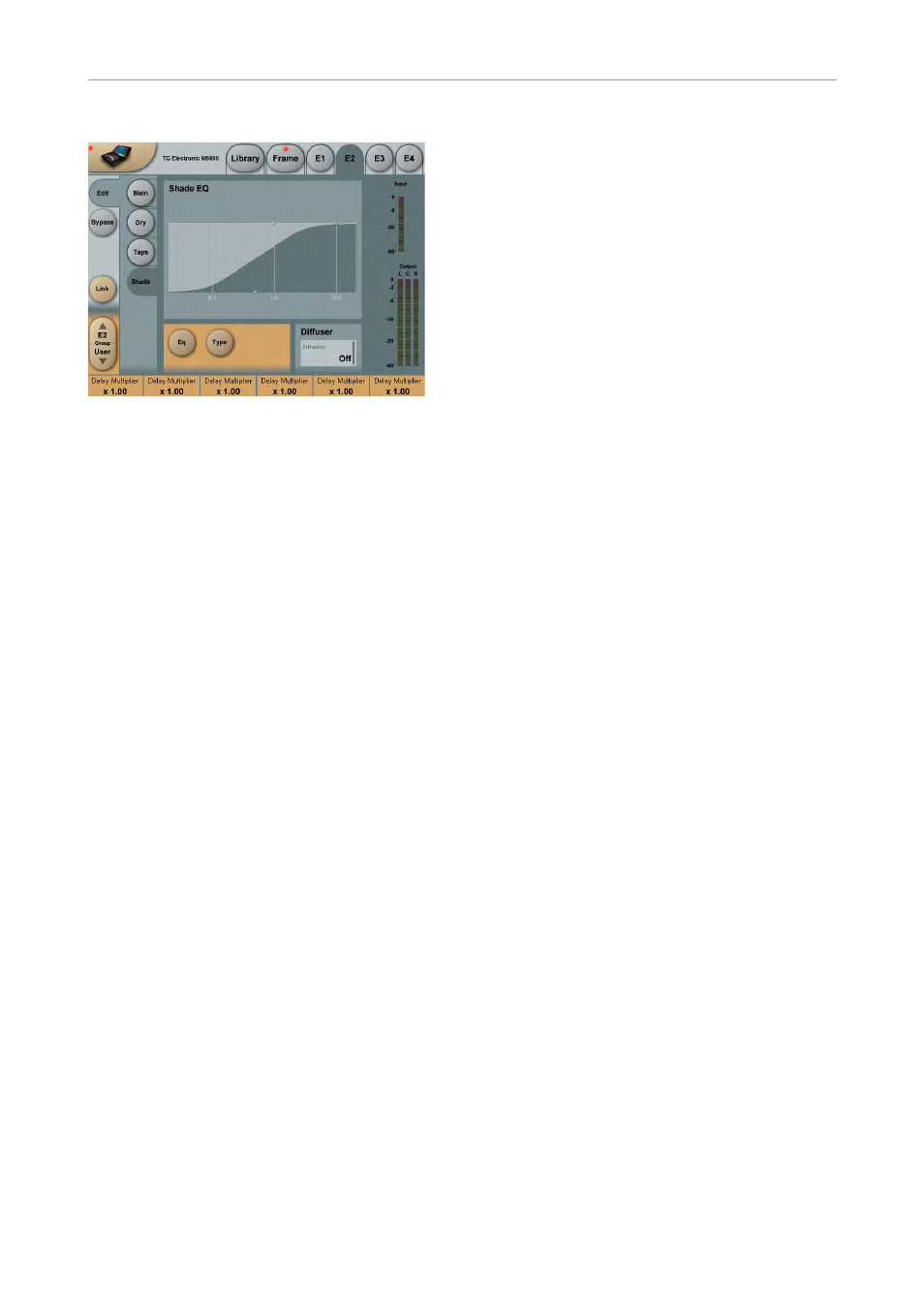

Reflector algorithms – Taps – shade page
Set the Shade response curve (equalization) on
this page. Three bands (Lo-shelf, mid-parametric
and Hi-shelf) are available to form the desired
response curve for the 24 individual Shade pa-
rameters.
Look at the Shade curve as a “max-range” for
the color adjustment to the taps (reflections).
When a Shade parameter is set to 100 %, the
resulting EQ curve is the same as seen on the
Shade EQ page.
EQ
Press the EQ button to access Frequency and
Level parameters for the three bands.
The EQ levels are only attenuating.
Type
Select the curve type for the three EQ bands.
Band 1 and 3 are shelving types, band 2 is para-
metric type.
Diffusion Type
Selects between different diffuse/boundary
types or turns diffusion off.
The diffuse amount is an integrated part of the
Shade parameters.
