VSS™ 5.1 Source
40 System 6000 MKII Algorithms
Lo Color
Range: ±50
Adjusts the low frequency spectrum for the com-
plete
Output. This can be used for altering the overall
color of the Reverb.
Hi Color
Range: ±50
Adjusts the high frequency spectrum for the
complete
Output. Relatively adjusts the four Hi Colors for
the four sources.
Master Reverb
Master Decay
Range: 0.1 to 20 s
Adjusts the Reverb Decay time for all five Reverb
diffused fields. If you want to adjust the Decay
time individually per channel, go to the Decay
page and use the multipliers for each channel.
Reverb Size
Range: -12 to 3. Default value is 0
This is the parameter that adjusts the overall
perceived size of the Diffused Field part of the
algorithm.
This is a really powerful parameter ! Try changing
the Reverb Size instead of the Decay time.
Master Levels
ER Trim
Range: ±12 dB
Relatively adjusts the four Early Reflections Input
level parameters.
Reverb Trim
Range: ±12 dB
Relatively adjusts the four Reverb input levels
from the four sources.
Dry Trim
Range: ±12 dB
Relatively adjusts the four Dry Input levels for the
four sources.
This parameter is only available when KillDry is
set to Off.
Out level
Range: -100 to 0 dB
Adjusts the total Output level for the (up to five)
Output channels.

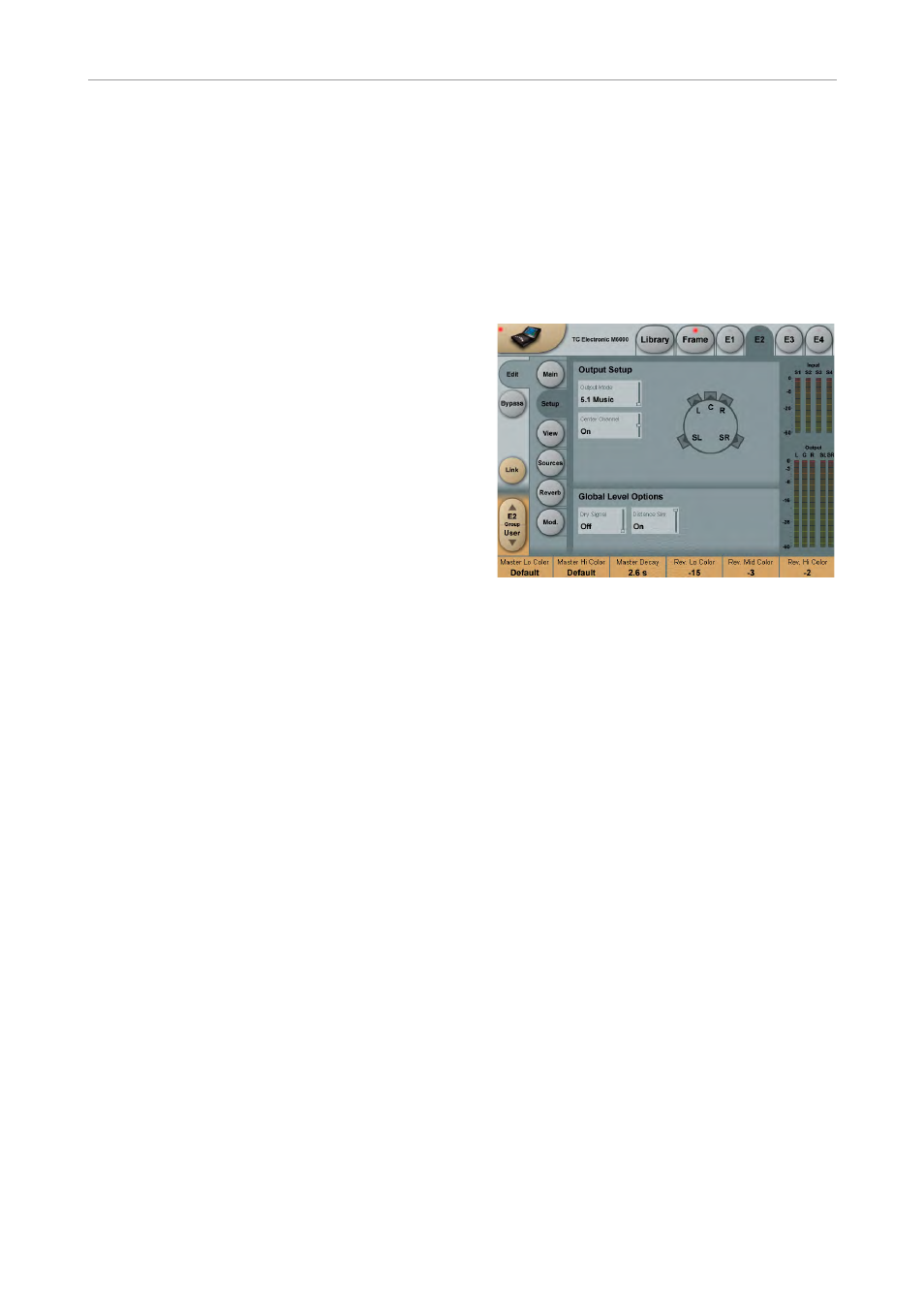

VSS™ 5.1 Source algorithm
– setup page
VSS™ 5.1 Source algorithm – setup page
The Setup page contains parameters for global
settings of the algorithm.
Output Setup
Output Mode
Range: 5.1 Music (ITU775), 5.1
Cinema, Stereo, Mono.
The VSS™ 5.1 algorithm is optimized to 3 dif-
ferent speaker Output modes. This is due to the
built-in positioning tools, and the fact that dif-
ferent speaker set-ups give different opportuni-
ties in the algorithm design. The Output Mode
change is meant for quickly achieving approxi-
mately the same Reverb settings (Color and po-
sitions), for different Output formats.
Select Output mode between three speaker set-
ups:
– 5.1 Music (ITU775) with 5 identical speakers
and a ±30/110 degree azimuth.
– 5.1 Cinema set-up with several surround
speakers set-up in double L configuration.
– Stereo (Output on Left and Right front-speak-
er ).
