Matrix 88
English Manual 171
Matrix 88
Features
– 8 x 8 48 bit mixer algorithm
– Precision delay on all inputs and outputs
– 2 stereo AUX sends with pre/post
– 2 main mix outputs
– Smooth crossfading between channels
– Brickwall II Limiter
– Part of the routing matrix
Matrix 88 occupies:
– @ Normal Sample Rate: 1 DSP Resource
– @ Double Sample Rate: 1 DSP Resource
(= 4 instances possible)
The inputs and outputs of this algorithm are dis-
tributed as follows:
Input Output
1L
E1
E2
E3
E4
Main A L
1R Main A R
2L Main B L
2R Main B R
3L Aux 1 L
3R Aux 1 R
4 Aux 2 L
5 Aux 2 R

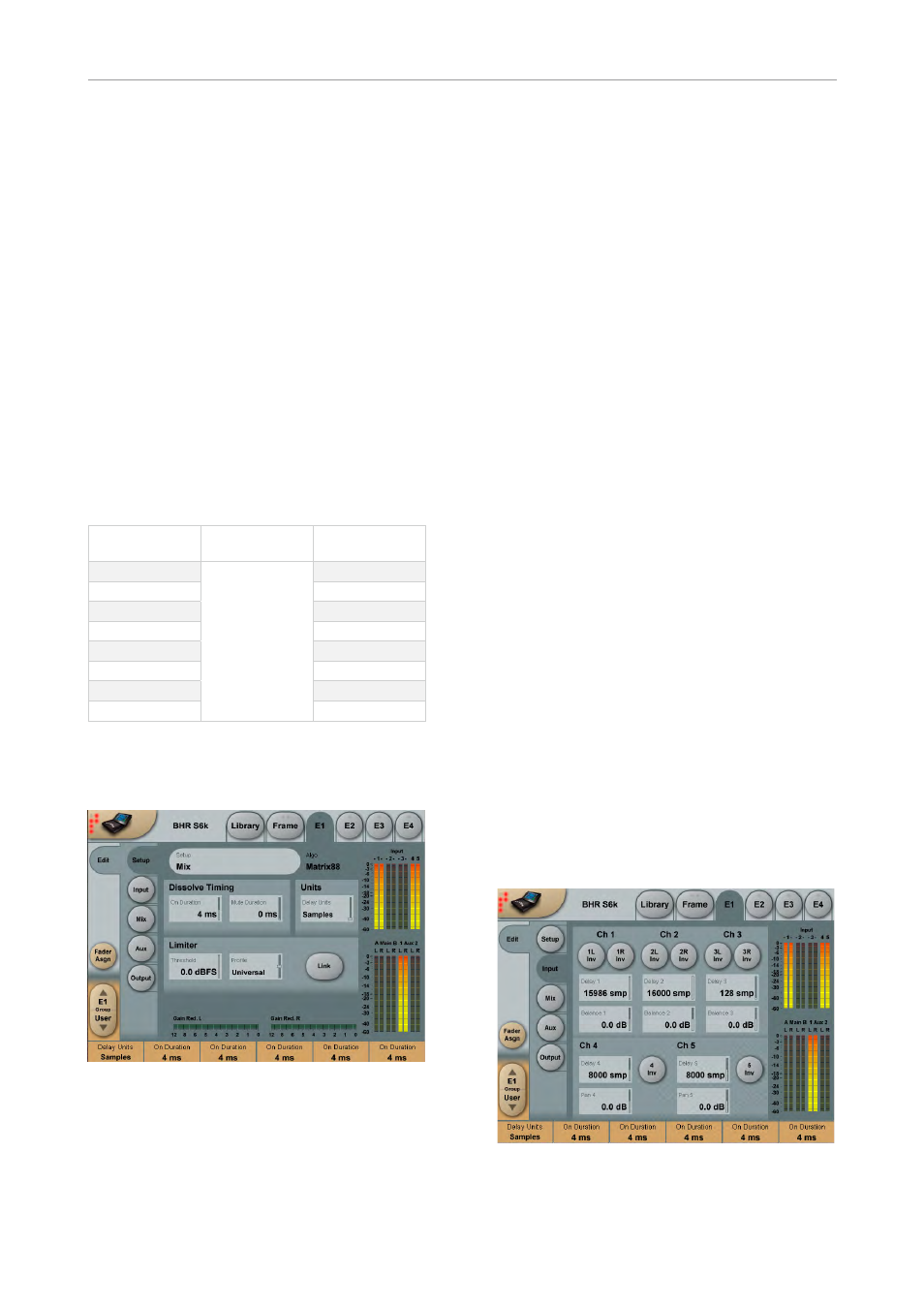

Matrix 88 algorithm – main page
Matrix 88 algorithm – main page
Dissolve Timing
On Duration & Mute Duration
Input sources on can be muted/unmuted via the
“ON” buttons on the Mix page. On Durations
sets the fade-in time when a fader group is acti-
vated by pressing “ON”.
Mute Duration sets the fade-out time when mut-
ing an input source.
Units
Delay units
The delay time can be displayed in meters, feet
or samples.
Limiter
Threshold
Range: -12 dB to Off – in 0.1 dB increments
Brickwall limiter for all channels. Threshold is
always relative to 0 dBFS. LED on each Output
meter indicates when Limiter is active.
Profile
Range: Dynamic, Soft, Universal, Loud, Voice
Select one of the 5 standard profiles that fist
your source material best possible.
Link
By activating Link, all limiter functions on left and
right channels are linked.
Matrix 88 algorithm – input page
Matrix 88 algorithm – input page
