Note that the Bass management is placed before
this format conversion in the signal chain. Use
the distribute part of the Bass-Management to
convert from 5.1 to 5.0 mix.
Output Format
Range: 5.1 (=Off or Thru), LCRS, Stereo or Mono
Selects the Output format in which your five main
channels Input material will be mixed down to.
90º Mono
90 degrees mono Insert. This option is placed
just before the two Limiters, meaning at LFr +
RFr when Output format is set to Mono, and LSr
+ RSr channels when LCRS is selected as Out-
put format.
Mono Output
Range: Center, LFr+RFr
Selects the Output channel when Mono is se-
lected as Output format.
Mix Levels
From L/R
Range: -100 dB to 0 dB
Sets the Input level from the Left and Right front
channels.
This parameter is only available when Output is
set to Mono or Stereo.
From Center
Range: -100 to 0 dB
Sets the Input level from the Center channel.
This parameter is only available when Output is
set to Mono or Stereo.
From SL/SR
Range: -100 to 0 dB
Sets the Input level from the Left and Right sur-
round channels.
Output limiter
Two channels of broadband output brickwall lim-
iting that are placed differently according to the
selected Output format.
Output format: 5.1 Thru
The Limiter is inactive.
Output format: LCRS
The Limiter operates on the LS and SR channels.
Output format: Stereo
The Limiter operates as a Stereo Limiter on Left
and Right front channels.
Output format: Mono
The Limiter operates on the Mono sum Output.
Threshold
Range: -12 to 0 dB
Limiter Threshold level for the two limiters avail-
able. The Limiters will be placed at LFr + RFr
Outputs when Stereo or Mono mode is selected
as Output formats, and at LSr + RSr when LCRS
is selected as Output format.
Release
Range: 10 to 1000 ms
Sets the Release time for the selected Limiter.

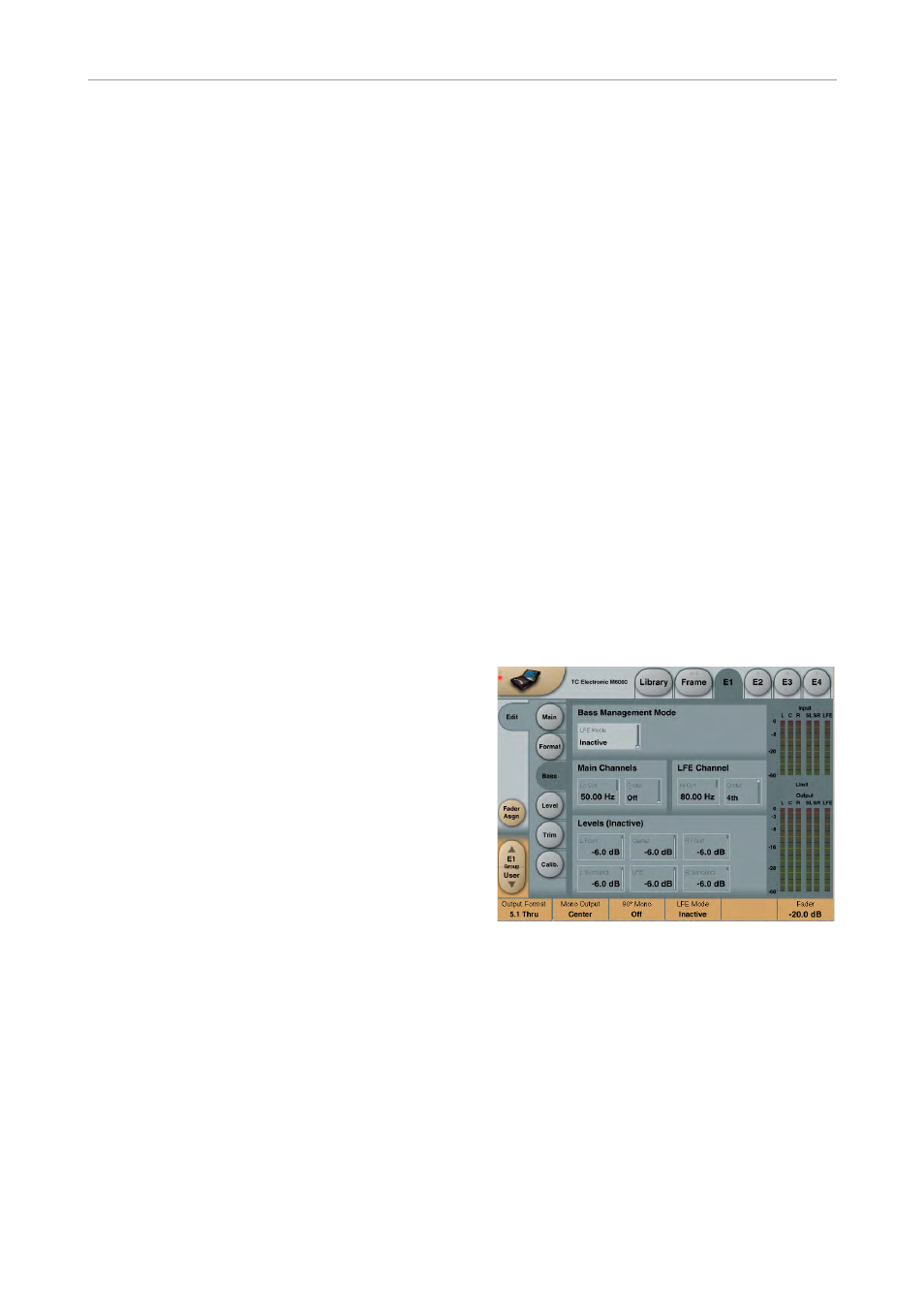

Toolbox 5.1 algorithm – bass page
Toolbox 5.1 algorithm – bass page
Bass Management Mode
Bass Management
Range: Extract, Distribute, Inactive
When the LFE Mode parameter is set to Distrib-
ute, the Bass Management enables you to add
LFE information to the six Output channels in
the system. This can normally be compared to a
5.1 -> 5.0 process, but it can also be a 5.1 -> 5.1
process, leaving the LFE channel unprocessed,
while adding LFE information to the five Main-
