INSTALLATION GUIDE

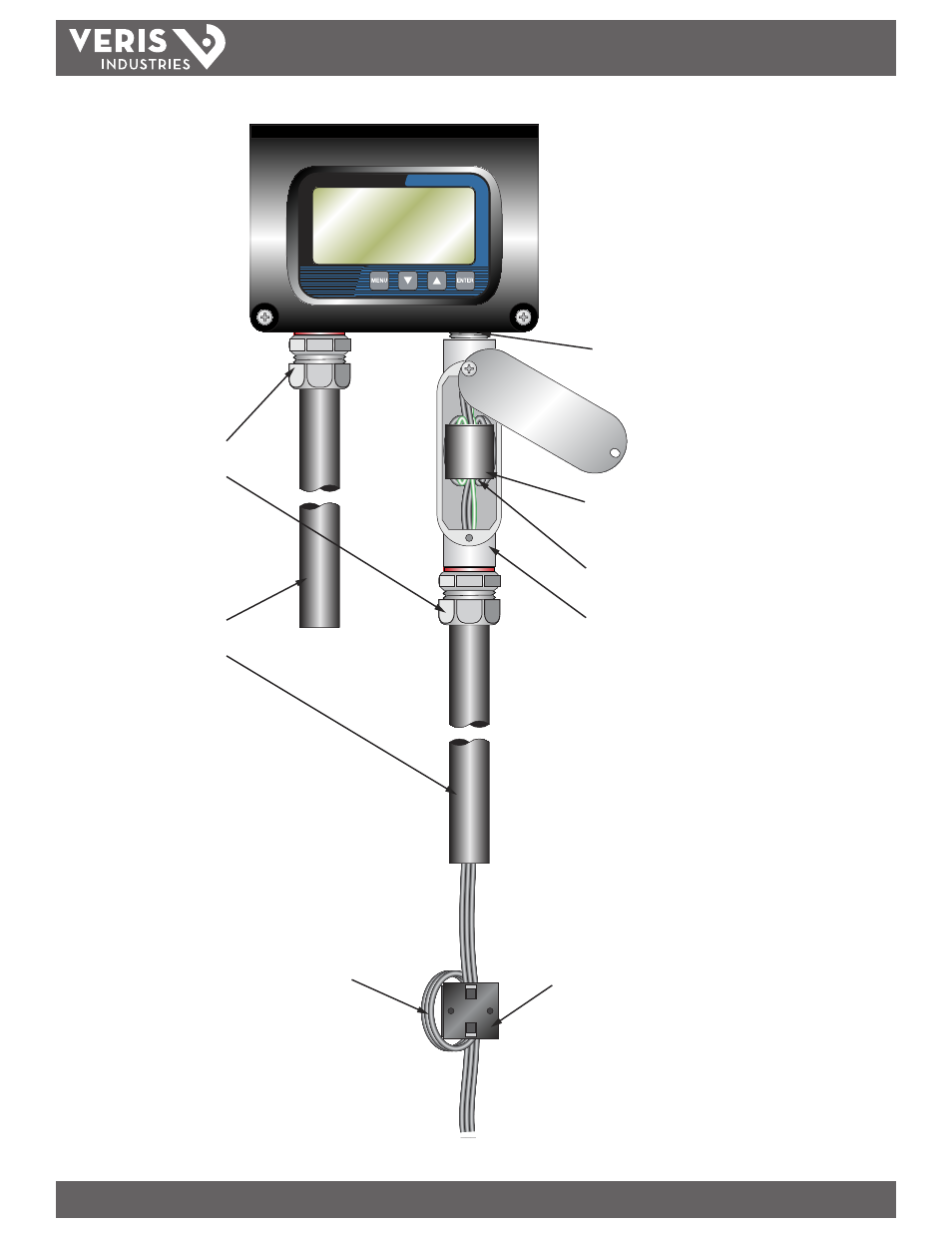

CE Compliance Drawings

LOOP WIRES THROUGH

FERRITE BEAD ONE TIME

FERRITE BEAD

STEWARD P/N: 28A2024-0A2*

MALE CONDUIT FITTING

STEEL CITY P/N: LT701*

ARMOURED CONDUIT

ANACONDA 1/2" UA GRAY*

1/2" X 1-1/8" SS NPT NIPPLE

LOOP WIRES THROUGH

FERRITE BEAD TWO TIMES

FERRITE BEAD

STEWARD P/N: 28B1020-100*

OUTLET BODY

APPLETON ELECTRIC P/N: C19*
COVER

APPLETON ELECTRIC P/N: 190G*
GASKET

APPLETON ELECTRIC P/N: GASK1941*

* OR EQUIVALENT

Figure A-11.1 - CE Compliance Drawing For aC Powered Meters
