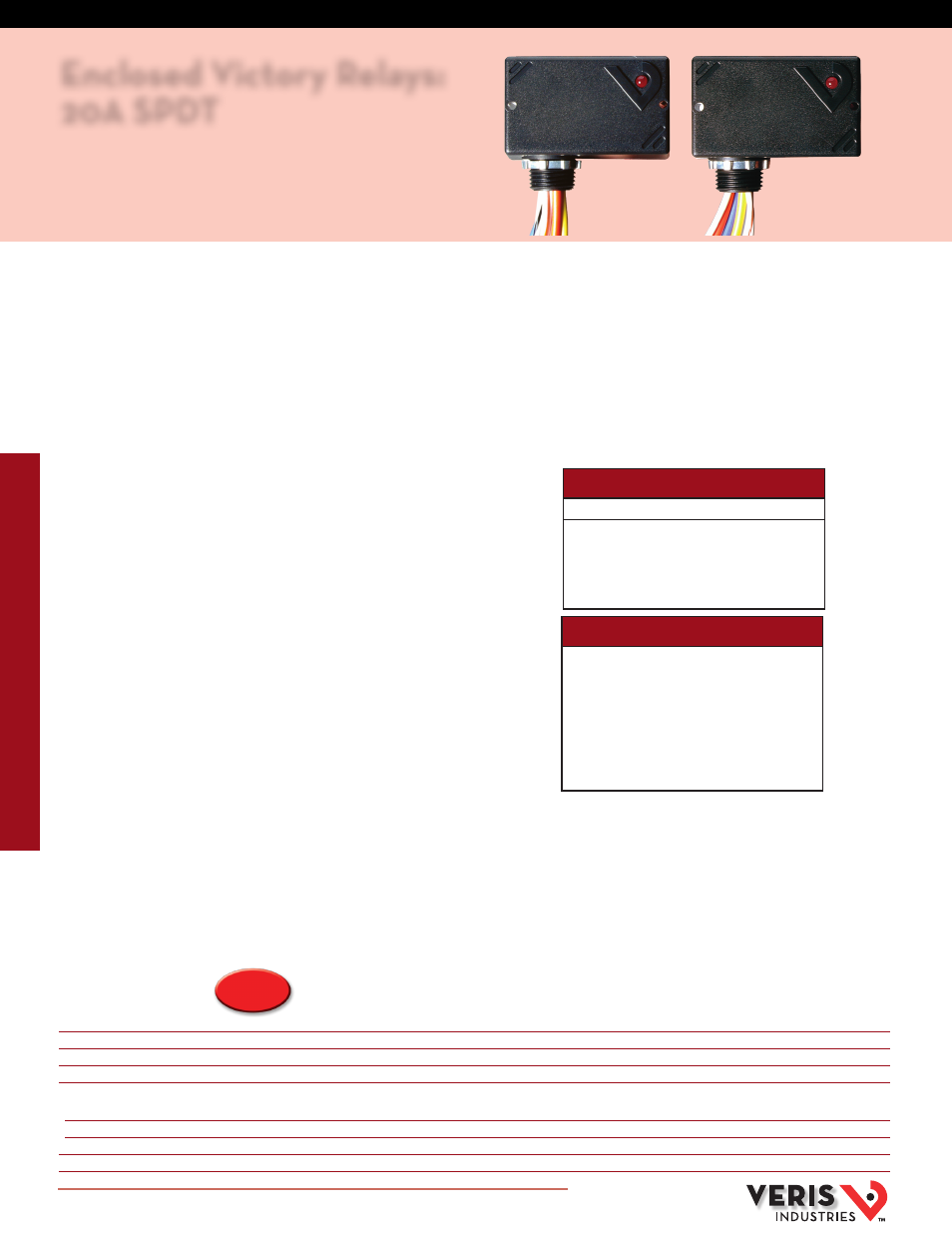

Enclosed Victory Relays:
20A SPDT
FEATURES
●
Sleek field enclosure reduces the need for panel space
●
The nipple mount feature allows the V120/220 Series to be mounted to any
electrical enclosure
●
HP Ratings make the V120/V220 ideal for control of fractional HP motors
●
Flexible tinned stranded wire...fits easily in tight spaces and provides secure
connections to wire nuts
●
UL508 Listed...designed and listed for field installation...makes electrical
inspection a snap
DESCRIPTION
The Victory 120 and 220 20A SPDT enclosed relays combine a power duty relay
with a high level of field-selectability and versatility. The device is quick and easy
to install using the threaded nipple mount. With no need for a dedicated field
enclosure, this series is ideal for retrofit projects.
APPLICATIONS
●
Command contactors
●
Control motors
●
Isolation
●
Device interlocking
●
Relay logic
●
Sense voltages for alarm conditions
SPECIFICATIONS
Operating Temperature Range
-34° to 55°C (-29° to 131°F)
Operating Humidity Range
10-90% RH non-condensing
Expected Relay Life
Electrical (@ rated current) 100,000 cycles; Mechanical (unpowered) 10,000,000 cycles
Relay Status
LED ON=energized
Wire Specifications:
Lead Length
14” (356 mm) min.
Gauge
UL1015; Coil: 18 AWG; Contacts: 12 AWG
Insulation Class
600VAC RMS
Agency Approvals
UL 508
Year
Warranty
5
Great For External
Mount Applications
V120
V220
Voltage
Coil Current
AC
DC
24V.......................................... 75mA
32mA
120V........................................ 42mA
-
208V........................................ 36mA
-
277V........................................ 49mA
-
TYPICAL
COIL
PERFORMANCE
CONTACT RATINGS
Resistive.............. 20A@277VAC, 28VDC
Motor.................... 120VAC, 1HP
277VAC, 2HP
Pilot Duty............. A300
Ballast.................. 277VAC, 20A N.O.
277VAC, 10A N.C.
Tungsten............... 120VAC, 10A N.O.
120VAC, 2A N.C.
