VERIS INDUSTRIES
800.354.8556 +1 503.598.4564 www.veris.com
DESCRIPTION
The Hawkeye 931 and 951 provide accurate load trending information with a
proportional 4-20mA output signal. These devices offer three amperage ranges for
versatility, with easy slide-switch selection. The command relay is fully integrated in
the device, but it is isolated from the current sensor. This combination makes these
products ideal for start/stop control and status monitoring of motors, using one
device instead of two.
APPLICATIONS
● Load trending
● Motor control
● Positive proof of flow
FEATURES
● Loop-powered analog current sensor with integral start/stop command relay
● Reduces the number of installed components...saves time and space
● Self-gripping split-core for fast retrofit installation...no need to remove
conductor
● One device to install for start/stop & status...reduces installation charges
● Power the current sensor and receive the 4-20mA signal with only two wires...
fewer wires required than with traditional 3-wire sensors
● Selectable factory calibrated ranges up to 120A for increased flexibility and
resolution
● Factory calibrated switch-selectable ranges (30/60/120A) for high resolution and
installation ease
●
No jumpers on unit...reduce installation error
● Removable mounting bracket for installation flexibility
● Bracket can be installed in three different configurations...added flexibility
● Command relay switches up to 5A@250VAC
● 5-year warranty
SENSED AMPS
30/60/120A*
4mA
0A
20mA
SENSOR OUTPUT
*Factory calibrated ranges selected
with the amperage range switch
Load Trending And Control
Relay In One Package
Maximize Reliability
Minimize Installed Cost
SPECIFICATIONS
Sensor Power 30mA (max.)@12-30VDC
Insulation Class 600VAC RMS
Frequency Range 50/60 Hz
Temperature Range -15° to 60°C (5° to 140°F)
Humidity Range 10-90% RH non-condensing
Accuracy ±2% F.S. from 10% to 100% (selected range)
Response Time 2 sec.
Terminal Block Wire Size 24-14 AWG (0.2 to 2.1 mm 2 )
Terminal Block Torque 3.5 to 4.4 in-lbs (0.4 to 0.5 N-m)
Agency Approvals UL 508 open device listing
Do not use LED status indicators as evidence of applied voltage
Current Sensors with Relay:
4-20mA Analog Output
Year
Warranty
5
H931

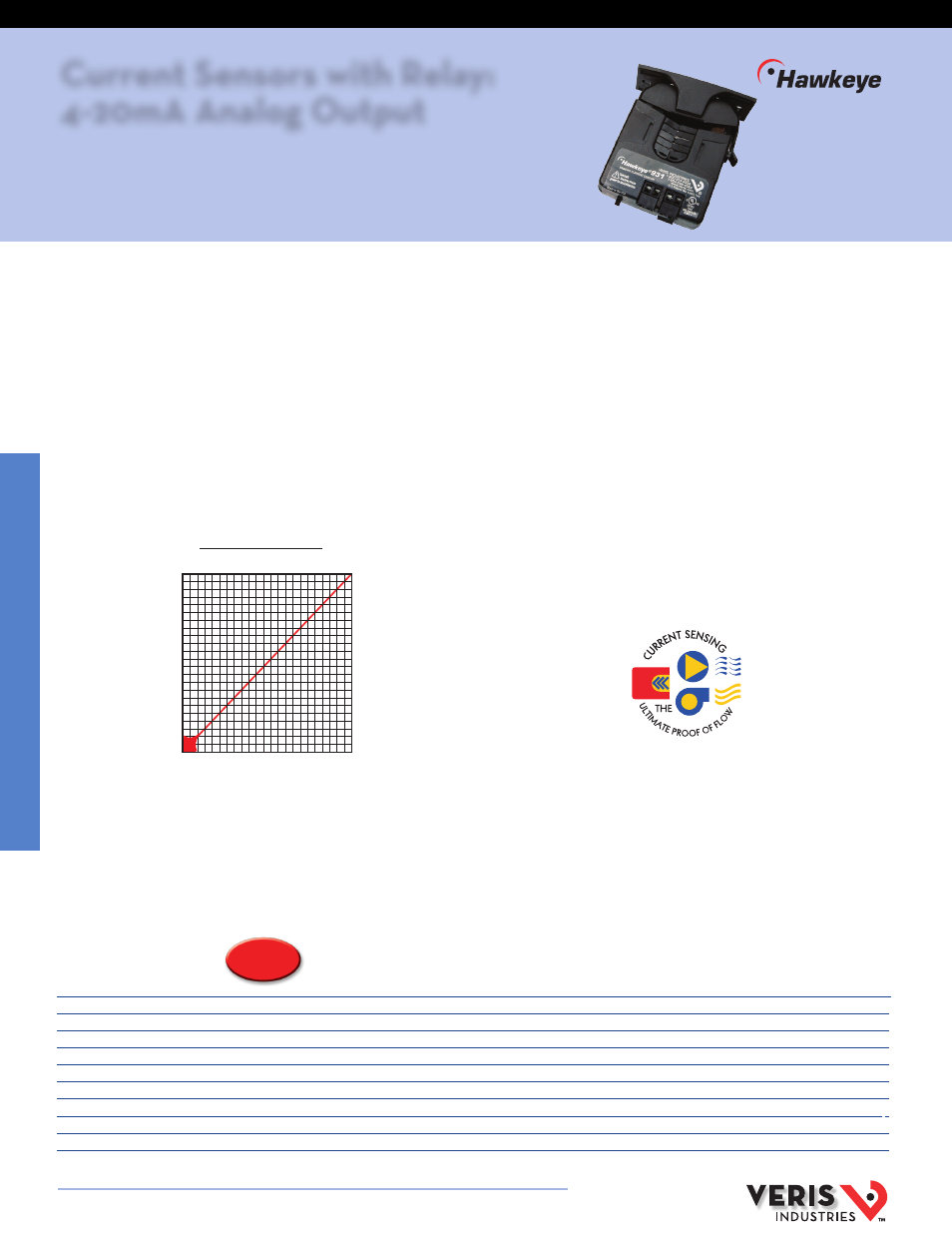

EXAMPLE LINEAR OUTPUT
Scale software as shown
H931 & H951
TM
HQ0001766.C 08131
