INSTALLATION GUIDE

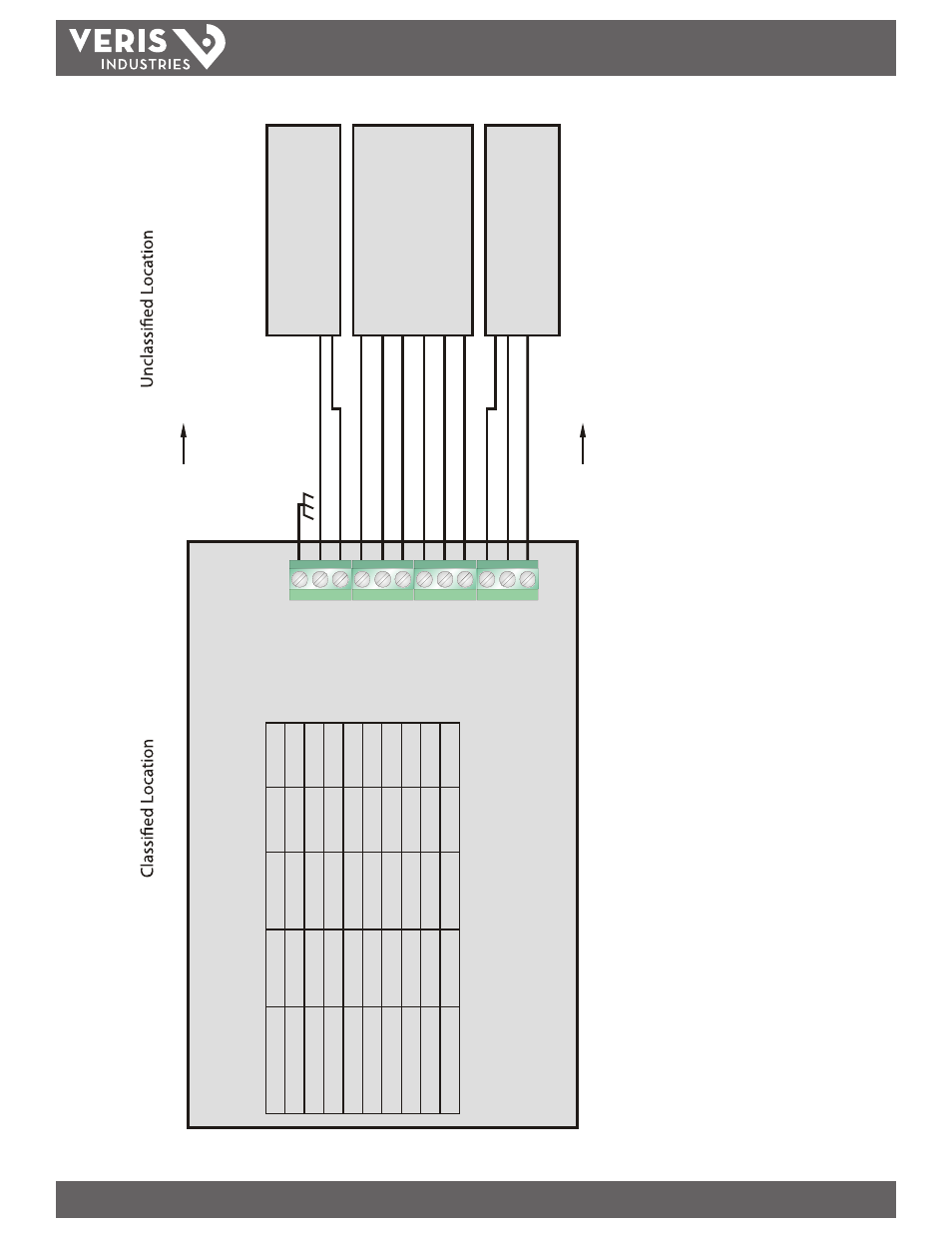

Information shown on this drawing is provided to indicate wiring requirements to comply with the National Electrical Code® (NEC) Article 500, and the Canadian Electric Code (CEC) Part I and Part II.

CONTROL DRAWING,

CLASS I DIV 2 INSTALLATION; AC POWERED

NAME:

Earth Gnd.

90 - 265 Vac In

Control 2 Out

Freq. Out

Control 1 Out

Signal Gnd.

AC Neutral

4 - 20 mA Out

Reset

Total

In

Modbus Gnd.

Modbus B

Modbus

A

BY OTHERS

BY OTHERS

FSR1xxxx FLOW METER

Inputs

AC Power

Vmax

265 Vac

Imax

500 mA

Ci

0.0 uF

Li

0.0 uH

Tot

al Reset

28 Vdc

25 mA

0.0 uF

0.0 uH

Outputs

Frequency

Vo

c

28 Vdc

Isc

2.8 mA

Ca

3.3 uF

La

100 mH

Tot

al Pulse

28 Vdc

2.8 mA

3.3 uF

100 mH

4-20 mA

28 Vdc

22 mA

3.3 uF

100 mH

AC POWER SOURCE

Modbus Interface must meet wiring requirements

to comply with NEC Article 500

and the CEC Sections 18 and 18J.

{

Control 2

28 Vdc

2.8 mA

3.3 uF

100 mH

Control 1

28 Vdc

2.8 mA

3.3 uF

100 mH

ASSOCIATED APPARATUS

OTHER DEVICE

Fig

ur

e A

-6

.1 - C

on

tro

l D

ra

wi

ng (

Cla

ss 1

, D

iv I

I)

Control Drawings
