FSRxxxx SERIES

Z205739-0D

PAGE 36

05131

Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

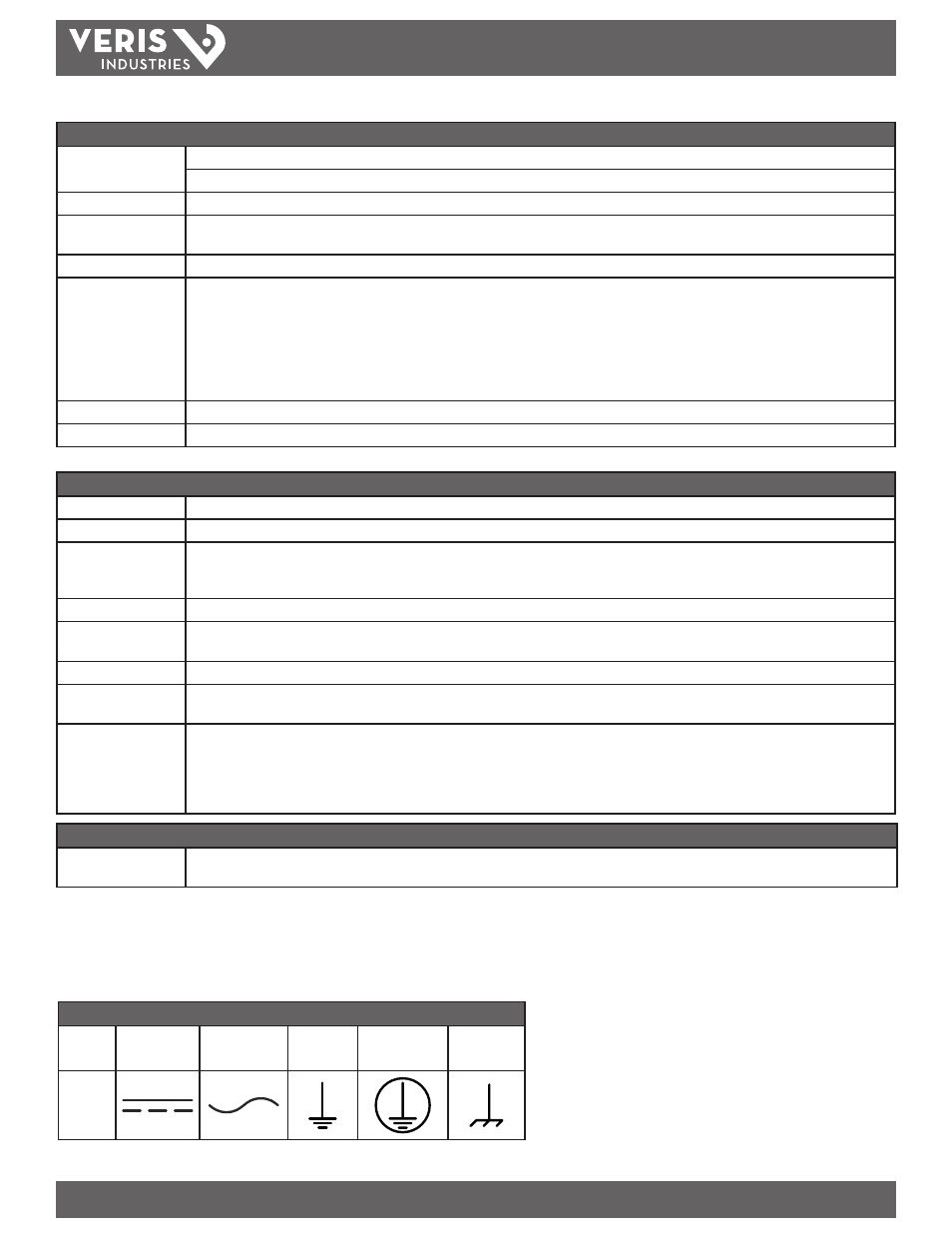

INSTALLATION GUIDE

Monitor

Input/Output
(FSR1 monitors)

Rate Pulse: Open collector, 0 to 1,000 Hz maximum; 12 bit resolution,1.0 A max. Can span negative to positive rates. Square-wave or simulated turbine output.
Alarm Outputs (2): Open collector, configure as Error alarm, Rate alarm, Signal Strength alarm, or Total/Batch pulse.

Ambient Conditions

-40 °F to 185 °F (-40 °C to 85 °C), 0 to 95 % relative humidity (non-condensing).

Enclosure

Type: Type 4 (IP 65).
Construction: Powder-coated aluminum, polycarbonate, stainless steel, polyurethane.

Size

6.0” W x 4.4” H x 3.2.2” D (152 mm W x 112 mm H x 56 mm D).

Monitor Mounting

Type:
Wall: Nickel-plated steel mounting brackets.
Pipe: U bolt mounting.
Integral Transducer: Clamped around pipe.
Conduit holes:
½” NPT Female (2).
¾” NPT Female (1).

Response Time (Flow)

0.3 to 30 seconds, user configured, for 10 % to 90 % step change in flow.

Security

Keypad lockout, user selected 4 digit password code.

Transducers

Liquid Types

Most non-aerated, clean liquids.

Cable Length

Up to 990 ft (300 meters) Standard lengths 20, 50, 100 ft (6, 15, 30 meters)

Pipe Sizes

FST1, FST2, FST3: (Small pipe) ½”, ¾”, 1”, 1¼”, 1½”, 2” (ANSI Pipe, Copper Tube, Tube).
FST4: 2-24 inches.
FST5: 24 inch and larger.

Environment

IP 67/NEMA 6

Pipe Surface
Temperature

FST1, FST2, FST3: -40 °F to +185 °F (-40 °C to +85 °C).
FST4, FST5: -40 °F to +250°F (-40 °C to +121 °C).

Ambient Conditions

40 °F to 185 °F (-40 °C to 85 °C), 0 to 95 % relative humidity (non-condensing)

Housing Material

FST1, FST2, FST3: PVC, Ultem®, and nylon cord grip, PVC cable jacket.
FST4, FST5: CPVC, Ultem®, and nylon cord grip, PVC cable jacket.

Approvals

FST4, FST5 only: CSA Class 1, Div 1, Groups C & D; Requires intrinsically safe transducer kit with barrier.
UL 1604: Electrical Equipment for Use in Class I and II, Division 2, and Class III Hazardous (Classified) Locations.
CSA C22.2 No. 213: Non-Incendive Electrical Equipment for Use in Class I, Division 2 Hazardous Locations.
EN 60079-0: Electrical Apparatus for Explosive Gas Atmospheres Part 0: General Requirements
EN60079-15: Electrical Apparatus for Explosive Gas Atmospheres Part 15: Electrical Apparatus with Type of Protection “n”.

Software Utilities

USP

Utilized for configuration, calibration and troubleshooting.
Compatible with Windows® 95, Windows® 98 Windows® 2000 Windows®, Windows® XP, Windows® Vista, and Windows® 7.

Electrical Symbols

Function

Direct

Current

Alternating

Current

Earth

(Ground)

Protective

Ground

Chassis

Ground

Symbol
