INSTALLATION GUIDE
Page 1 Page 2

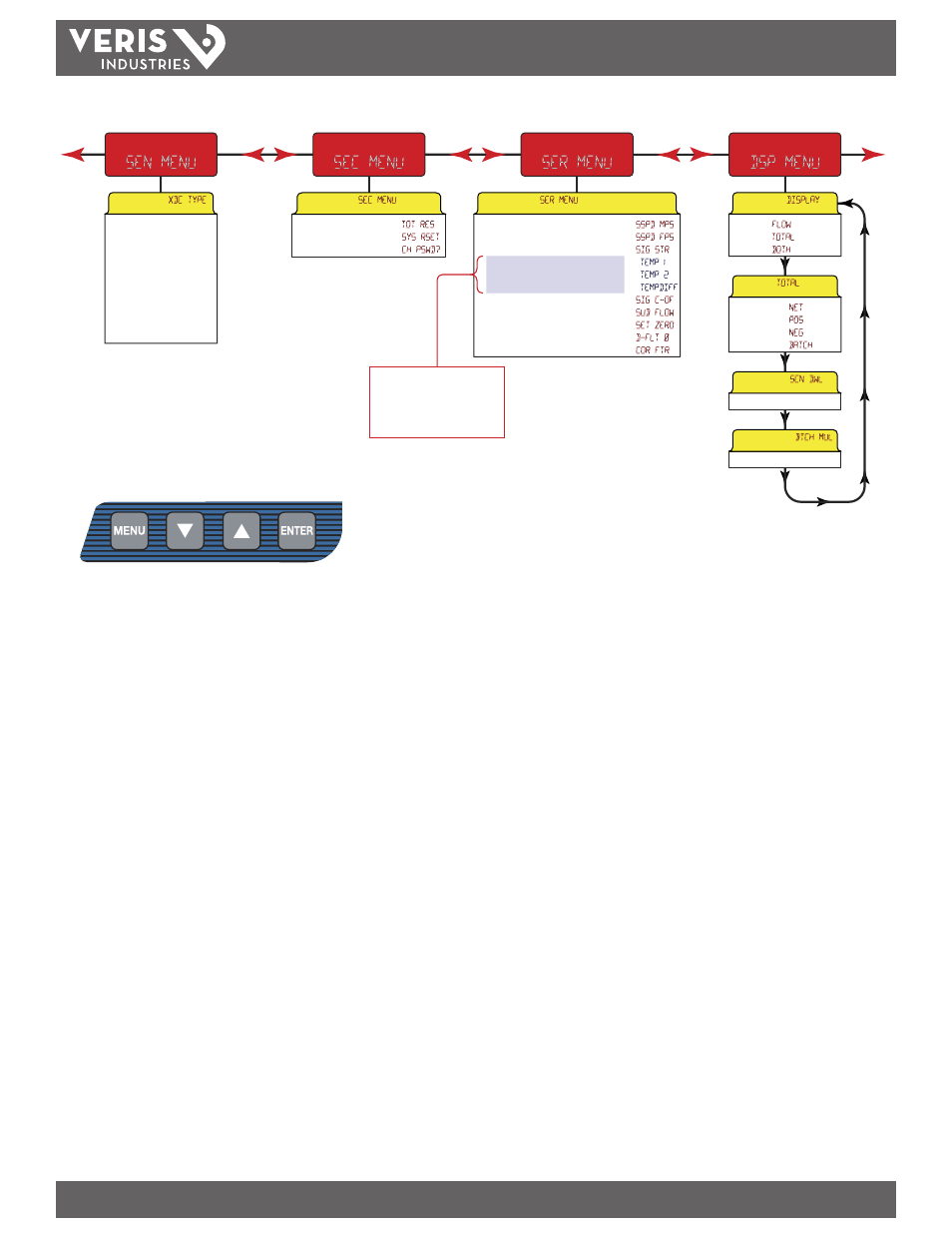

DISPLAY MENU SENSOR MENU SECURITY MENU SERVICE MENU
Standard 1 MHz
Large Pipe 500 kHz
High Temp 1 MHz
Copper Tube 2 MHz
Small Pipe 2 MHz
Tubing 2 MHz
1/2” Tube 2 MHz
1/2” Pipe 2 MHz
2” Pipe 1 MHz
2” Tube 1 MHz
XDC TYPE
Transducer Type Selection
TOTAL RESET
SYSTEM RESET
CHANGE PASSWORD
SEC MENU
Security Menu
DISPLAY
Items Shown on Display
FLOW
TOTAL
BOTH
SCN DWL
Display Dwell Time
SCAN DWELL (1-10)
NET
POSITIVE
NEGATIVE
BATCH
TOTAL
Totalizing Mode
BTCH MUL
Batch Multiplier
BTCH MUL (1-32,000)
SER MENU
Service Menu
SOUND SPEED MPS
SOUND SPEED FPS
SIGNAL STRENGTH
TEMPERATURE 1
TEMPERATURE 2
TEMPERATURE DIFFERENCE
LOW SIGNAL CUT-OFF
SUBSTITUTE FLOW
SET ZERO
DEFAULT ZERO
CORRECTION FACTOR
Temperature readings
only appear when
RTD is selected as the
CHANNEL 2 choice.
