12.4.3 OSD Display

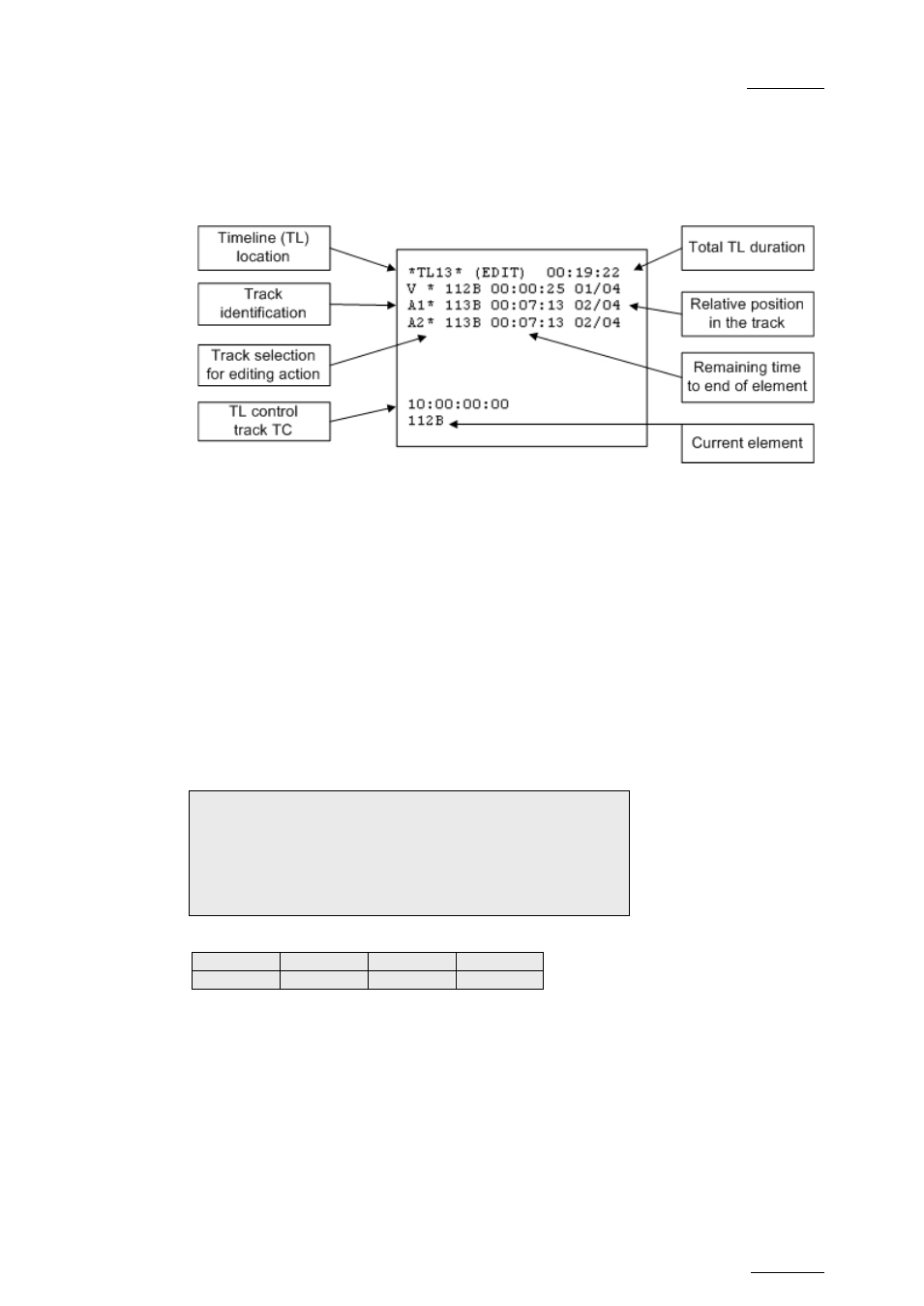

The following information is displayed on the OSD when the timeline is loaded in Timeline
Edit mode:
For each track:
• track description (V, A1, A2)
• asterisk next to the track description showing the selected tracks, on which the editing
action will be applied
• current clip ID
• remaining time
• relative position in the track.
12.4.4 LCD Information
The same information as on the OSD is displayed on the Remote Panel with the current
timecode of the clip in addition:
TL13 LEFT=00:00:00:00
V * 112B 01/04 00:00:25 11:15:15:11
A1* 113B 02/04 00:07:13 11:15:10:08
A2* 113B 02/04 00:07:13 11:15:10:08
The ABCD Soft keys on the Remote Panel are as follows:
Video Audio 1 Audio 2
The red blinking keys of the Remote Panel and the black background on the LCD display
show on which track(s) the Insert and Extend actions will be carried out. In other words, if
video only is selected when users do an insert, only the video will be inserted.
