Changing navigation sources:
1)
Press the CDI Softkey to change from GPS to VOR1 or LOC1. This places the light blue tuning box over the
NAV1 standby frequency in the upper left corner of the PFD.
2)
Press the CDI Softkey again to change from VOR1 or LOC1 to VOR2 or LOC2. This places the light blue tuning
box over the NAV2 standby frequency.
3)
Press the CDI Softkey a third time to return to GPS.

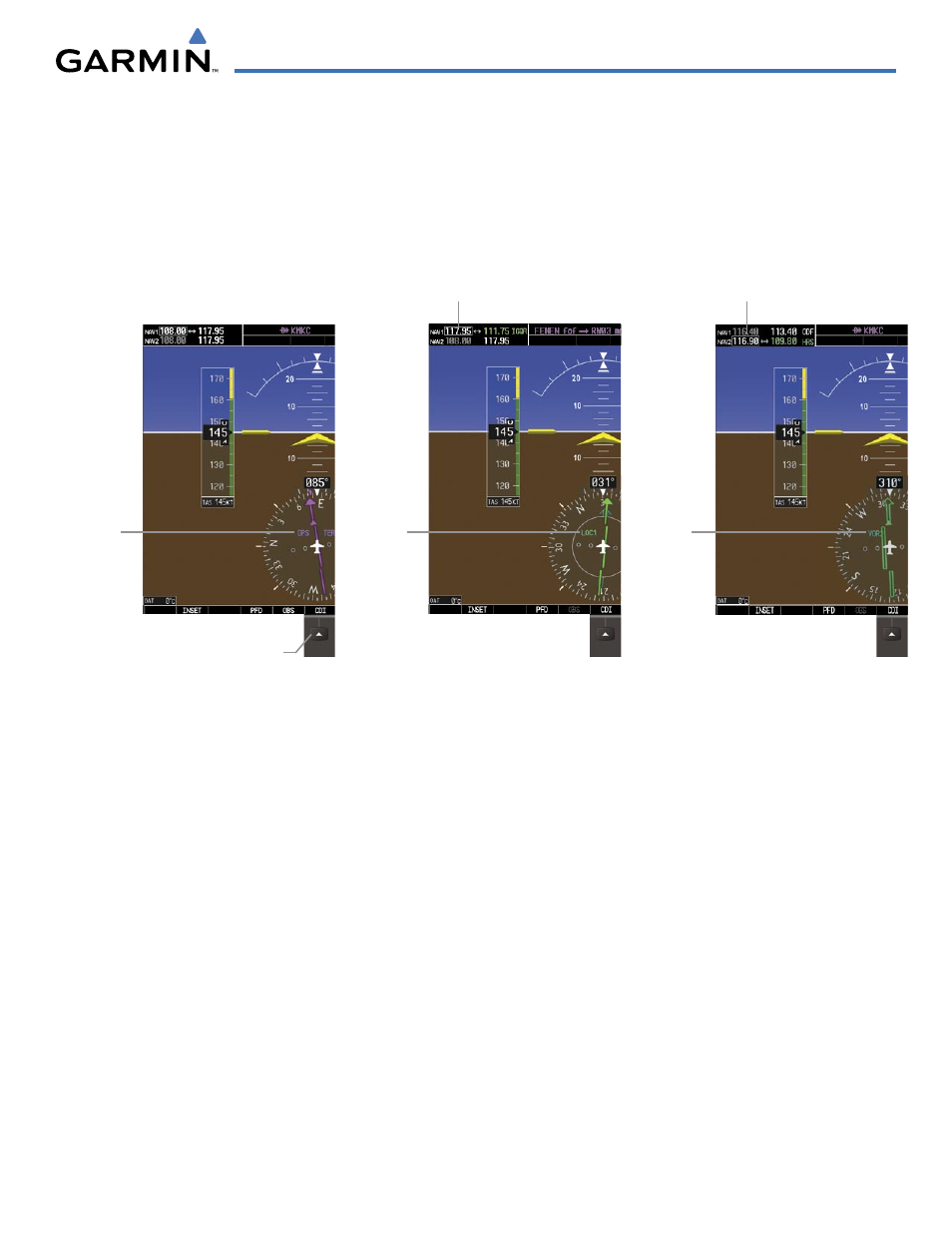

Figure 2-23 Selecting a Navigation Source
Pressing the
CDI Softkey Cycles
through Navigation Sources
GPS
Selected
NAV1 Selected for Tuning
LOC1
Selected
VOR2
Selected
NAV2 Selected for Tuning
The CDI has the same angular limits as a mechanical CDI when coupled to a VOR or localizer (LOC). When
coupled to GPS, the full scale limits for the CDI are defined by a GPS-derived distance. If the CDI exceeds the
maximum deviation on the scale (two dots) while coupled to GPS, the crosstrack error (XTK) is displayed below
the white aircraft symbol.
The system automatically switches from GPS to LOC navigation source and changes the CDI scaling accordingly
when all of the following occur:
• A localizer or ILS approach has been loaded into the active flight plan
• The final approach fix (FAF) is the active leg, the FAF is less than 15 nm away, and the aircraft is moving
toward the FAF
• A valid localizer frequency has been tuned
• The GPS CDI deviation is less than 1.2 times full-scale deflection
GPS steering guidance is still provided after the HSI automatically switches to LOC until LOC capture, up
to the Final Approach Fix (FAF) for an ILS approach, or until GPS information becomes invalid. Activating a
Vector-to-Final (VTF; see the GPS Navigation Section) also causes the HSI to switch to LOC navigation source;
GPS steering guidance is not provided after this switch.
