GPS NAVIGATION
190-00692-00 Rev. B
5-116
Garmin G1000 Pilot’s Guide for Piper PA32
21)
Upon passing PYNON the approach procedure will automatically become active. The approach may be activated
at any point to proceed directly to the IAF. In this example, the aircraft has progressed through the final
waypoint of the arrival and the flight plan has automatically sequenced to the IAF as the active leg, activating
the approach procedure (see Figure 5-122).

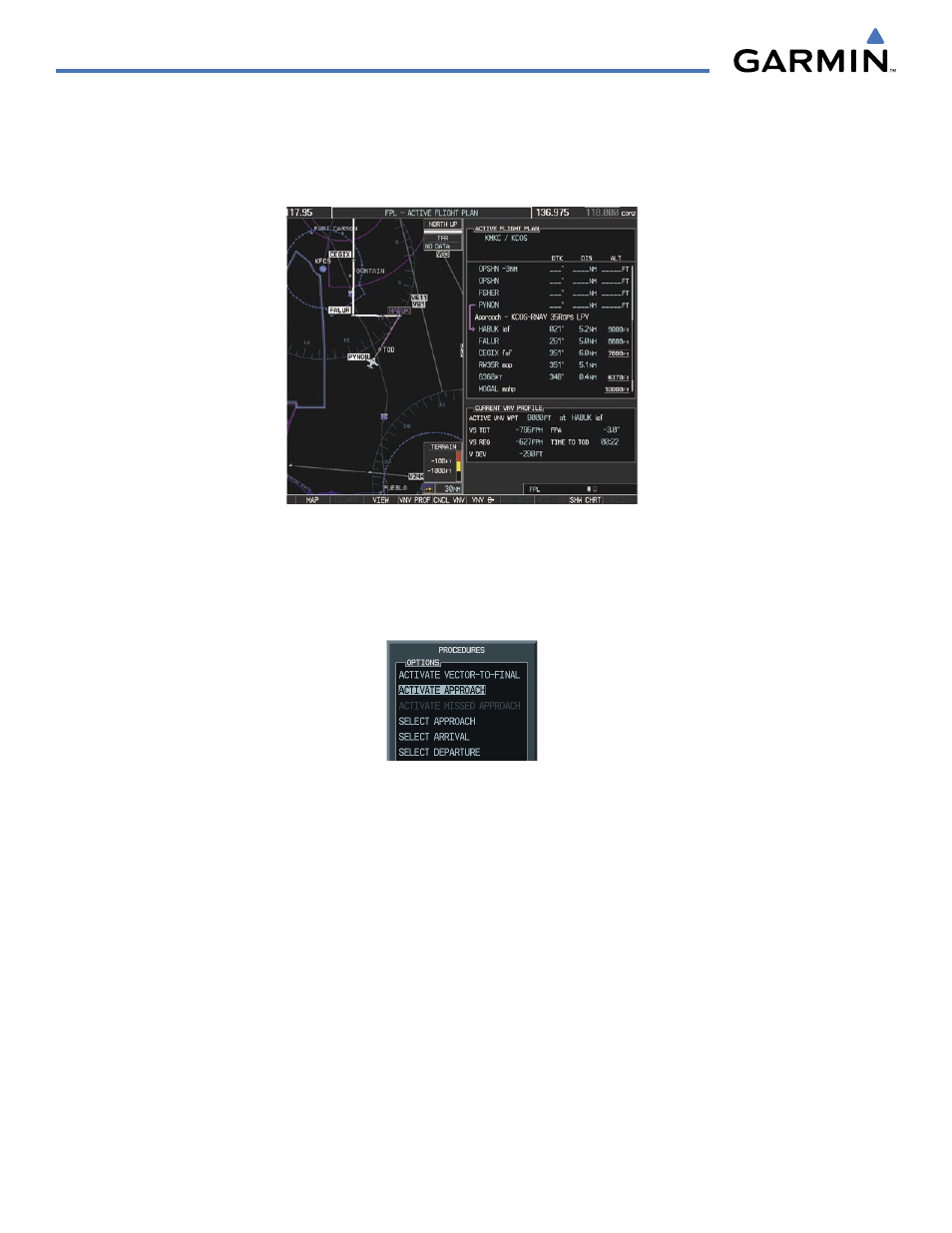

Figure 5-122 Approach Leg is Now Active
To manually activate the approach procedure, perform the following steps:
a)
Press the
PROC
Key.
b)
Turn the large
FMS
Knob to highlight ‘ACTIVATE APPROACH’ as shown in Figure 5-123.
Figure 5-123 Activate Missed Approach
c)
Press the
ENT
Key to activate the approach.
22)
The IAF is the next waypoint. At the TOD, establish a descent vertical speed as previously discussed in Step 16.
The aircraft altitude will be 9,000 feet upon reaching HABUK.
