Garmin G1000 Pilot’s Guide for Piper PA32 190-00692-00 Rev. B 8-8
ADDITIONAL FEATURES
TERMINAL PROCEDURES CHARTS
Selecting Terminal Procedures Charts:
1) While viewing the Navigation Map Page, Nearest Airport Page, or Flight Plan Page, press the SHW CHRT
Softkey.
OR :
2) Press the MENU Key to display the PAGE MENU.
3) Turn the large FMS Knob to scroll through the OPTIONS Menu to ‘Show Chart’.
4) Press the ENT Key to display the chart.

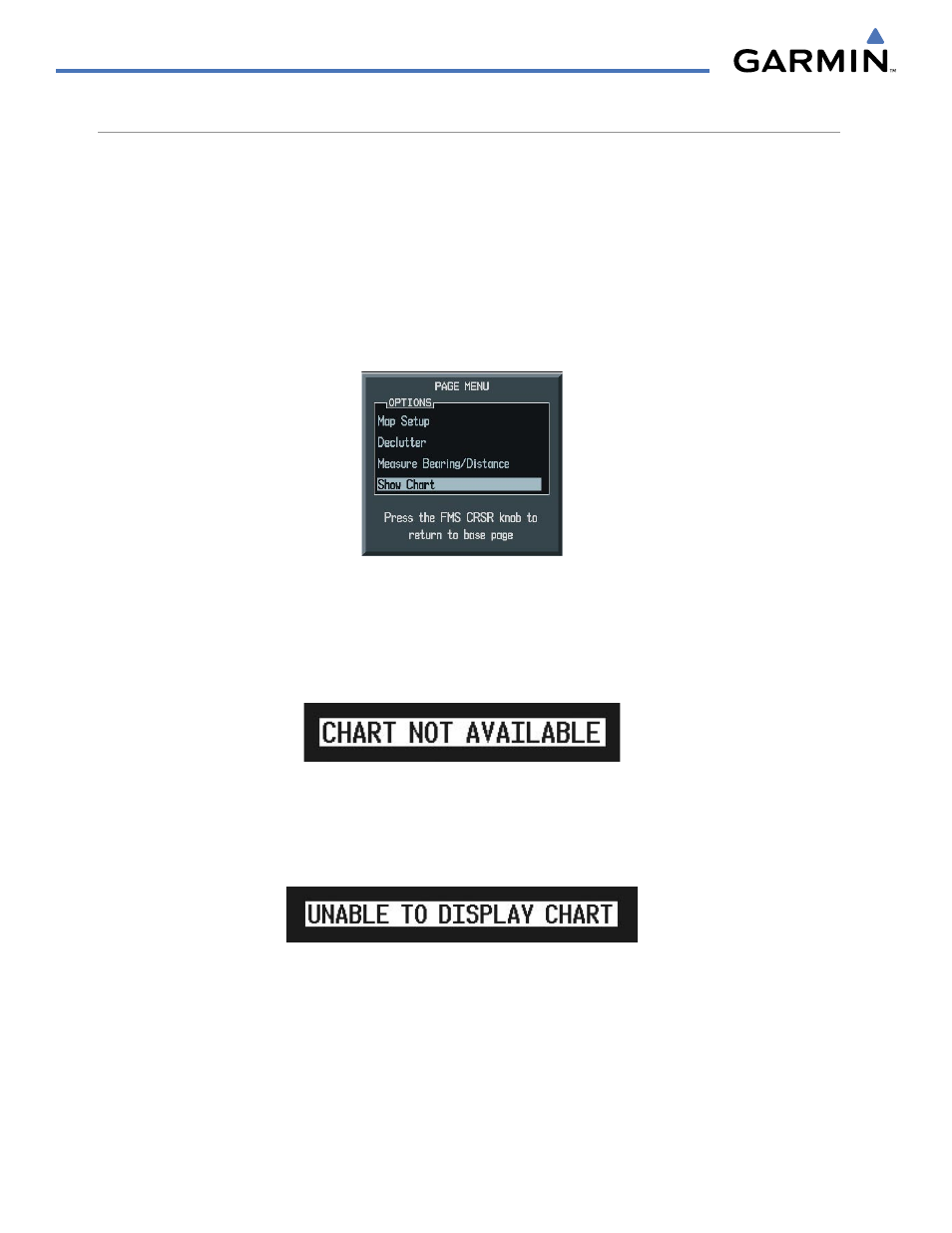

Figure 8-8 Navigation Map Page OPTIONS Menu
When no terminal procedure chart is available, the banner ‘CHART NOT AVAILABLE’ appears on the screen.
The ‘CHART NOT AVAILABLE’ banner does not refer to the Jeppesen subscription, but rather the availability of
a particular airport chart selection or procedure for a selected airport.
Figure 8-9 Chart Not Available Banner
If there is a problem in rendering the data (such as a data error or a failure of an individual chart), the banner
‘UNABLE TO DISPLAY CHART’ is then displayed.
Figure 8-10 Unable To Display Chart Banner
