Garmin G1000 Piper PA32 - Manual (Page 214)

GPS NAVIGATION
190-00692-00 Rev. B 5-80 Garmin G1000 Pilot’s Guide for Piper PA32

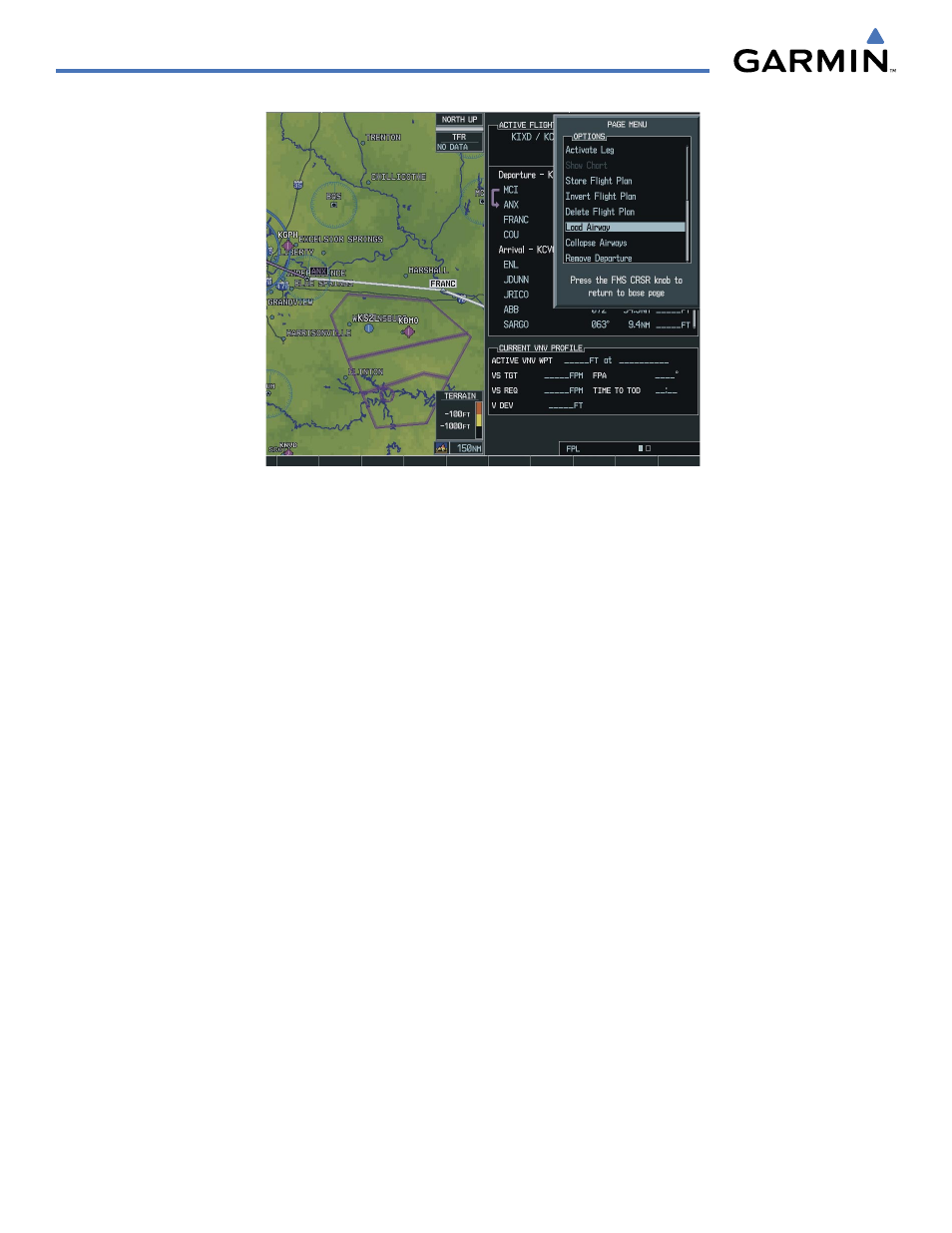

Figure 5-73 Load Airway Menu Option
Note: the “Load Airway” menu item will be selectable only when an acceptable airway entry waypoint has been
indicated (the waypoint ahead of the cursor position). Thus the “Load Airway” menu item will be greyed-out
in the following instances:
• An airway entry waypoint has not been established (there is no waypoint ahead of the cursor position)
• The airway entry waypoint is on an arrival or an approach procedure (it is OK if the airway insertion point is on
a departure or an airway)
• There are no selectable airways in the database starting from the airway entry waypoint.
Select an Airway from the list:
Use the FMS Knob and the ENT Key to select one of the airways from the list (V12 in this example).
Whenever the Airway Loading Page is accessed, it is initialized to select the airway from the list of airways
available from the selected airway entry point. In the example, there are seven airways selectable given the
entry waypoint (ANX). The Airway Loading page will select an airway and exit waypoint based on the
waypoints that are already in the flight plan.
