GPS NAVIGATION
190-00692-00 Rev. B 5-29 190-00692-00 Rev. B Garmin G1000 Pilot’s Guide for Piper PA32
5.3 PFD INSET MAP AND WINDOWS
INSET MAP
NOTE: The Inset Map is removed from the PFD any time aircraft pitch is greater than +30° or less than –20°,
or when a 65° bank angle is reached.
NOTE: Inset Map operations involving the display of traffic, terrain, and weather data are discussed in the
Hazard Awareness section.

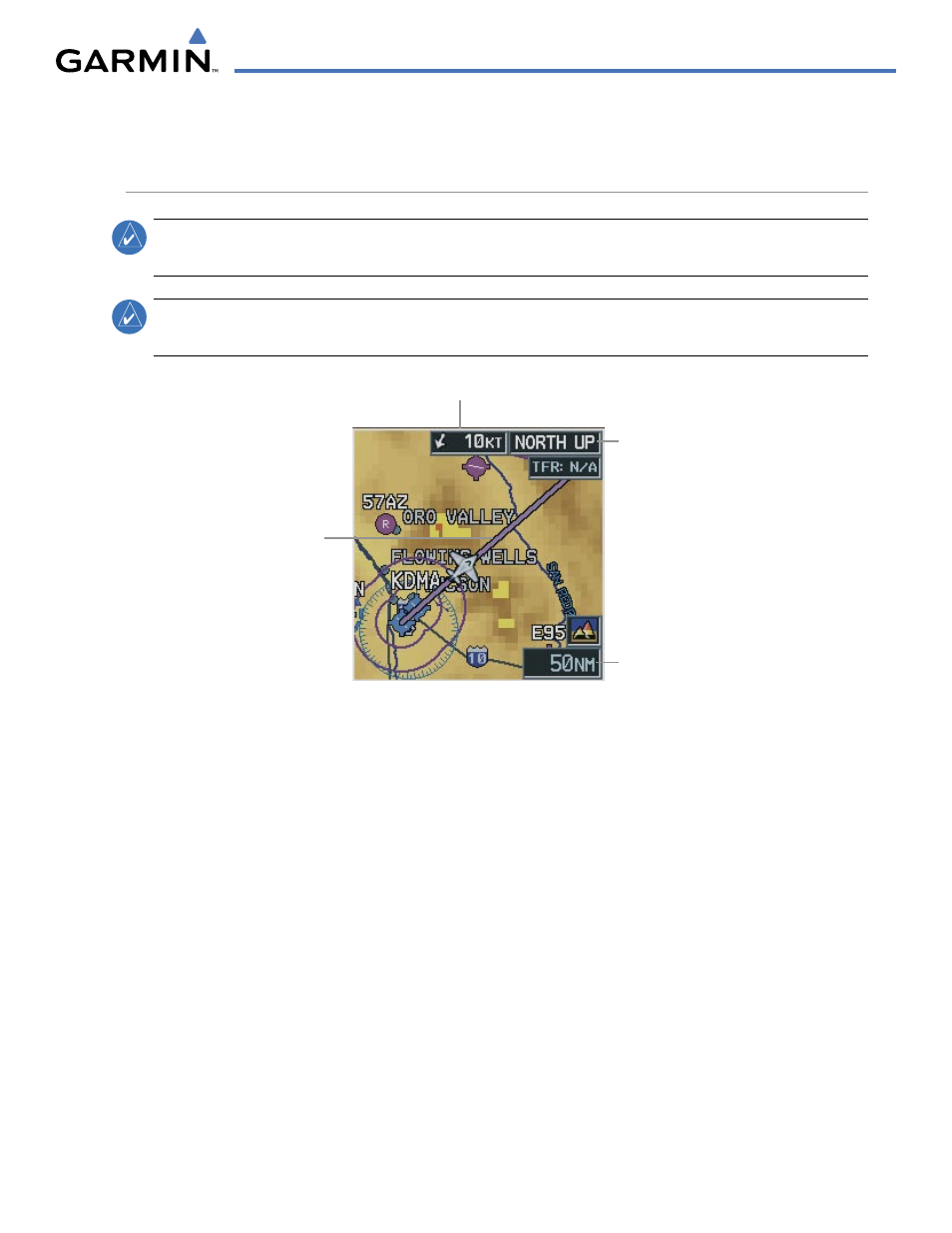

Figure 5-23 PFD Inset Map
Map Orientation
Map Scale
Active
Navigation
Route
Wind Direction
and Speed
The Inset Map can be displayed in the lower left corner of the PFD by pressing the INSET Softkey. Inset Map
features are enabled on the MFD (refer to the Navigation Map Setup Section for details).
The Inset Map Pop-up window can display the following information:
• Moving map
• Zoom scale legend
• Orientation
• Aircraft icon
• Topographic data
• Traffic data
• Weather data
• Terrain data
• Indication of which map features are enabled
• Active flight plan
• Track vector
• Wind direction/speed
• Latitude/longitude lines
• NAV range ring
• Fuel range ring (reserve; the fuel reserve rings are
enabled and disabled from the MFD only)
• Obstacle data
