GPS NAVIGATION

190-00692-00 Rev. B

5-105

Garmin G1000 Pilot’s Guide for Piper PA32

10)

At Lamar VOR (LAA) V263 will be intercepted. See Figure 5-102.

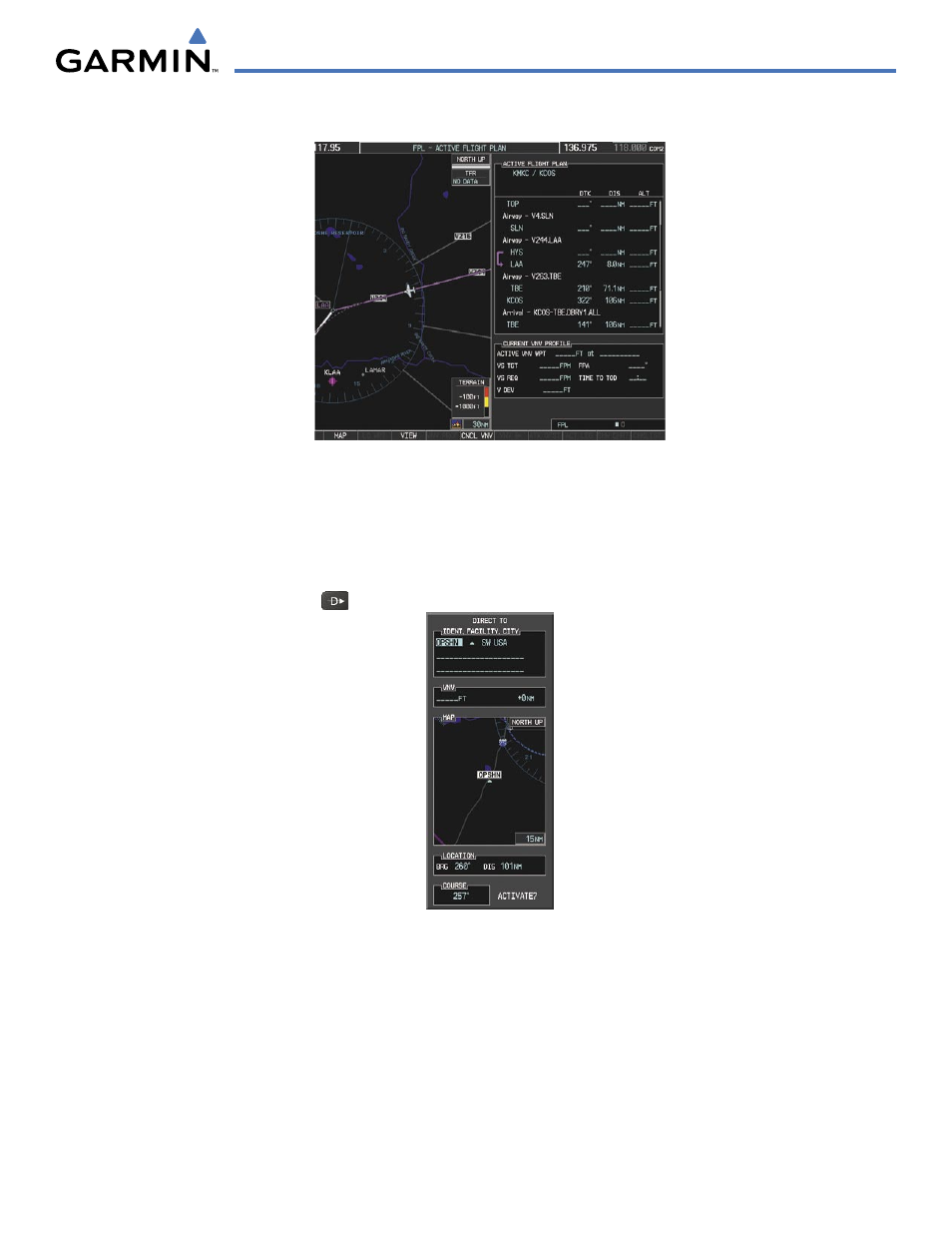

Figure 5-102 HYS to LAA Leg Active

11)

ATC grants clearance to proceed direct to OPSHN intersection to begin the arrival procedure. ATC advises to

expect an altitude of 10,000 feet at OPSHN.

a)

Press the FMS Knob to activate the cursor.

b)

Turn the large FMS Knob to select OPSHN in the flight plan list.

c)

Press the

Direct-to

(

)

Key. The Direct-to Window is now displayed as shown in Figure 5-103.

Figure 5-103 Direct To OPSHN

d)

Turn the large FMS Knob to place the cursor in the VNV altitude field as shown in Figure 5-104.
