SYSTEM OVERVIEW
ALT UNIT Displays softkeys for setting the altimeter and BARO settings to metric units
METERS Displays altimeter in meters
IN Displays the BARO setting as inches of mercury
HPA Displays the BARO setting as hectopascals
STD BARO Sets barometric pressure to 29.92 in Hg (1013 hPa if HPA softkey is
selected)
OBS Selects OBS mode on the CDI when navigating by GPS (only available with
active leg)
CDI Cycles through GPS, VOR1, and VOR2 navigation modes on the CDI
DME Displays the DME Tuning Window, allowing selection of the DME
XPDR Displays transponder mode selection softkeys
STBY Selects standby mode (transponder does not reply to any interrogations)
ON Selects Mode A (transponder replies to interrogations)
ALT Selects Mode C – altitude reporting mode (transponder replies to identification
and altitude interrogations)
GND Allows manual selection of ground mode in certain conditions
VFR Automatically enters the VFR code (1200 in the U.S.A. only)
CODE Displays transponder code selection softkeys 0-7
0 — 7 Use numbers to enter code
IDENT Activates the Special Position Identification (SPI) pulse for 18 seconds,
identifying the transponder return on the ATC screen
BKSP Removes numbers entered, one at a time
IDENT Activates the Special Position Identification (SPI) pulse for 18 seconds,
identifying the transponder return on the ATC screen
IDENT Activates the Special Position Identification (SPI) pulse for 18 seconds,
identifying the transponder return on the ATC screen
TMR/REF Displays Timer/References Window
NRST Displays Nearest Airports Window

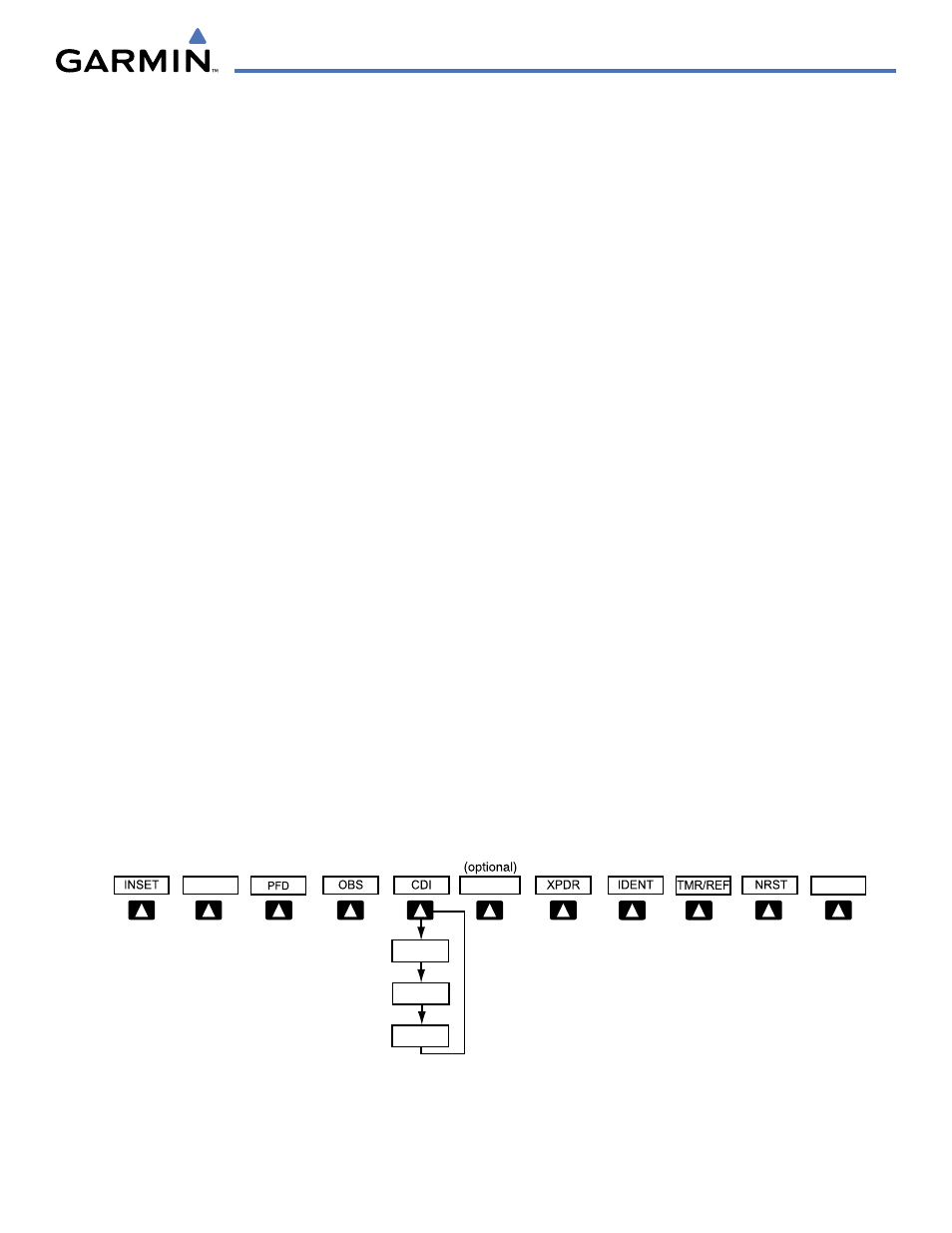

Figure 1-14 Top Level PFD Softkeys
VOR1
VOR2
GPS
DME ALERTS
