GPS NAVIGATION
190-00692-00 Rev. B 5-23 Garmin G1000 Pilot’s Guide for Piper PA32
NAVIGATION MAP OPERATIONS
S
ELECTING A
M
AP
R
ANGE

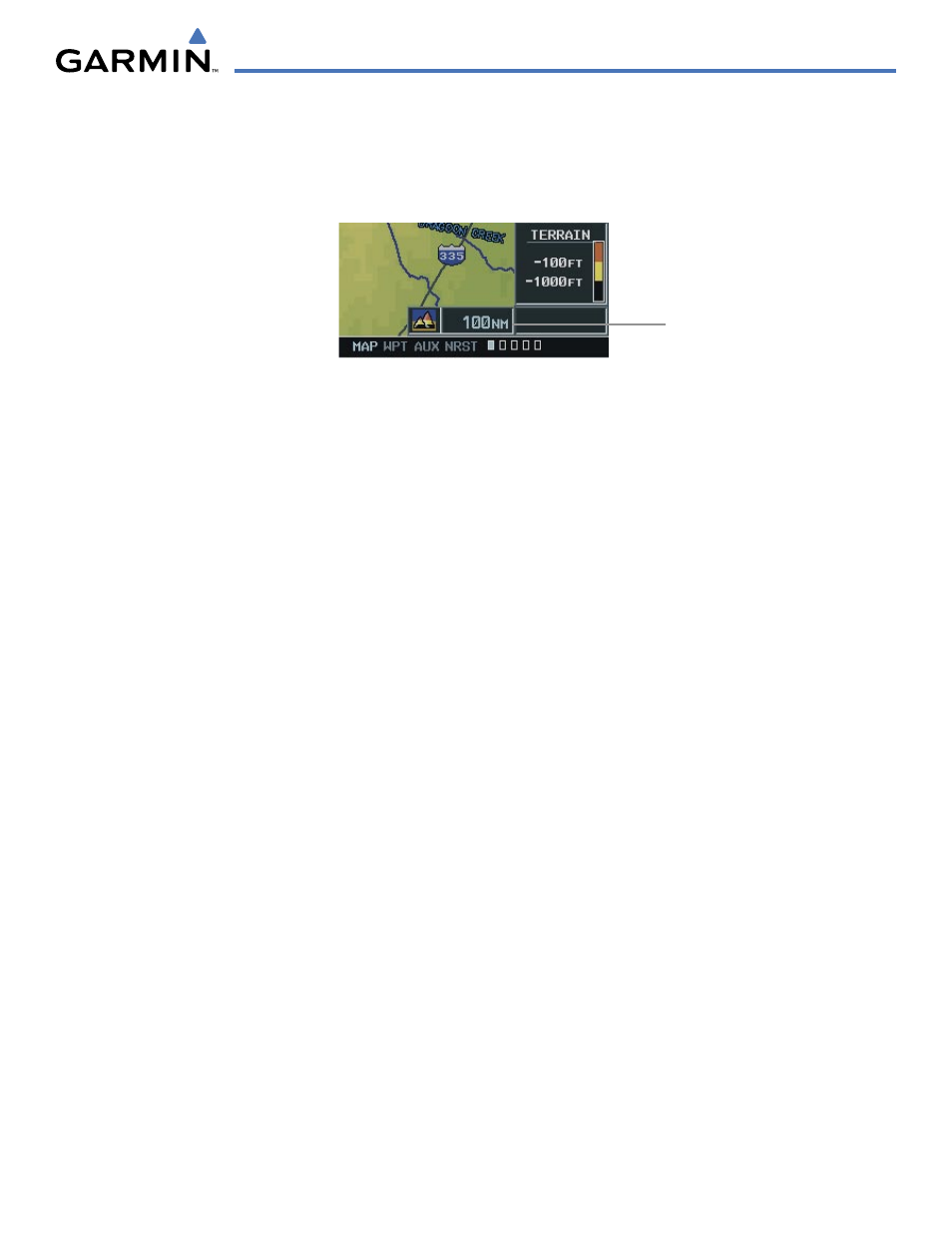

Figure 5-15 Map Range Indicator
Map Range
Indicator
The Navigation Map’s range has 28 different settings, from 500 feet to 2000 nm. The current range
is indicated in the lower right corner of the Navigation Map Page and represents the top-to-bottom
distance covered by the map . To change the map range turn the Joystick counter-clockwise to zoom in
( -, decreasing), or clockwise to zoom out (+, increasing).
