GPS NAVIGATION
190-00692-00 Rev. B 5-24 Garmin G1000 Pilot’s Guide for Piper PA32
D
ECLUTTERING THE
M
AP
The Navigation Map can be quickly “decluttered” by repeatedly pressing the DCLTR Softkey or by using
the Menu Option (Figure 5-16) until the desired detail is displayed.
Declutter Option

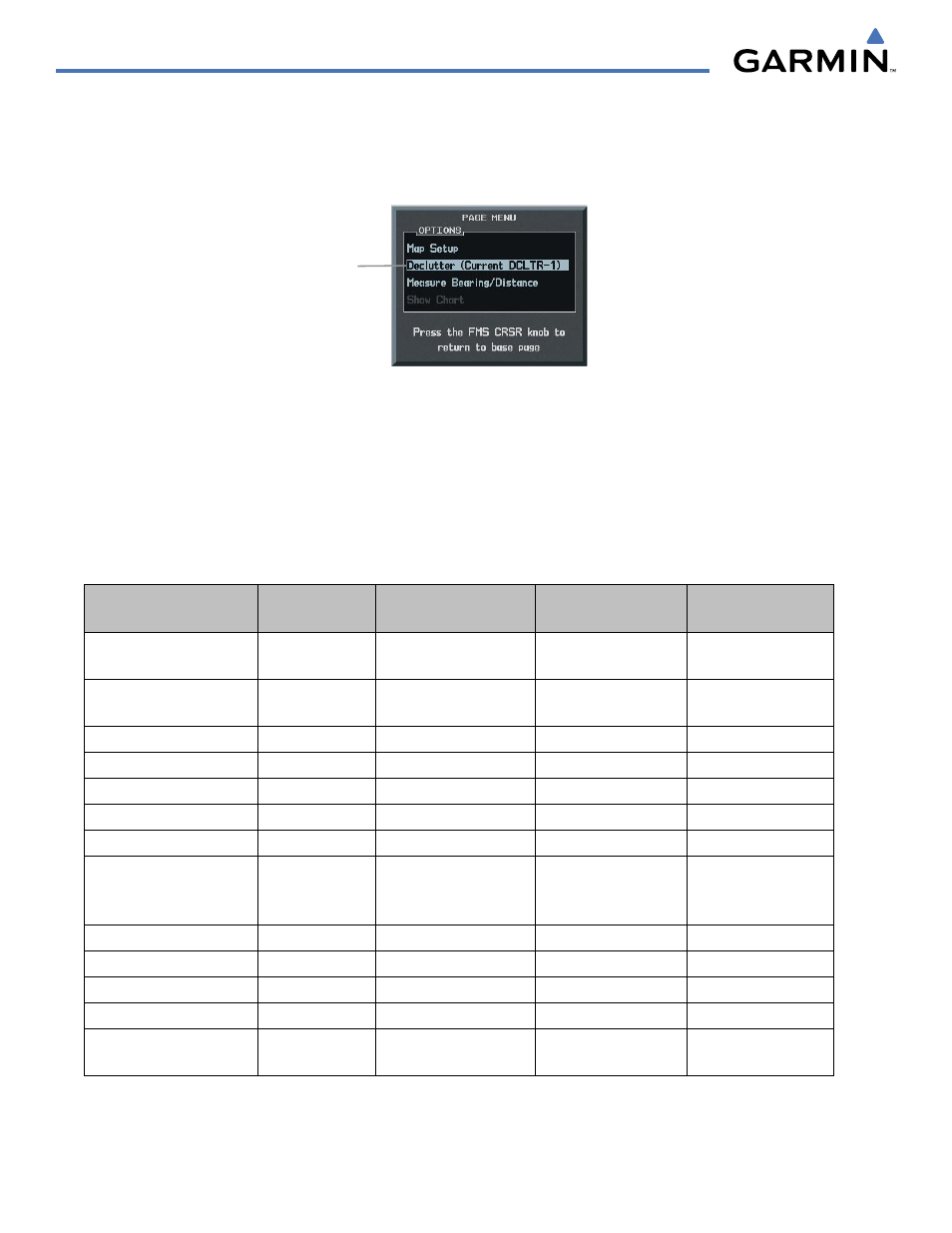

Figure 5-16 Map Declutter Option
The declutter level is displayed in the DCLTR Softkey and next to the Menu Option. Note that during an
instrument approach, automatic decluttering takes place. Table 5-1 lists the features that are turned off at
each declutter level. Note that some of the map features are automatically removed at certain zoom ranges
due to the map setup configuration for each map item. “SUA” listed in the following table stands for Special
Use Airspace. These are controlled airspaces, military zones, etc.
Map Features Always
Displayed
No Declutter Declutter (-1) Declutter (-2) Declutter (-3)
Flight Plan Route Lines All Map features
visible
River/Lakes Names Only User Waypoints Large Airports
Flight Plan Route
Waypoints
Land/Country Text Latitude/Longitude Grid Medium Airports
Rivers/Lakes Large City VORs Small Airports
Topography Data Medium City NDBs SUA Group 3
Terrain Proximity Data Small City Intersections SUA Group 4
Map Borders Not Affected SUA Group 0 Runway Labels
Bearing Line Freeways SUA Group 1
Lightning Strike Data
(when Stormscope
installed)
National Highways SUA Group 2
Nexrad Data Local Highways SUA Group 5
Traffic Symbols Local Roads SUA Group 6
Traffic Labels Local Road Labels SUA Group 7
Railroads Obstacles
Major Political
Boundaries
Table 5-1 Map Declutter Levels
