HAZARD AVOIDANCE
• ARC (120˚) View—Displays terrain and obstacles ahead of and 60˚ to either side of the aircraft flight path
(Figure 6-50).
Changing the viewing mode between 360° and Arc:
1) Select the TAWS Page.
2) Press the VIEW Softkey.
3) Press the 360 or ARC Softkey to select the desired view.
OR :
1) Press the MENU Key. The page menu is displayed with either ‘View Arc’ or ‘View 360º’. Press the ENT Key to
change the view.
2) Turn the Joystick clockwise to display a larger area or counter-clockwise to display a smaller area.

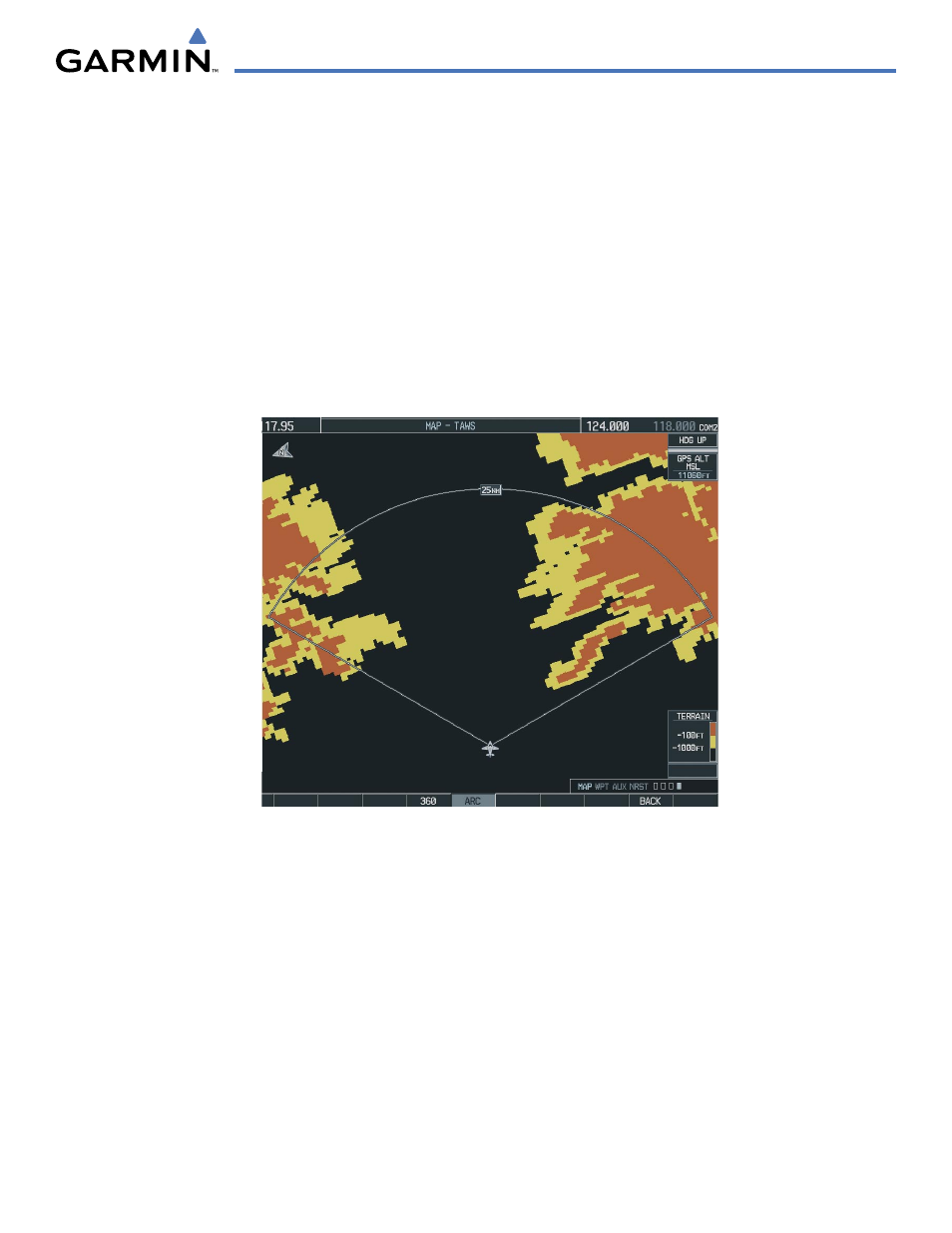

Figure 6-50 TAWS Page (Arc˚ View)
