Garmin G1000 Piper PA32 - Manual (Page 181)

GPS NAVIGATION
190-00692-00 Rev. B 5-47 Garmin G1000 Pilot’s Guide for Piper PA32
5.7 INTERSECTION INFORMATION (MFD)
NOTE: The VOR displayed on the Intersection Information Page is the nearest VOR, not necessarily the VOR
used to define the intersection.
Nearest VOR
INT Name
and Symbol
Intersection Information

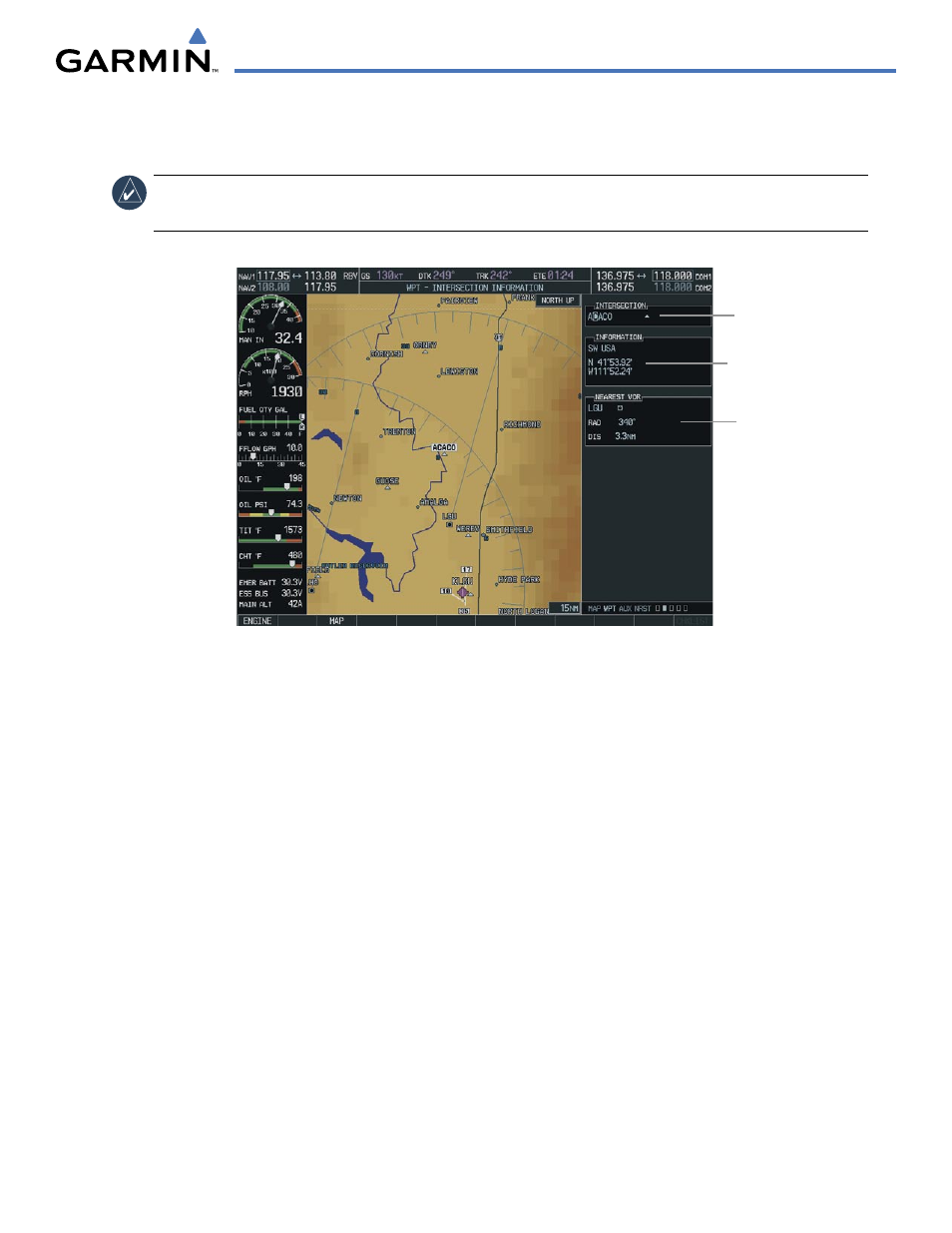

Figure 5-47 Intersection Information Page
Selecting an intersection:
1) Select the WPT Page Group.
2) Select the second rectangular page icon which is the Intersection Information Page.
3) Press the FMS Knob to activate the cursor.
4) Enter the name of the identifier.
5) Press t he ENT Key.
6) Press the FMS Knob to remove the flashing cursor.
