Garmin G1000 Pilot’s Guide for Piper PA32 190-00692-00 Rev. B 8-26
ADDITIONAL FEATURES
Examples of four possible Power-up Page conditions are shown in Figure 8-32. ‘ChartView Disables’ plus a
date in white, indicates chart data is current. This indication for normal operation shows how long the charts
may be viewed. ‘Chart data update available.’ in white, indicates the chart data cycle has expired within the
past week and the next chart cycle is available. ‘Chart data is out of date!’ in yellow, indicates charts are still
viewable, but approaching the disable date. ‘Chart data is disabled.’ in yellow, indicates the chart cycle has
expired and is no longer viewable.

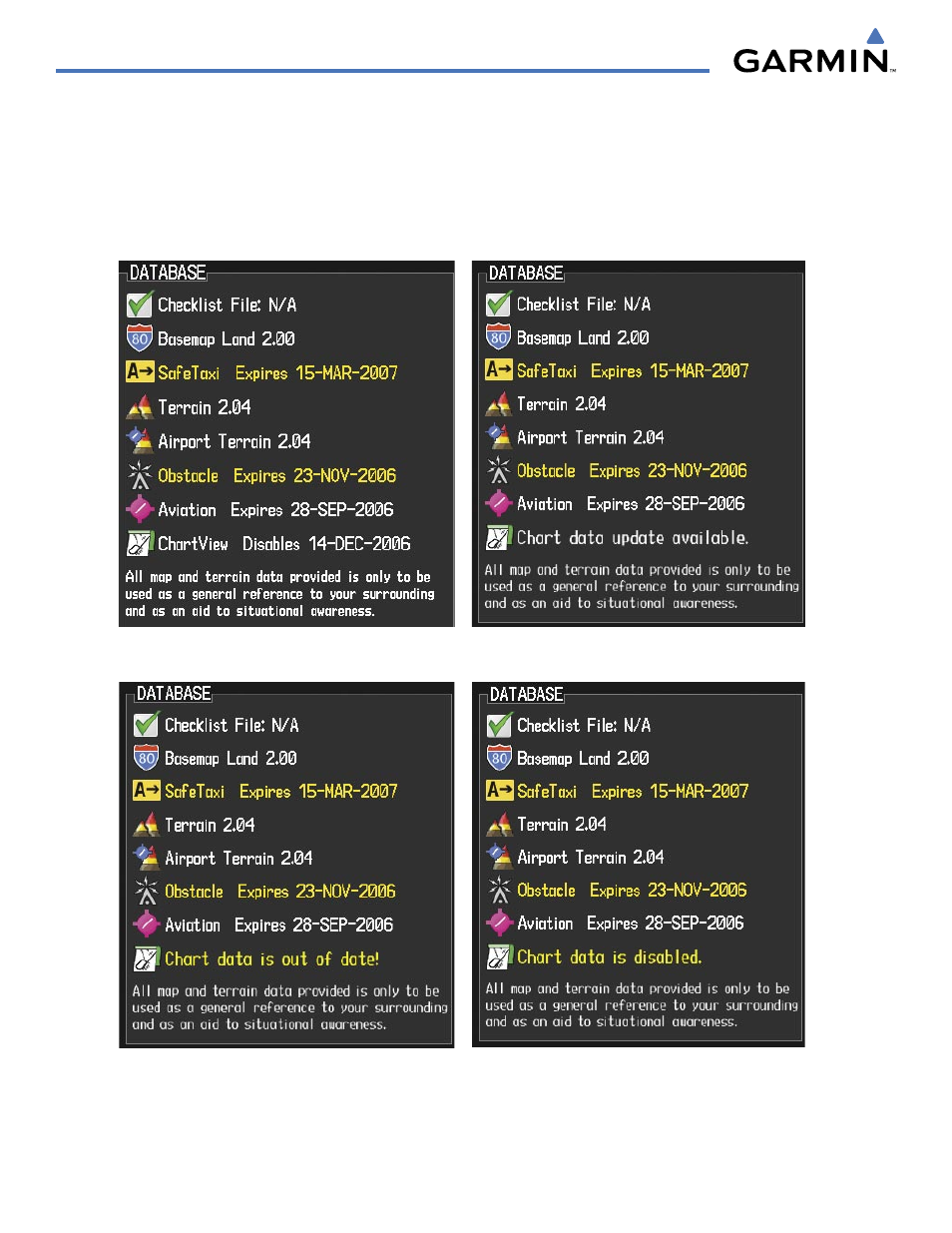

Figure 8-32 Examples of Power-up Page, ChartView Database
Chart Cycle has Expired,
Next Cycle is Available
ChartView Database is
Current and Available
Chart Cycle has Expired but is Still Viewable
for 70 Days from Expiration Date
Chart Cycle is No
Longer Viewable
