Garmin G1000 Pilot’s Guide for Piper PA32 190-00692-00 Rev. B 8-28
ADDITIONAL FEATURES
The other three possible AUX - System Status page conditions are shown in Figure 8-34. The ‘EXPIRES’
date, in yellow, is the revision date for the next database cycle. The ‘DISABLES’ date, in yellow, is the date that
this database cycle is no longer viewable. ‘REGION’ and ‘CYCLE’ ‘NOT AVAILABLE’ in blue, indicate that no
ChartView data is available on the database card or no database card is inserted.

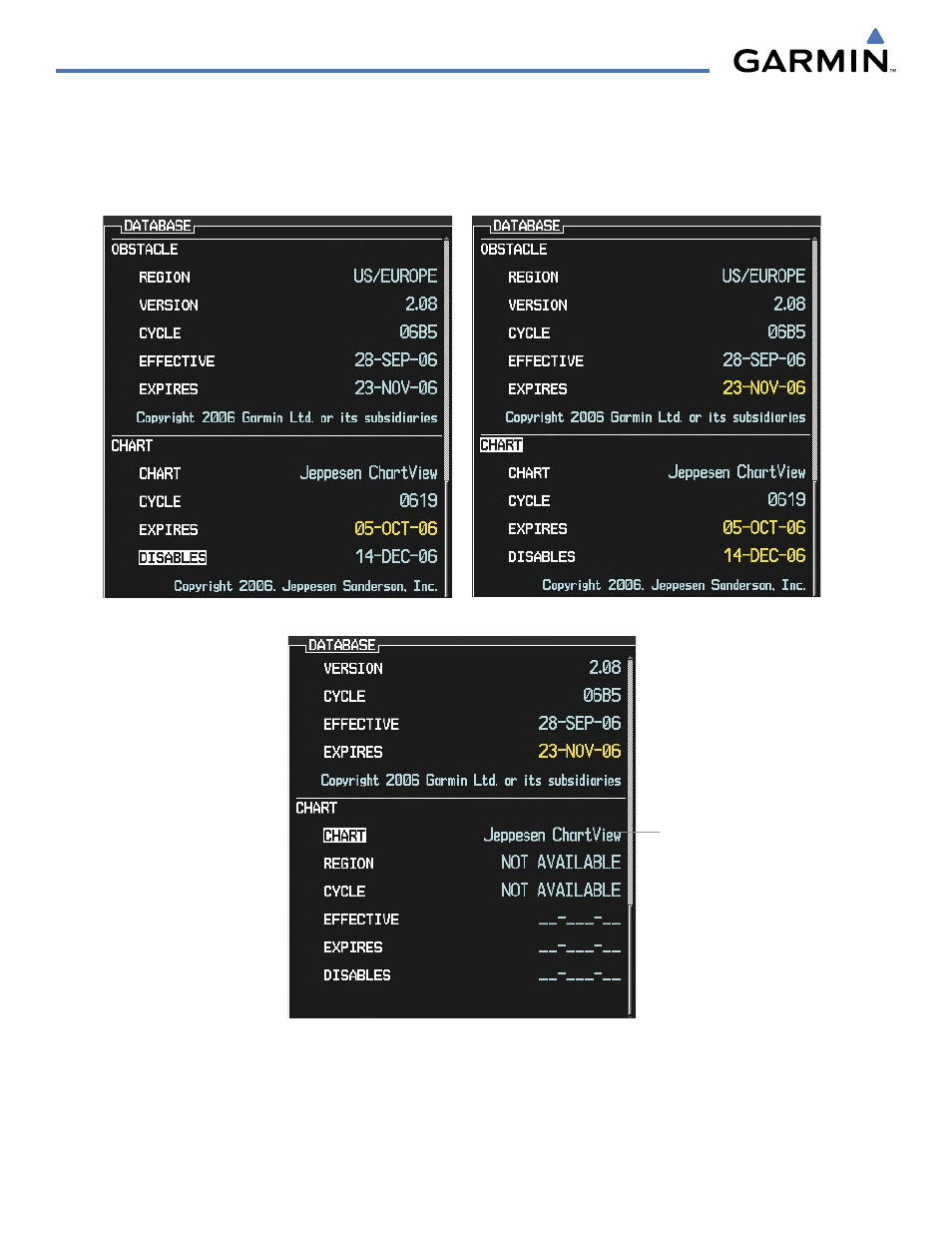

Figure 8-34 AUX – System Status Page, ChartView Expired, ChartView Disabled, ChartView Not Available
ChartView Database has Expired, but is not Disabled ChartView Database is Disabled
ChartView Database is Not Available
System is
Configured for
ChartView but
Database is not
Available
